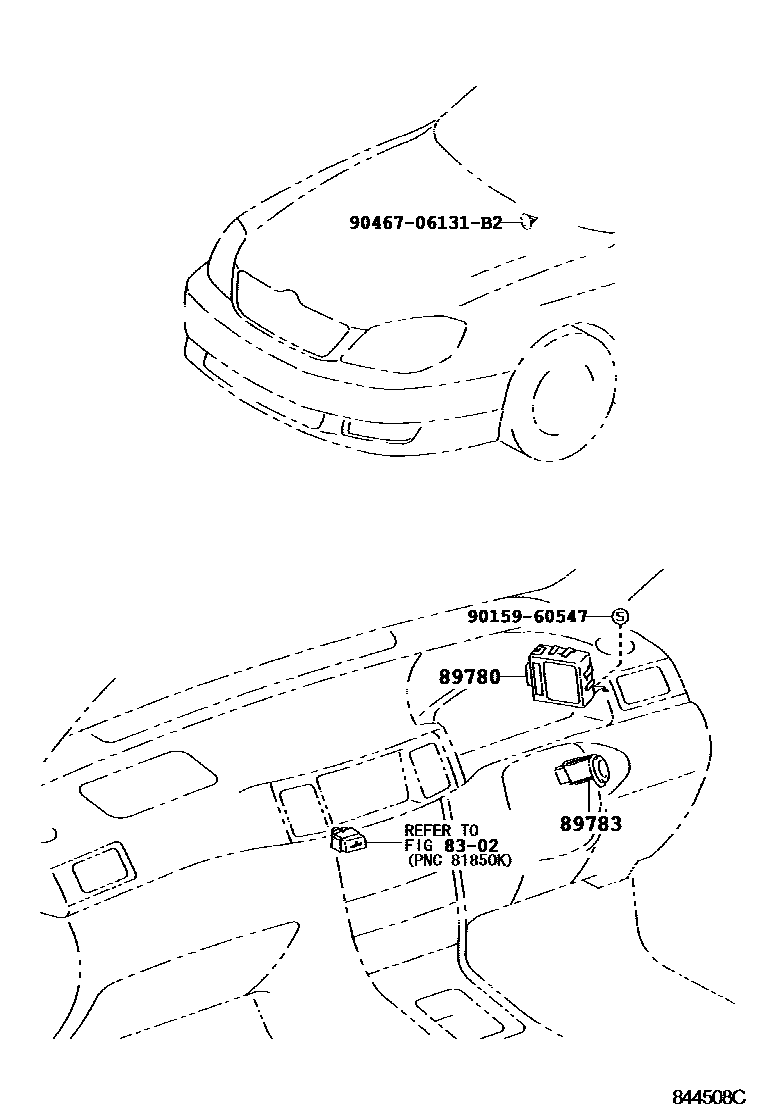

Toyota COROLLA SED/WG (JPP) — ANTI-THEFT DEVICE

0001 1 0002 1 0003 1

8302

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-12130iCDE120..JPP..RHD200110-200405

main89780-12140iNDE120,ZZE121..JPP..LHD200110-200405

main89780-12160iZZE121..JPP..RHD200405

89783AMPLIFIER, TRANSPONDER KEY

main89783-02020iNDE120,ZZE12#..JPP200405

main89783-52010iCDE120,ZZE12#..JPP..WG200110-200405

9015960547

main90159-60547

9046706131B2

main90467-06131B2

5 parts on this diagram · 3 diagrams in section
