Toyota COROLLA SED (NAP) — PRE-COLLISION SYSTEM

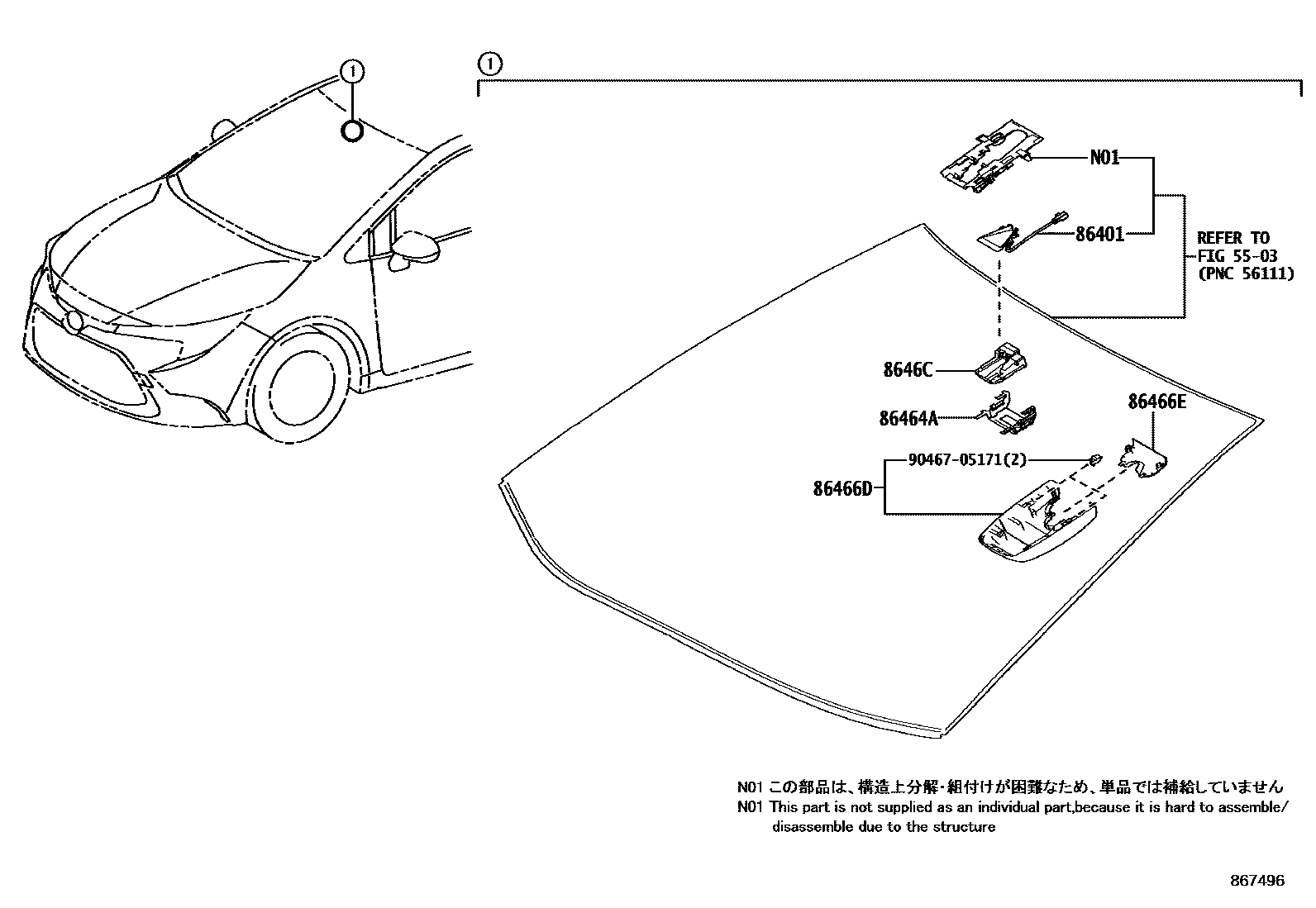

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010i202007-202011

main86401-12011i202011-202211

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201903-202007

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-02040i202211

main86466-12030i201903-202007

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040i201903-202007

main86467-02020i202410

8646CCAMERA, FORWARD RECOGNITION

main8646C-02020i201903-202007

main8646C-02021i202011-202211

main8646C-02040i202211-202410

*614

main8646C-02080i202410

*614

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota COROLLA SED (NAP)

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota COROLLA SED (NAP). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
