Toyota COROLLA SED/LB — SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A,10A
15A,15A
20A,YELLOW,20A
7.5A,7.5A
82616PULLER, FUSE
82660BLOCK ASSY, RELAY, ENGINE ROOM
main82660-12160iAE80,CE80;EE80..RHD;EE80..LHD..(3FC,4F);AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,SDZ);EE80..LHD..5F..(EUG,SDZ);EE80..LHD..5F..(GEN,SAA);AE82..CS,CSX,GT,S,SE,STD,XL198409-198807
*FRG
FRG SPEC
82661COVER, RELAY BLOCK, NO.1
main82661-12040iAE80,CE80;EE80..RHD;EE80..LHD..(3FC,4F);AE82..(DX,GL)..(GEN,SA);AE82..(DX,GL)..(EUG,SDZ);EE80..LHD..5F..(EUG,SDZ);EE80..LHD..5F..(GEN,SAA);AE82..CS,CSX,GT,S,SE,STD,XL198409-198807
ENGINE ROOM
ENGINE ROOM
ENGINE ROOM,*FRG
COWL SIDE
COWL SIDE
82690RESISTOR ASSY, DIM DIP LAMP
ENGLAND SPEC
82697COVER, DIM-DIP LAMP RESISTOR
ENGLAND SPEC
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85430VALVE, OUTER VENT CONTROL
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
TAIL & HEAD
85925RELAY, RADIATOR FAN
85926RELAY, HEADLAMP DIMMER
*FRG
88630GRELAY ASSY, COOLER
FRENCH TERRITORY SPEC
88630HRELAY ASSY, COOLER
FRENCH TERRITORY SPEC
89428SWITCH, TEMPERATURE DETECT, NO.2
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
8269620010BRACKET, DIM-DIP LAMP RESISTOR
main82696-20010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9011906053
main90119-06053
9015950208
main90159-50208
9017906115
main90179-06115
9043018007
main90430-18007
9165140612
main91651-40612
9165140620
main91651-40620

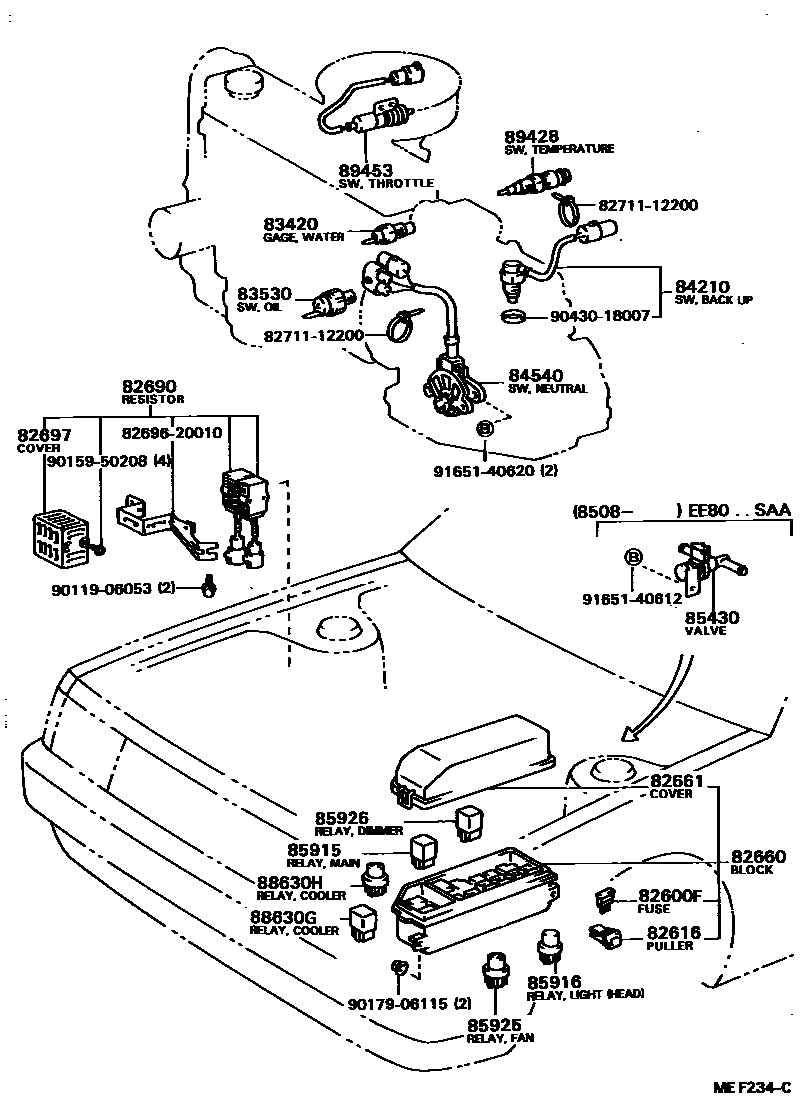

27 parts on this diagram · 7 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota COROLLA SED/LB
This section contains 147 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA SED/LB. Key components include: ALTERNATOR, RELAY, BULB CHECK, TIMER, PREHEATING, BLOCK, HEATER, RELAY ASSY, INTAKE HEATER OR GLOW PLUG.
