Toyota COROLLA SED/LB — PARTIAL ENGINE ASSEMBLY

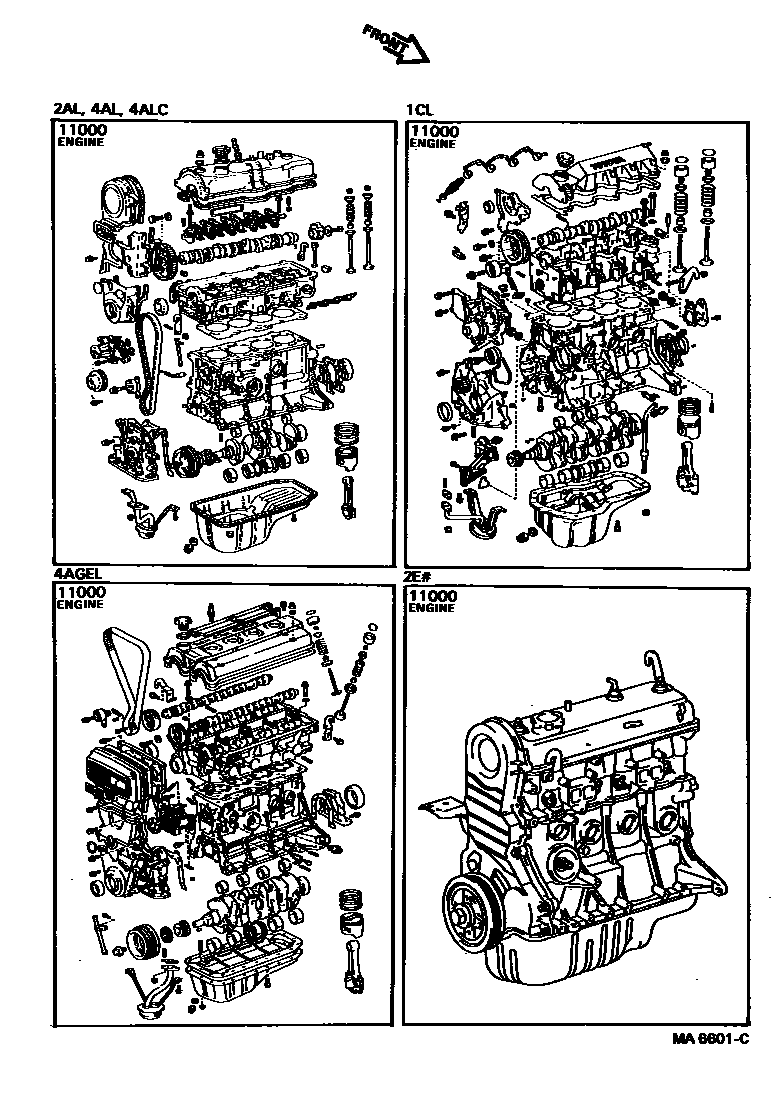

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-11120i198410-198604

main19000-11121i198604-198704

main19000-11130i198410-198604

main19000-11131i198604-198807

main19000-14070i198305-198505

main19000-16030i198305-198505

main19000-16040i198305-198807

main19000-16050i198504-198505

FRG SPEC

main19000-16230i198410-198807

main19000-16240i198410-198704

main19000-16280i198505-198704

main19000-16290i198505-198704

main19000-16290i198509-198704

NEW ZEALAND SPEC

main19000-64040i198305-198307

main19000-64041i198307-198505

main19000-64180i198505-198608

main19000-64181i198608-198704

main19000-64200i198505-198608

main19000-64201i198608-198704

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota COROLLA SED/LB

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota COROLLA SED/LB. Key components include: ENGINE ASSY, PARTIAL.
