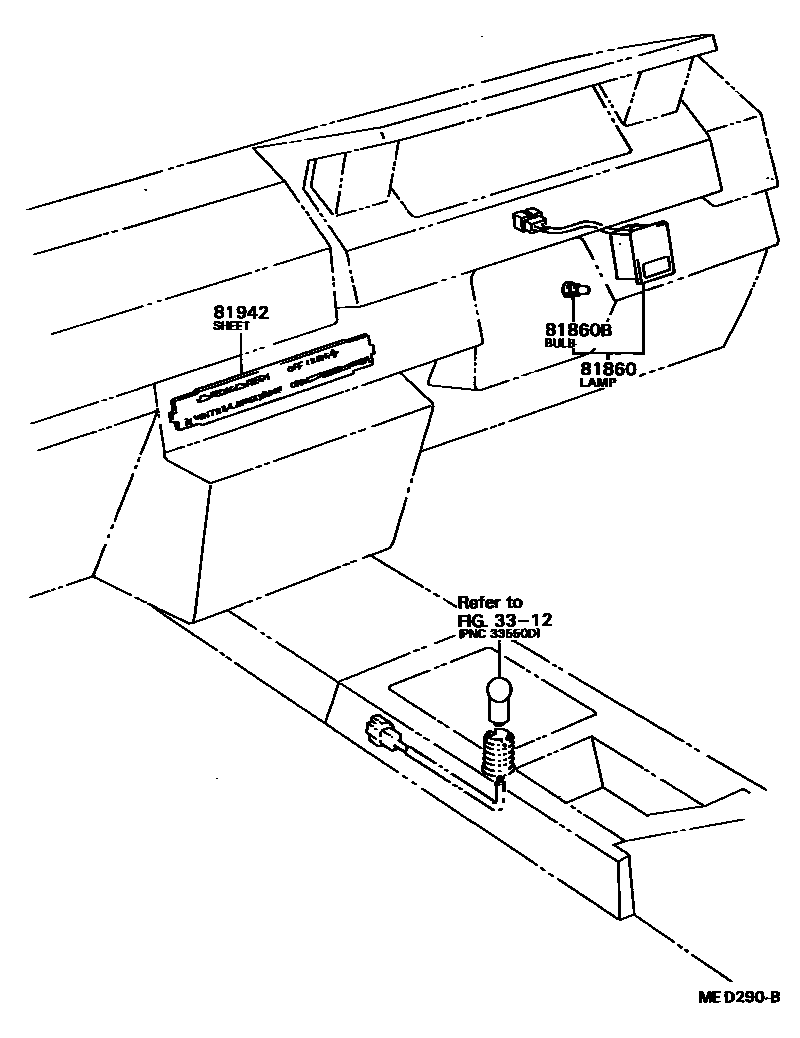

Toyota COROLLA SED/LB — INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12020i198402-198807

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2i198402-198807

12V 1.12W,12V 1.12W

81942SHEET, HEATER CONTROL NAME

main81942-12070i198305-198408

W/HEATER

main81942-12071i198505-198605

W/HEATER

main81942-12080i198305-198408

W/BOOST VENTILATOR

main81942-12081i198408-198505

W/BOOST VENTILATOR

main81942-12090i198305-198408

W/HEATER

main81942-12091i198408-198505

W/HEATER

main81942-12110i198305-198408

W/BOOST VENTILATOR

main81942-12111i198408-198505

W/BOOST VENTILATOR

main81942-12120i198408-198505

W/HEATER & COOLER

main81942-12150i198605-198804

W/HEATER

main81942-12160i198511-198807

W/HEATER

main81942-12170i198505-198704

W/BOOST VENTILATOR; W/HEATER & COOLER

main81942-12180i198505-198707

W/HEATER

main81942-12190i198505-198707

W/HEATER & COOLER

main81942-12200i198505-198707

W/BOOST VENTILATOR

4 parts on this diagram · 1 diagram in section

INDICATOR for Toyota COROLLA SED/LB

This section contains 4 genuine Toyota parts for the INDICATOR system of the Toyota COROLLA SED/LB. Key components include: SHIFT LEVER & RETAINER, LAMP ASSY, TRANSMISSION INDICATOR, BULB, TRANSMISSION INDICATOR LAMP, SHEET, HEATER CONTROL NAME.
