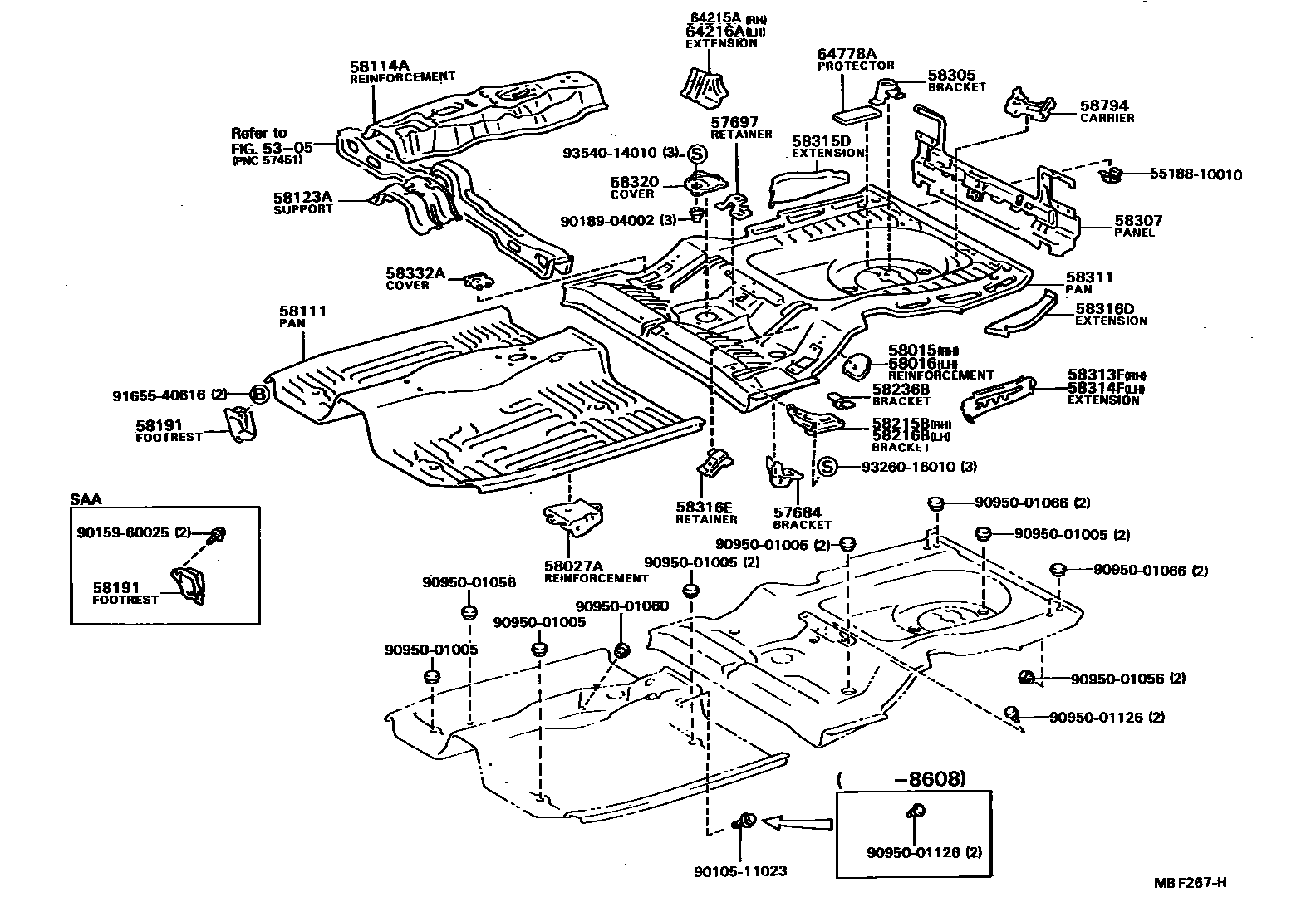

Toyota COROLLA SED/LB — FLOOR PAN & LOWER BACK PANEL
5305FLOOR SIDE MEMBER
57684BRACKET, FUEL TANK, REAR
RH
LH
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58191FOOTREST, FRONT FLOOR
main58191-12060iEE80..RHD..GEN;AE82..RHD..GL..GEN;AE82..(5D,5DS)..4FC..ARL;AE82..RHD..(3FC,5F)..(CSX,GT,XL)198505-198807
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
*GIS
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
*GIS
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58316ERETAINER, REAR SEAT SET
58320COVER, REAR FLOOR SERVICE HOLE
58332ACOVER, REAR FLOOR SIDE SERVICE HOLE
RH
LH
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64778APROTECTOR, SPARE WHEEL
5518810010BRACKET, UNDER TRAY SUPPORT
main55188-10010
9010511023
main90105-11023
9015960025
main90159-60025
9018904002
main90189-04002
9095001005
main90950-01005
9095001056
main90950-01056
9095001060
main90950-01060
9095001066
main90950-01066
9095001126
main90950-01126
9165540616
main91655-40616
9326016010
main93260-16010
9354014010
main93540-14010
39 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA SED/LB
This section contains 44 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA SED/LB. Key components include: FLOOR SIDE MEMBER, BRACKET, EXHAUST PIPE MOUNTING, NO.2, BRACKET, FUEL TANK, REAR, RETAINER, REAR SEAT CUSHION, REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH.
