Toyota COROLLA SED/LB — HEATING & AIR CONDITIONING - SET

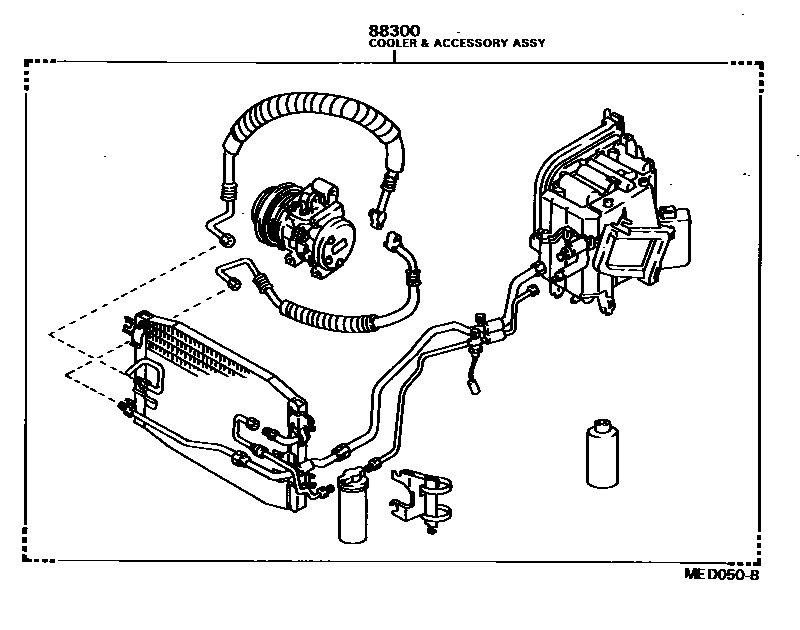

88300COOLER & ACCESSORY ASSY

main88300-1E550i198305-198505

BOOST VENTILATOR ONLY

main88300-1E560i198305-198505

BOOST VENTILATOR ONLY

main88300-1E570i198305-198505

BOOST VENTILATOR ONLY

main88300-1E580i198305-198505

BOOST VENTILATOR & PS

main88300-1E730i198505-198605

main88300-1E740i198305-198505

main88300-1E850i198305-198505

W/PS

main88300-1E860i198305-198505

main88300-1H330i198505-198605

main88300-1H340i198410-198605

W/PS

main88300-1H350i198410-198505

main88300-1H360i198410-198505

BOOST VENTILATOR ONLY

main88300-1H370i198410-198505

BOOST VENTILATOR ONLY

main88300-1H380i198410-198505

main88300-1H400i198410-198505

BOOST VENTILATOR ONLY

main88300-1H420i198411-198511

main88300-1H421i198511-198605

main88300-1H430i198404-198410

FRENCH TERRITORY SPEC

main88300-1H440i198404-198505

FRENCH TERRITORY SPEC

main88300-1H450i198404-198505

FRENCH TERRITORY SPEC,W/PS

main88300-1H460i198404-198505

FRENCH TERRITORY SPEC,W/O PS

main88300-1H470i198410-198505

FRENCH TERRITORY SPEC

main88300-1H480i198410-198505

FRENCH TERRITORY SPEC

main88300-1H830i198605-198807

W/PS

main88300-1H850i198605-198807

main88300-1K240i198505-198508

FRENCH TERRITORY SPEC

main88300-1K241i198508-198704

FRENCH TERRITORY SPEC

main88300-1K250i198505-198704

BOOST VENTILATOR ONLY

main88300-1K260i198505-198704

main88300-1K270i198505-198704

BOOST VENTILATOR ONLY

main88300-1K320i198505-198604

FRENCH TERRITORY SPEC

main88300-1K321i198604-198704

FRENCH TERRITORY SPEC

main88300-1K490i198505-198604

main88300-1K491i198604-198704

main88300-1K500i198505-198604

BOOST VENTILATOR ONLY

main88300-1K501i198604-198704

BOOST VENTILATOR ONLY

main88300-1K530i198505-198604

main88300-1K531i198604-198704

main88300-1K540i198505-198604

BOOST VENTILATOR ONLY

main88300-1K541i198604-198704

BOOST VENTILATOR ONLY

main88300-1K550i198505-198508

main88300-1K551i198508-198704

main88300-1K560i198505-198508

BOOST VENTILATOR

main88300-1K561i198508-198704

BOOST VENTILATOR

main88300-1K570i198505-198508

main88300-1K571i198605-198804

main88300-1K580i198505-198508

BOOST VENTILATOR

main88300-1K581i198508-198704

BOOST VENTILATOR

main88300-1K590i198505-198508

main88300-1K591i198508-198704

main88300-1K600i198505-198508

BOOST VENTILATOR

main88300-1K601i198508-198704

BOOST VENTILATOR

main88300-1K610i198505-198508

main88300-1K611i198508-198704

main88300-1K620i198505-198508

BOOST VENTILATOR

main88300-1K621i198508-198704

BOOST VENTILATOR

main88300-1K630i198505-198704

W/PS

main88300-1K640i198505-198704

BOOST VENTILATOR,W/PS

main88300-1K650i198505-198704

main88300-1K660i198505-198704

BOOST VENTILATOR

main88300-1K880i198505-198704

FRENCH TERRITORY SPEC,W/O PS

main88300-1K890i198505-198704

FRENCH TERRITORY SPEC,W/PS

main88300-1L010i198605-198804

main88300-1L020i198505-198704

W/PS

main88300-1L030i198505-198704

BOOST VENTILATOR ONLY,W/PS

main88300-1L060i198605-198807

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota COROLLA SED/LB

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota COROLLA SED/LB. Key components include: COOLER & ACCESSORY ASSY.
