Toyota COROLLA SED/LB/WG — PARTIAL ENGINE ASSEMBLY

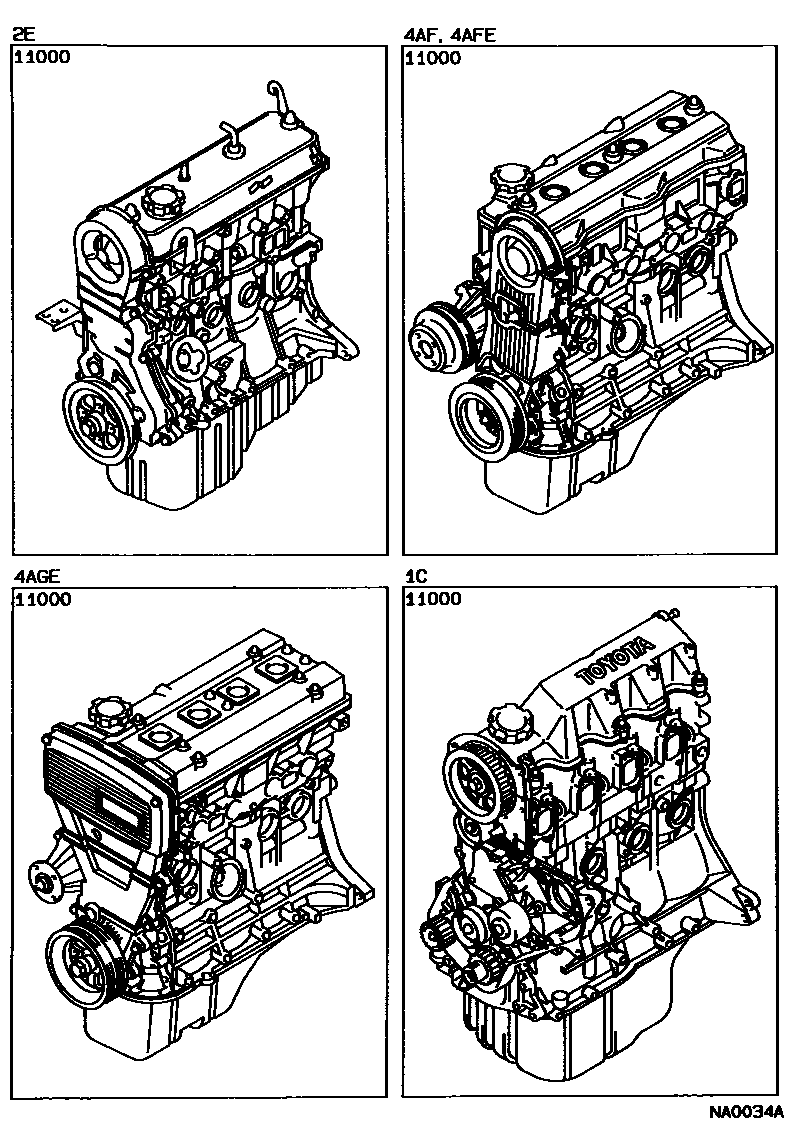

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-11230i198908-199308

main19000-11240i198705-198908

NEW ZEALAND SPEC

main19000-11330i198908-199205

NEW ZEALAND SPEC

main19000-11350i198908-199207

main19000-16370i198705-198908

main19000-16410i198908-199205

main19000-16501i198908-199202

NEW ZEALAND SPEC & W(HOT AIR INTAKE); NEW ZEALAND SPEC & W(HOT AIR INTAKE) OR SINGAPORE SPEC & W(HOT AIR INTAKE); SINGAPORE SPEC & W(HOT AIR INTAKE)

main19000-16550i198710-198911

main19000-16551i198911-199004

main19000-16552i199004-199009

main19000-16590i198802-198908

main19000-16591i198908-198911

main19000-16592i198911-199004

main19000-16593i199004-199009

main19000-16610i198911-199205

MIDDLE EAST SPEC

main19000-16840i198908-198911

main19000-16841i199101-199308

main19000-16910i198908-199001

main19000-1A020i199001-199211

main19000-64390i198705-198712

main19000-64420i198712-198908

main19000-64500i198908-199008

main19000-64501i199008-199110

main19000-64502i199110-199205

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota COROLLA SED/LB/WG

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota COROLLA SED/LB/WG. Key components include: ENGINE ASSY, PARTIAL.
