Toyota COROLLA SED (JPP) — WINDSHIELD WASHER

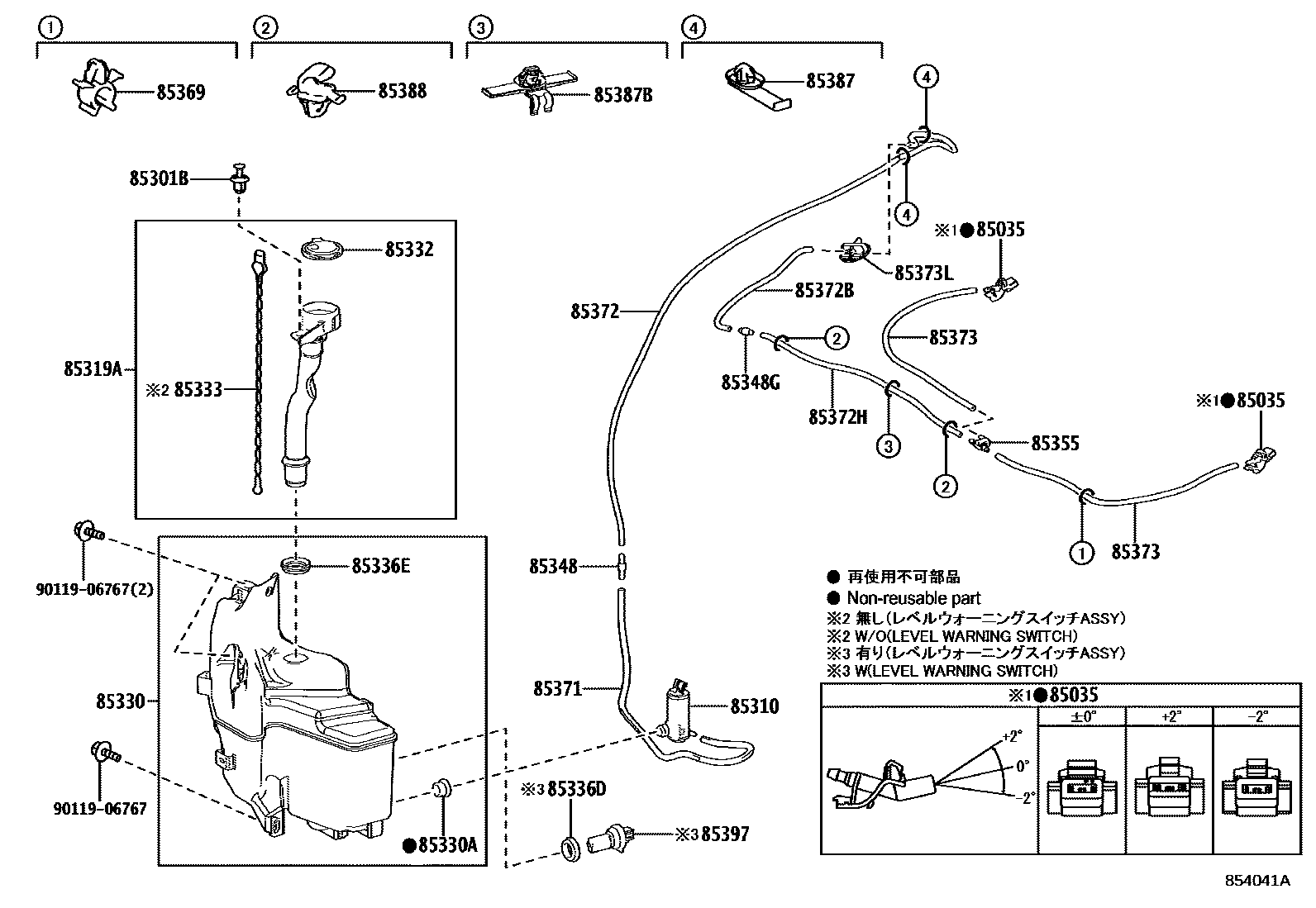

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-12360×2i201901-202004
ANGLE 0
main85381-12440×2i202209-202409
ANGLE +2
main85381-33080×2i202209
ANGLE -2
85301BCLIP, WASHER
main90467-07214i202409
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-33070i202409
85319AHOSE, INLET
main85301-12030i202004-202208
main85301-12050i202409
main85301-12040i201901-202004
LIGHT GRADE PACKAGE
85330JAR ASSY, WINDSHIELD WASHER
main85315-12720i202409
main85315-12730i202209
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202409
85332CAP, WINDSHIELD WASHER JAR
main85386-60050i202004-202208
85333FILTER, WINDSHIELD WASHER JAR
main85312-47020i202409
85336DPACKING, WINDSHIELD WASHER JAR
main85319-33230i202409
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202409
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i202209
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i202409
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020i202409
85369CLAMP
main90469-07011i202409
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i202409
L=1450(*H,L=500)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-62176i202409
L=1090
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i202409
L=1450(*H,L=280)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i202409
L=1450(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i202409
L=465
85373LGROMMET, WASHER
main85373-12050i202409
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main82711-52090×2i202409
85387BCLAMP, WASHER, NO.3
main82711-35750i202409
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85371-12040×2i202409
85397SWITCH ASSY,LEVEL WARNING
main85397-30400i202409
9011906767
main90119-06767

25 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA SED (JPP)

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA SED (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
