Toyota COROLLA SED (JPP) — PARTIAL ENGINE ASSEMBLY

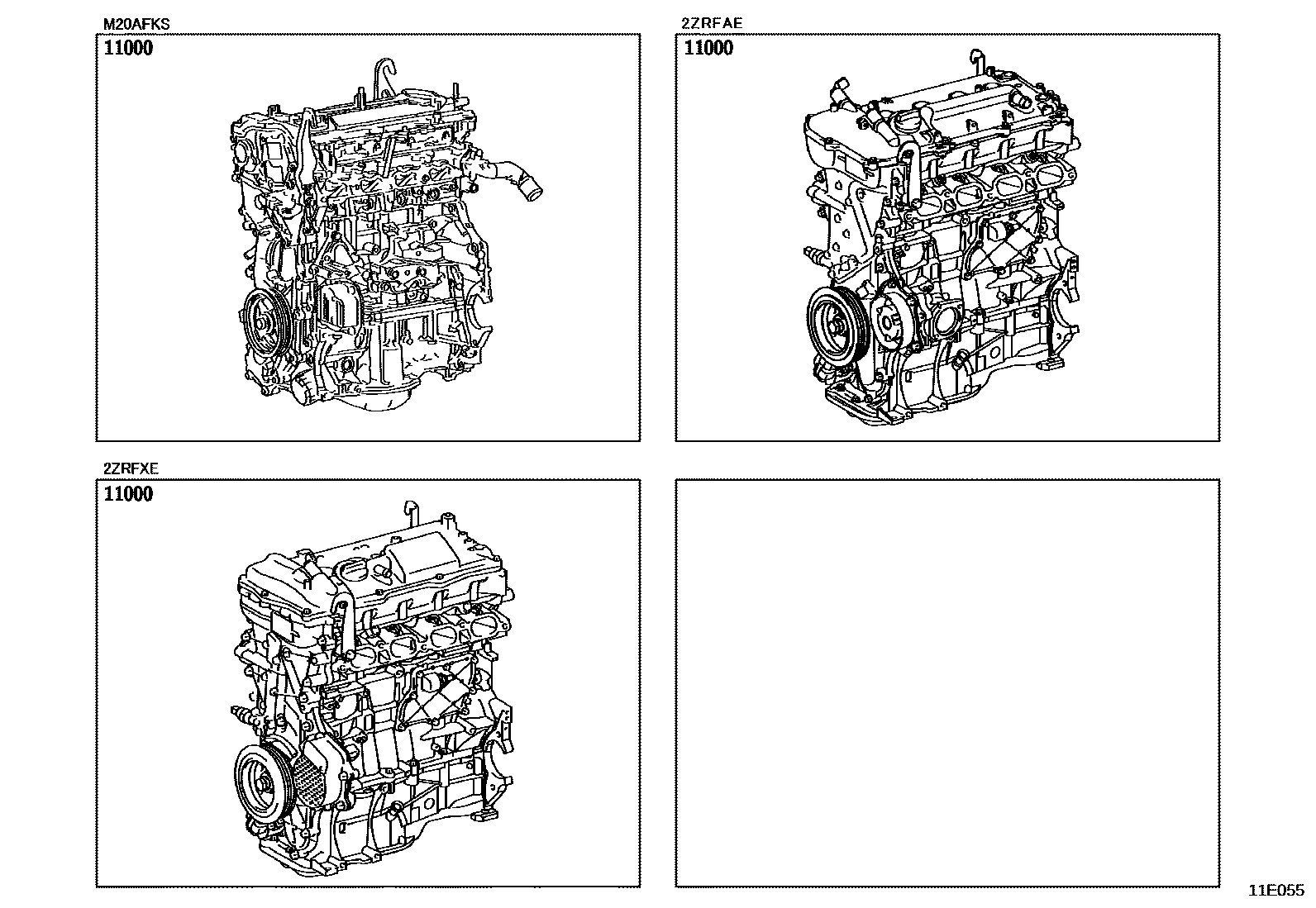

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-24300i202004-202208
main19000-24420supersedes 19000-24410i202308-202408
main19000-2U020i202409
main19000-37850i202004-202110
sub16281-37190
sub25601-37050
main19000-37860i202004-202208
main19000-37A00i202003-202004
sub19000-37B30
sub16281-37190
sub25601-37050
main19000-37B20i202110-202208
main19000-37B70i202209-202409
main19000-3V010i202409

1 parts on this diagram · 1 diagram in section
