Toyota COROLLA SED (JPP) — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

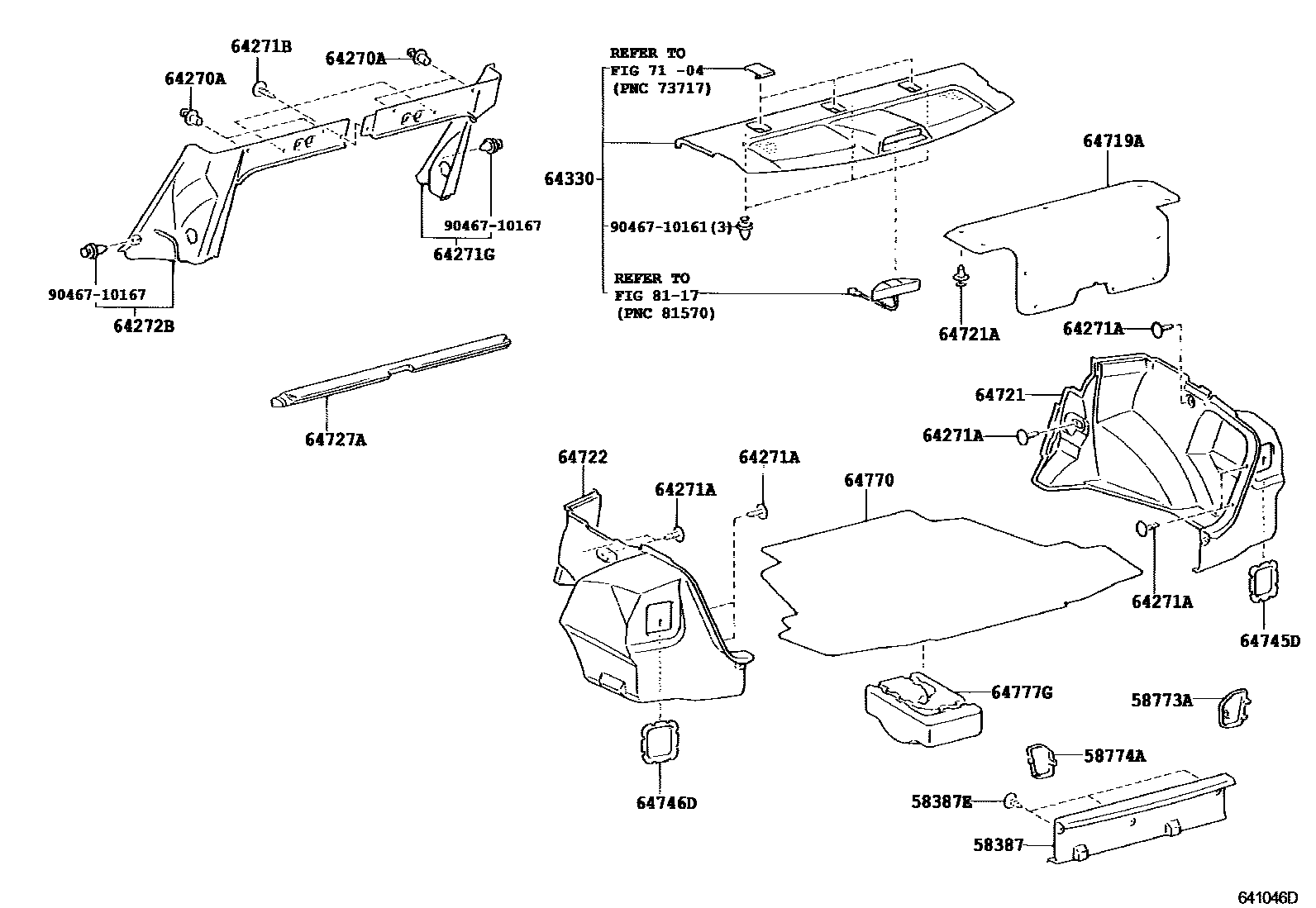

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-02050-B0i200405
DK.GRAY,TRIM1#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-05161-C0×3i200204-200405
BLACK,TRIM1#,4#
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
main58773-02050-B0i200204-200405
DK.GRAY,TRIM1#,4#
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
main58774-02040-B0i200204-200405
DK.GRAY,TRIM1#,4#
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
main90467-07191-B1×4i200204-200405
STONE,TRIM1#
main90467-07191-E0×4i200405
MD.NEUTRAL BONE,TRIM4#
64271ARETAINER, ROOM PARTITION BOARD
main90467-05161-C0×8i200204-200405
BLACK,TRIM1#,4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-07191-B1×3i200405
STONE,TRIM1#
main90467-07191-E0×3i200405
MD.NEUTRAL BONE,TRIM4#
64271GBOARD, ROOM PARTITION, RH
main64271-02070-B0i200206-200307
STONE,TRIM1#,(L)
main64271-02070-E0i200206-200307
MD.NEUTRAL BONE,TRIM4#,(L)
main64271-12190-B0i200206-200307
STONE,TRIM1#,(J)
main64271-12190-E0i200206-200307
MD.NEUTRAL BONE,TRIM4#,(J)
main64271-12200-B0i200307-200405
STONE,TRIM1#
main64271-12200-E0i200405
MD.NEUTRAL BONE,TRIM4#
64272BBOARD, ROOM PARTITION, LH
main64272-02040-B0i200206-200307
STONE,TRIM1#,(L)
main64272-02040-E0i200206-200307
MD.NEUTRAL BONE,TRIM4#,(L)
main64272-12110-B0i200206-200307
STONE,TRIM1#,(J)
main64272-12110-E0i200206-200307
MD.NEUTRAL BONE,TRIM4#,(J)
main64272-12120-B0i200405
STONE,TRIM1#
main64272-12120-E0i200307-200405
MD.NEUTRAL BONE,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-02320-B0i200204-200307
STONE,TRIM1#
main64330-02320-E0i200204-200307
MD.NEUTRAL BONE,TRIM4#
main64330-02321-B0i200307-200405
STONE,TRIM1#
main64330-02321-E0i200307-200405
MD.NEUTRAL BONE,TRIM4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-02040-C0i200204-200405
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-02120-C0i200204-200207
BLACK,TRIM1#,4#
main64721-12220-C0i200207-200405
BLACK,TRIM1#,4#,(J)
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-22×10i200409
BLACK
main90467-05165-B0×10i200204-200405
DK.GRAY,TRIM1#,4#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-02110-C0i200204-200207
BLACK,TRIM1#,4#
main64722-12250-C0i200207-200405
BLACK,TRIM1#,4#,(J)
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
main64727-02020i200204-200405
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
main64745-02090-C0i200207-200405
BLACK,TRIM1#,4#,(L)
main64745-12140-C0i200207-200405
BLACK,TRIM1#,4#,(J)
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
main64745-02090-C0i200207-200405
BLACK,TRIM1#,4#,(L)
main64745-12140-C0i200207-200405
BLACK,TRIM1#,4#,(J)
64770COVER ASSY, SPARE WHEEL
main64771-02150-C0i200204-200405
BLACK,TRIM1#,4#
64777GCUSHION, SPARE WHEEL
main64777-12040i200204-200405
8117CENTER STOP LAMP
→ Go to FIG 81-17
9046710161
main90467-10161
9046710167
main90467-10167

22 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA SED (JPP)

This section contains 22 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA SED (JPP). Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), COVER, LUGGAGE COMPARTMENT SIDE, RH, COVER, LUGGAGE COMPARTMENT SIDE, LH, CLIP(FOR ROOM PARTITION BOARD SETTING).
