Toyota COROLLA SED (JPP) — METER

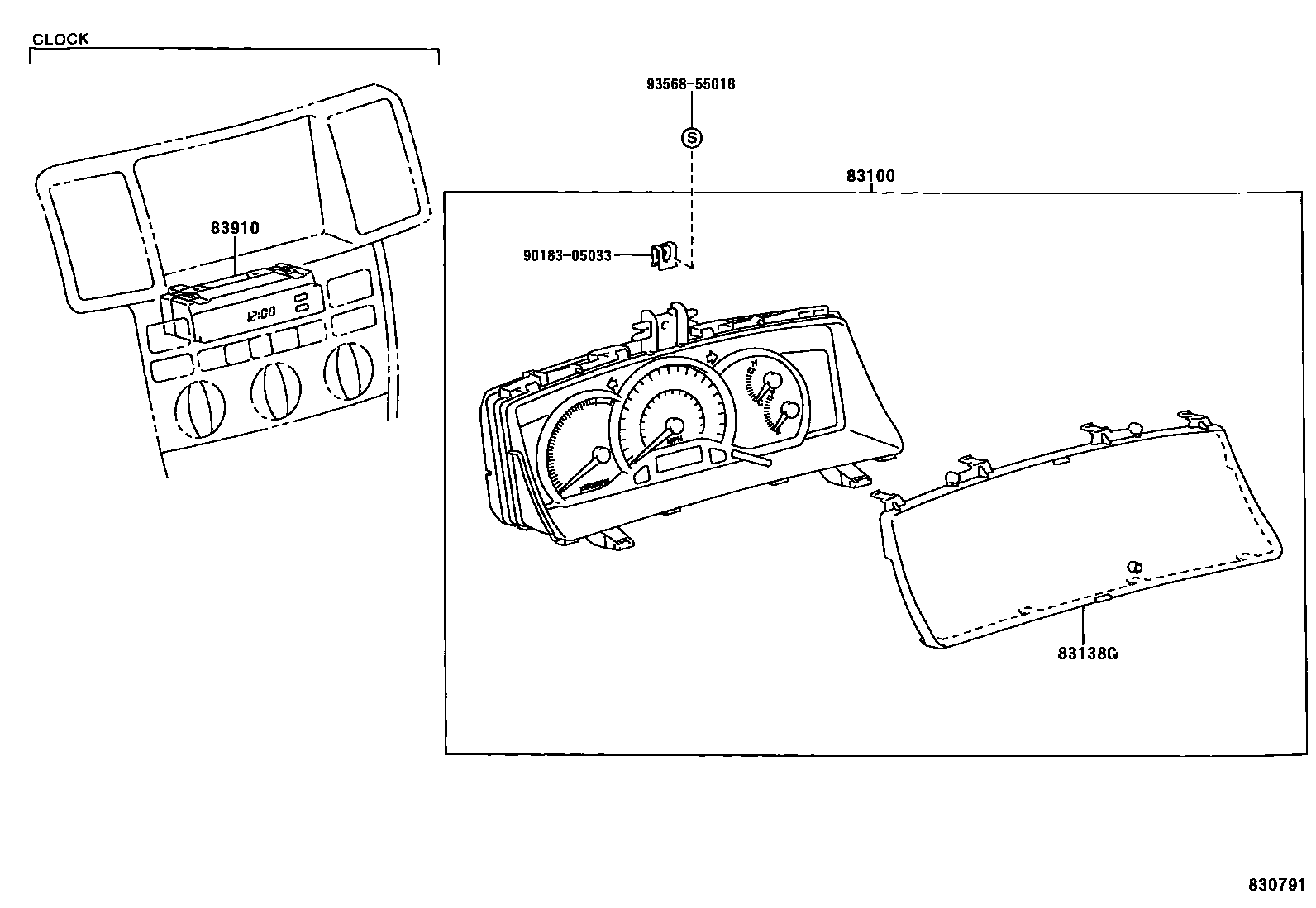

Parts diagram

83100METER ASSY, COMBINATION

main83800-02680i200204-200405

main83800-02690i200204-200405

main83800-02710i200304-200405

main83800-02720i200304-200405

main83800-02D40i200405-200706

main83800-02D90i200405-200706

83138GGLASS, COMBINATION METER

main83852-02680i200204-200405

main83852-02D90i200405

SMOKE TYPE

83910CLOCK ASSY

main83910-02070i200204-200405

9018305033

main90183-05033

9356855018

main93568-55018

5 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA SED (JPP)

This section contains 5 genuine Toyota parts for the METER system of the Toyota COROLLA SED (JPP). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
