Toyota COROLLA SED (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

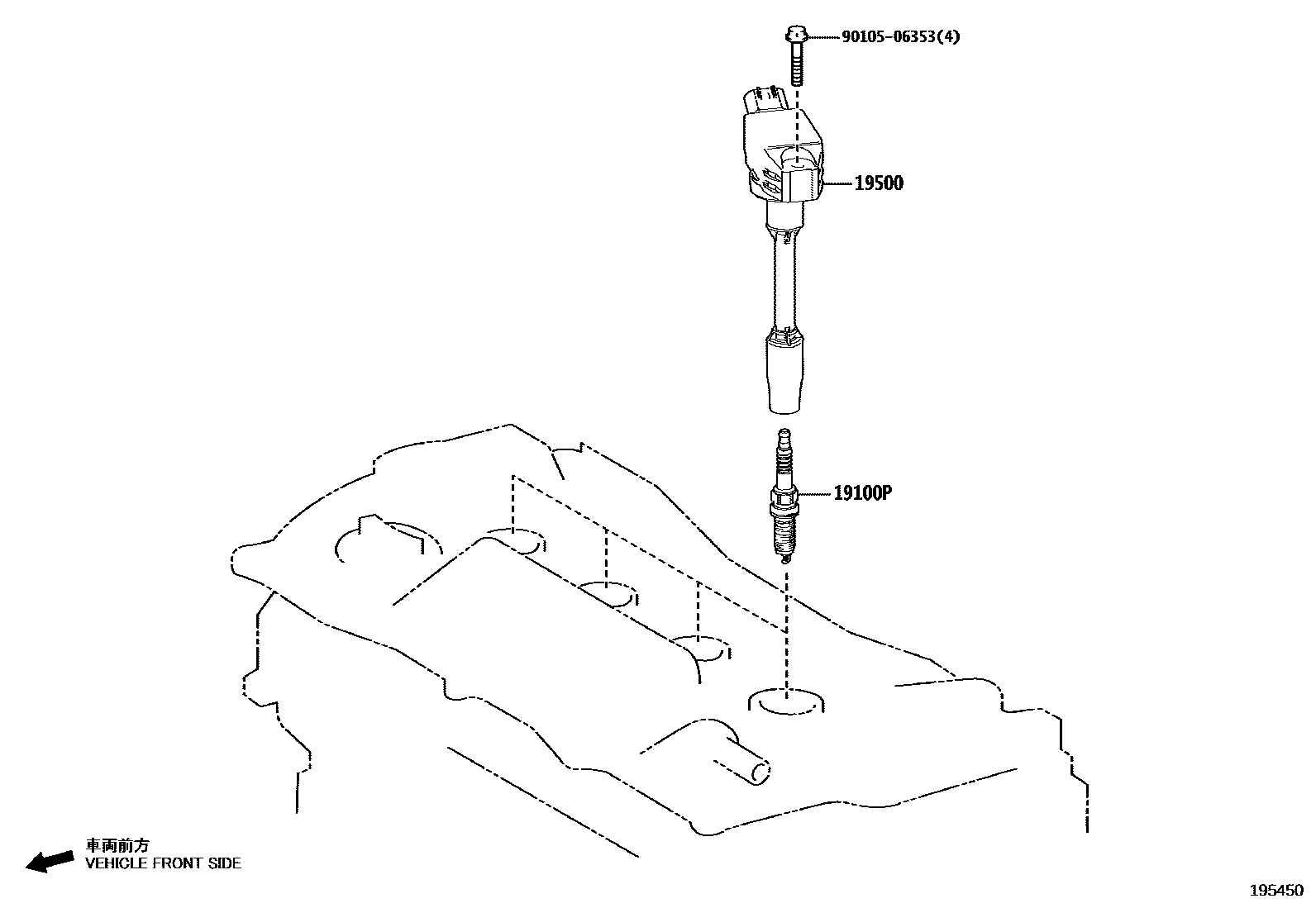

Parts diagram
19100PPLUG, SPARK
main90919-01289×4i201901-202004
FC16HR-Q8
main90919-01297×4i202209
FC20HR-Q8
main90919-01298×4i202004-202208
FC16HR-CY9
19500COIL ASSY, IGNITION
main90919-02272×4i201901-202004
main90919-02276×4i202409
main90919-02277×4i202209-202409
9010506353
main90105-06353

3 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA SED (JPP)

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA SED (JPP). Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
