Toyota COROLLA SED (JPP) — FRONT BUMPER & BUMPER STAY

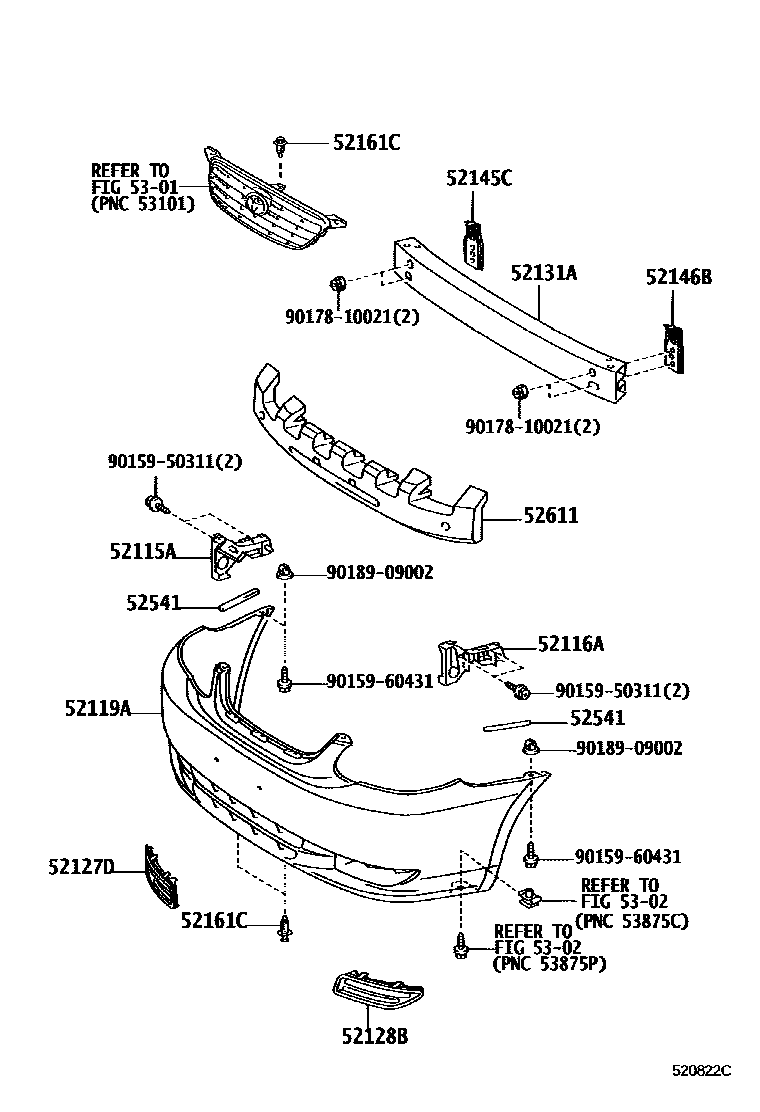

Parts diagram

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02060i200204-200403

main52115-02061i200403-200405

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02060i200204-200403

main52116-02061i200403-200405

52119ACOVER, FRONT BUMPER

main52119-12928i200405

PAINT REQ.

main52119-1E922i200204-200405

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-02070i200204-200405

main52127-02170i200405

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-02060i200204-200405

main52128-02200i200405

52131AREINFORCEMENT, FRONT BUMPER

main52021-12210i200405

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-02080i200204-200405

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-02070i200204-200405

52161CPIECE, FRONT BUMPER

main52161-16010×3i200204-200405

52541PROTECTOR, FRONT BUMPER

main52541-02020×2i200204-200405

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02070i200204-200405

main52611-12160i200405

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9015950311

main90159-50311

9015960431

main90159-60431

9017810021

main90178-10021

9018909002

main90189-09002

17 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota COROLLA SED (JPP)

This section contains 18 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COROLLA SED (JPP). Key components include: SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE, RH, COVER, FRONT BUMPER HOLE, LH.
