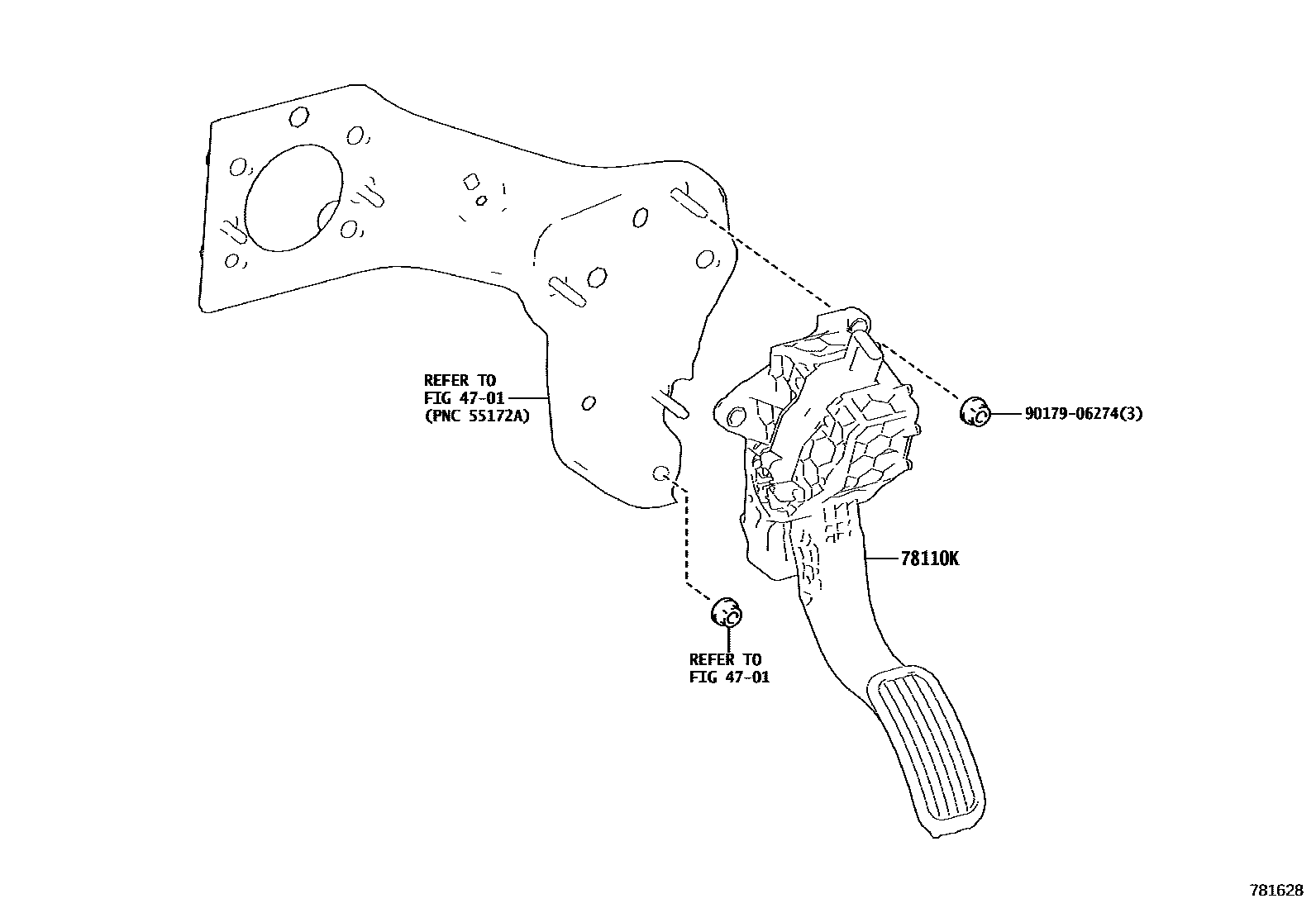

Toyota COROLLA SED (JPP) — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-12090i202004-202011

main78110-12091i202409-202507

main78110-12100i202004-202011

main78110-12101i202209-202409

9017906274

main90179-06274

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota COROLLA SED (JPP)

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA SED (JPP). Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
