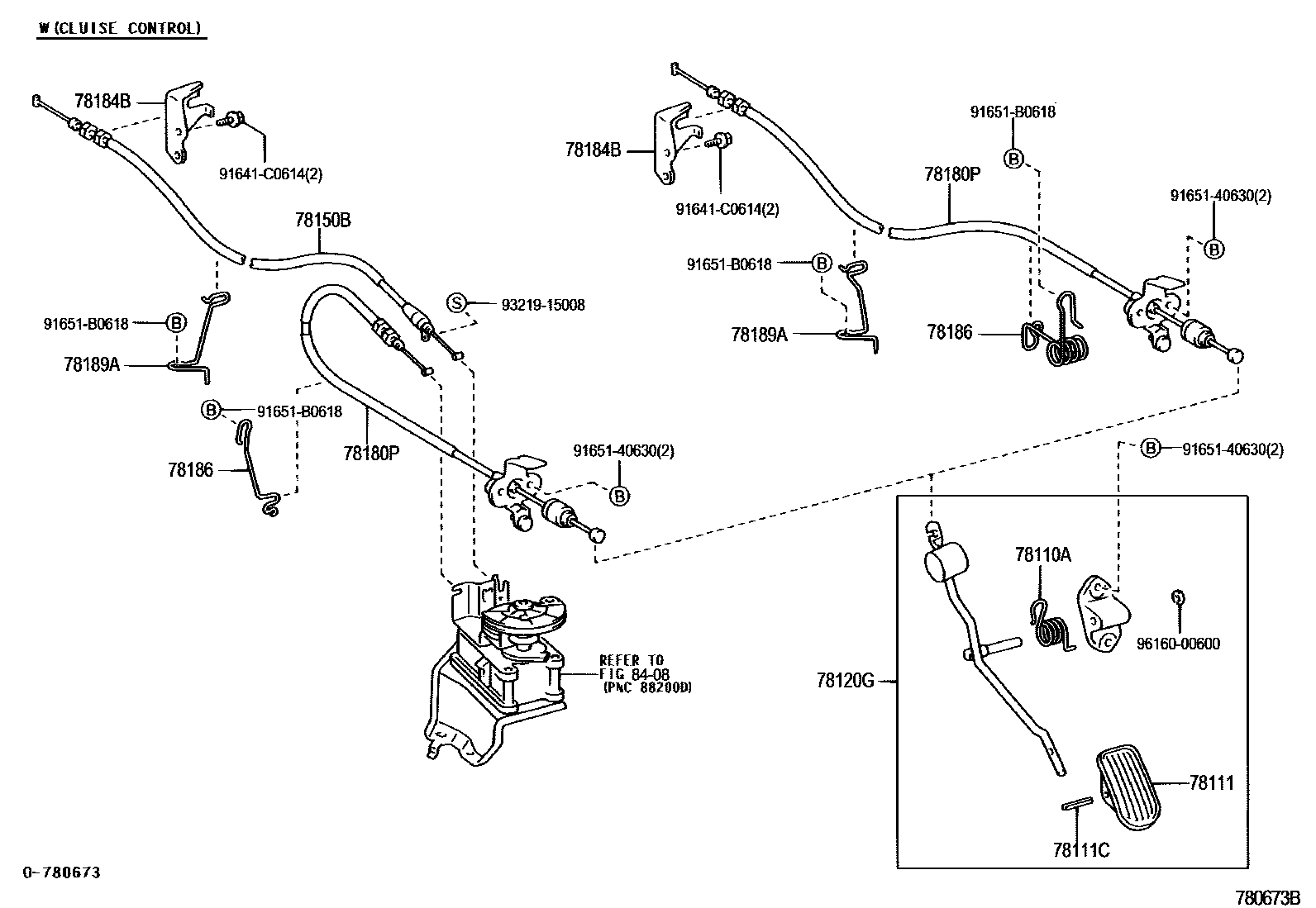

Toyota COROLLA SED (JPP) — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26036i200204-200405

main90959-03350i200204-200405

W(CRUISE CONTROL)

78111PEDAL, ACCELERATOR

main78111-20060i200204-200405

main78111-35030i200405

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200204-200405

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12310i200204-200405

main78120-12330i200204-200405

W(CRUISE CONTROL)

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-02040i200204-200405

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-02290i200204-200405

W(CRUISE CONTROL)

main78180-1A800i200204-200405

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360i200204-200405

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12380i200204-200405

main78186-12390i200204-200405

W(CRUISE CONTROL)

main78186-13040i200302-200405

PLANT NO.A31-A32

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100i200204-200405

main78189-12110i200204-200405

W(CRUISE CONTROL)

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

91641C0614

main91641-C0614

9165140630

main91651-40630

91651B0618

main91651-B0618

9321915008

main93219-15008

9616000600

main96160-00600

15 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota COROLLA SED (JPP)

This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA SED (JPP). Key components include: PEDAL ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL.
