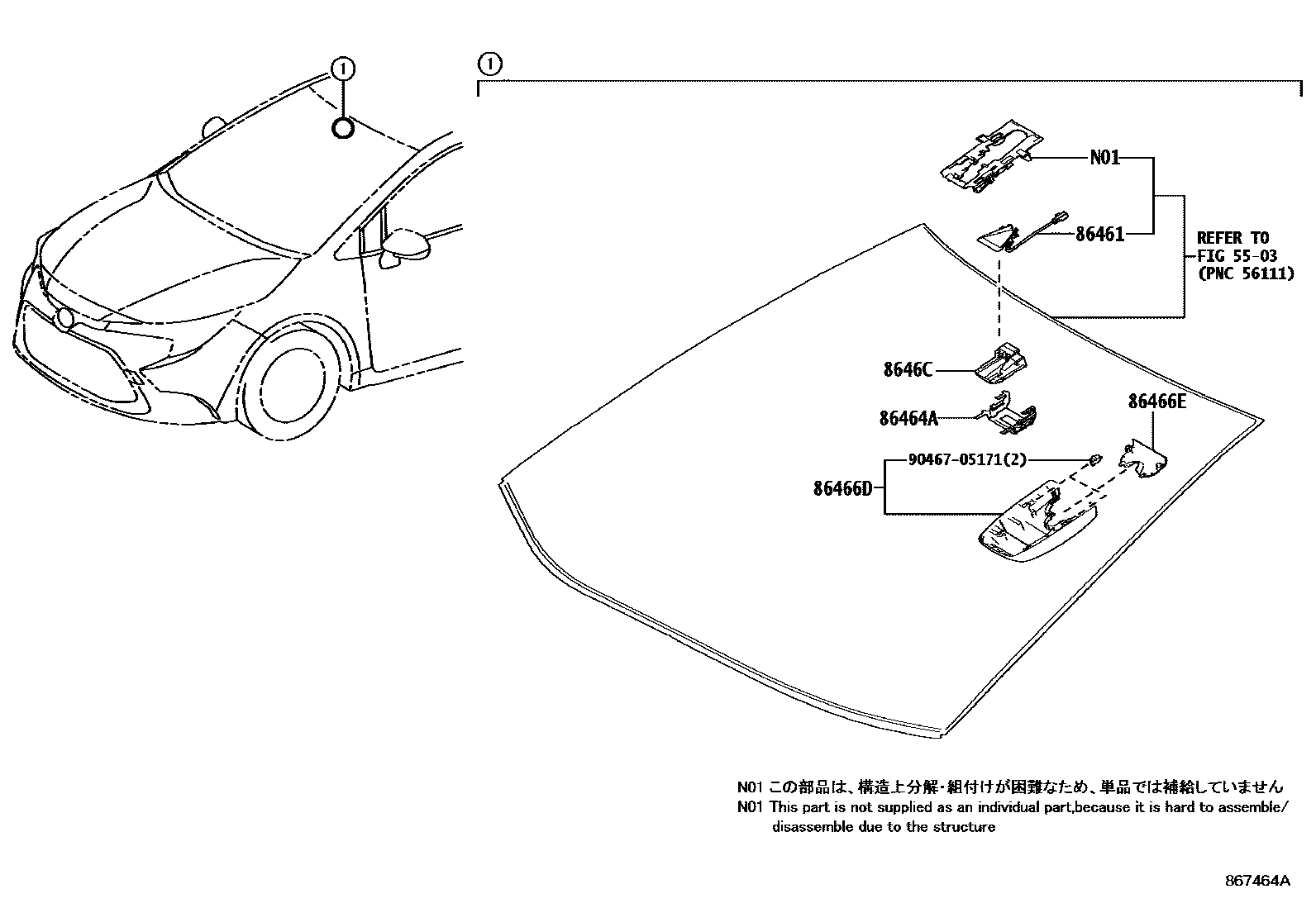

Toyota COROLLA SED (JPP) — PRE-COLLISION SYSTEM
5503COWL PANEL & WINDSHIELD GLASS
86461HOOD, FORWARD RECOGNITION
main86401-12010iZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZWE211..MXC201901-202004
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC
main86401-12011iMZEA12..L;MZEA12..6F; ZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZRE212..RHD; ZRE212..RHD..L; ZWE211..MXC202011-202208
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC; FIJI SPEC; SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; ACTIVE SAFETY PACKAGE-WITHOUT; MAURITIUS SPEC; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2
86464ALATCH, FORWARD RECOGNITION
main86464-26010iZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZWE211..MXC201901-202004
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-12030iMZEA12..L;MZEA12..6F; ZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZRE212..RHD; ZRE212..RHD..L; ZWE211..MXC202004-202208
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC; FIJI SPEC; SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
86466ECOVER, FORWARD RECOGNITION, NO.2
main86466-12040iZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZWE211..MXC201901-202004
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; ACTIVE SAFETY PACKAGE-WITHOUT; MAURITIUS SPEC; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2
8646CCAMERA, FORWARD RECOGNITION
main8646C-12010iZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZWE211..MXC201901-202004
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC
main8646C-12011iMZEA12..L;MZEA12..6F; ZRE212,ZWE211..CVT..(ARL,GEN); ZRE212..CVT;MZEA12,ZWE211..ARL; ZRE212..RHD; ZRE212..RHD..L; ZWE211..MXC202010-202208
CENTRAL AMERICA 1 SPEC; CENTRAL AMERICA 2 SPEC; FIJI SPEC; SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
main8646C-12110iMZEA1#,ZWE219..ARL,GEN; MZEA18,ZWE219..L..(ARL,GEN); ZWE219..ARL; ZWE219..MXC202209-202211
*614; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,*614; ACTIVE SAFETY PACKAGE-WITHOUT,*614; MAURITIUS SPEC,*614; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2,*614
*614; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,*614; ACTIVE SAFETY PACKAGE-WITHOUT,*614; MAURITIUS SPEC,*614; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2,*614
*614; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,*614; ACTIVE SAFETY PACKAGE-WITHOUT,*614; MAURITIUS SPEC,*614; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2,*614
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
9046705171
main90467-05171
7 parts on this diagram · 2 diagrams in section
PRE-COLLISION SYSTEM for Toyota COROLLA SED (JPP)
This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota COROLLA SED (JPP). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
