Toyota COROLLA SED (JPP) — METER

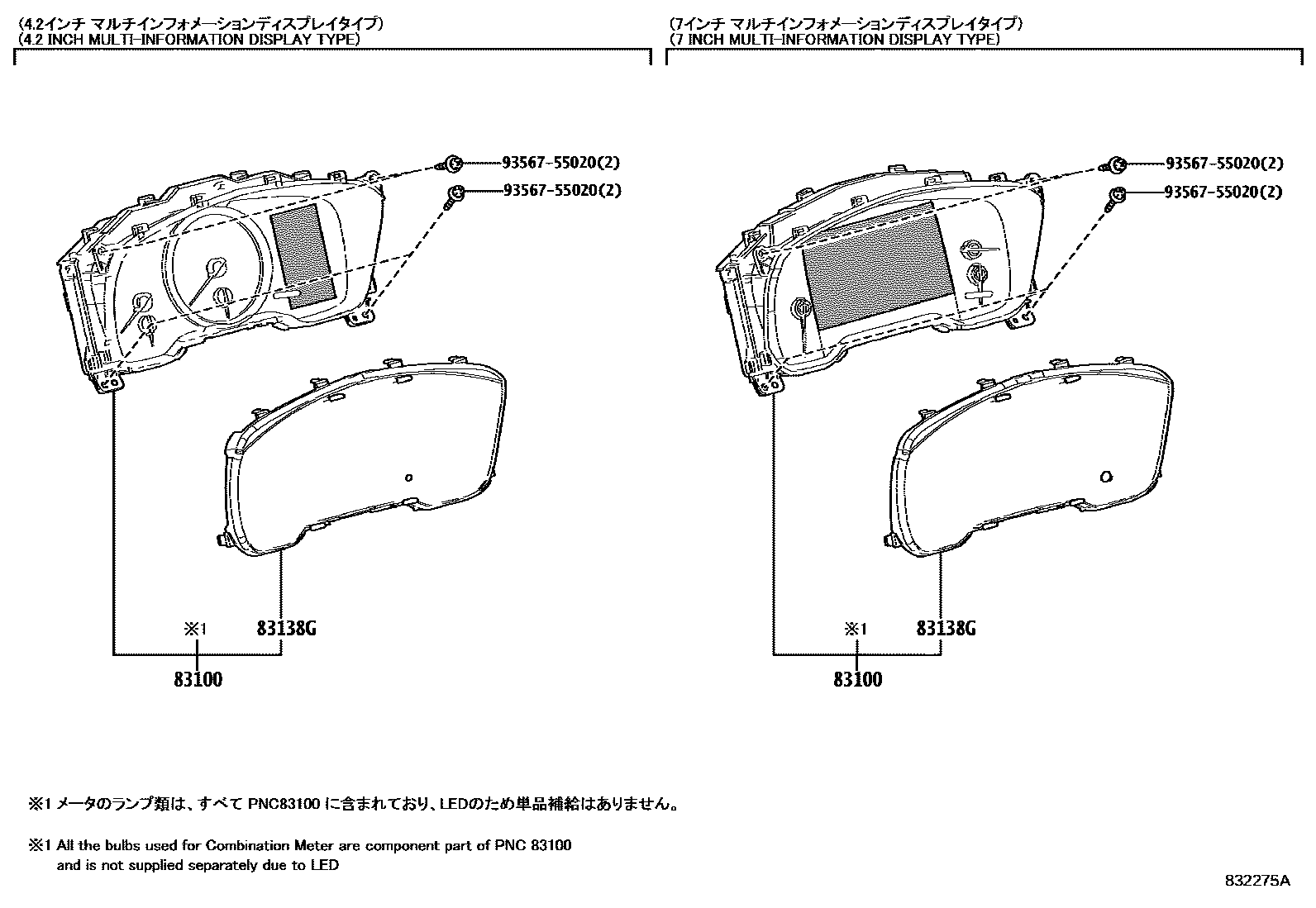

Parts diagram
83100METER ASSY, COMBINATION
main83800-12Y90i201909-202004
DENSO
main83800-1AC20i201901-202004
DENSO
main83800-1AK20i201909-202004
DENSO
main83800-1AY10i202004-202106
DENSO
main83800-1AY20i202004-202106
DENSO
main83800-1AY30i202004-202106
DENSO
main83800-1AZ00i202004-202106
DENSO
main83800-1AZ10i202004-202106
DENSO
main83800-1EB70i202106-202208
DENSO
main83800-1EB80i202106-202208
DENSO
main83800-1EB90i202106-202208
DENSO
main83800-1EC10i202106-202208
DENSO; DENSO,SOUTH AFRICA SPEC
main83800-1EC60i202106-202208
DENSO
main83800-1EC70i202106-202208
DENSO
main83800-1EF10i202209-202311
DENSO,*614
main83800-1EF11i202312-202409
DENSO,*614
main83800-1EF70i202209-202311
DENSO,*614
main83800-1EF71i202312-202409
DENSO,*614
main83800-1EF80i202209-202307
DENSO,*614
main83800-1EN60i202409-202507
DENSO,*614
main83800-1EP20i202409-202508
DENSO,*614
main83800-1AK40supersedes 83800-1AN90i201909-202004
DENSO,(DECONTENT)
main83800-1AK50i202001-202004
DENSO,SOUTH AFRICA SPEC
main83800-1AK60i201901-202004
DENSO,HIGH GRADE PACKAGE
main83800-1AP80supersedes 83800-1AE10i201901-202004
DENSO,CENTRAL AMERICA 1 SPEC; DENSO,CENTRAL AMERICA 2 SPEC
main83800-1AV80supersedes 83800-1EP40i202409-202508
DENSO,SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT&MULTI INFORMATION DISPLAY-4.2 INCH,*614
main83800-1AY40supersedes 83800-1AZ30i202004-202106
DENSO,(DECONTENT)
main83800-1AY50i202004-202106
DENSO,HIGH GRADE PACKAGE; DENSO,SOUTH AFRICA SPEC
main83800-1AY60i202004-202106
DENSO,HIGH GRADE PACKAGE
main83800-1EC00supersedes 83800-1ED20i202106-202208
DENSO,(DECONTENT)
main83800-1EC20i202106-202208
DENSO,HIGH GRADE PACKAGE
main83800-1ED31i202209-202311
DENSO,HIGH GRADE PACKAGE,*614
main83800-1ED32i202312-202409
DENSO,HIGH GRADE PACKAGE,*614
main83800-1ED41supersedes 83800-1EP40i202209-202302
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED42supersedes 83800-1EP40i202303-202307
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED43i202308-202310
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED44supersedes 83800-1EP40i202311-202409
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED51supersedes 83800-1EP70i202209-202302
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED52supersedes 83800-1EP70i202303-202307
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED53i202308-202310
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED54supersedes 83800-1EP70i202311-202409
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED60supersedes 83800-1EP70i202209-202302
DENSO,MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED61supersedes 83800-1EP70i202303-202307
DENSO,MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED62i202308-202310
DENSO,MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1ED63supersedes 83800-1EP70i202311-202409
DENSO,MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1EF00supersedes 83800-1EP40i202209-202311
DENSO,SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT&MULTI INFORMATION DISPLAY-4.2 INCH,*614
main83800-1EF01supersedes 83800-1EP40i202312-202409
DENSO,SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT&MULTI INFORMATION DISPLAY-4.2 INCH,*614
main83800-1EF60supersedes 83800-1EQ00i202209-202311
DENSO,DECONTENT PACKAGE,*614
main83800-1EF61supersedes 83800-1EQ00i202312-202409
DENSO,DECONTENT PACKAGE,*614
main83800-1EG00i202209-202308
DENSO,CENTRAL AMERICA 1 SPEC,*614; DENSO,CENTRAL AMERICA 2 SPEC,*614
main83800-1EG01supersedes 83800-1EP40i202312-202409
DENSO,MAURITIUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,*614
main83800-1EG10supersedes 83800-1EP70i202209-202311
DENSO,HIGH GRADE PACKAGE,*614; DENSO,SOUTH AFRICA SPEC,*614
main83800-1EG11supersedes 83800-1EP70i202312-202409
DENSO,HIGH GRADE PACKAGE,*614; DENSO,SOUTH AFRICA SPEC,*614
main83800-1EP10supersedes 83800-1EQ00i202409-202508
DENSO,DECONTENT PACKAGE,*614
main83800-1EP50supersedes 83800-1EP40i202409-202508
DENSO,MAURITIUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,*614
main83800-1EP60supersedes 83800-1EP70i202409-202508
DENSO,HIGH GRADE PACKAGE,*614; DENSO,SOUTH AFRICA SPEC,*614
main83800-1EQ30i202409-202508
DENSO,HIGH GRADE PACKAGE,*614
main83800-1EQ50supersedes 83800-1EP40i202409-202508
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
main83800-1EQ60supersedes 83800-1EP70i202409-202508
DENSO,HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH,*614
83138GGLASS, COMBINATION METER
main83852-12G10i202004-202208
(DECONTENT)
main83852-1AK50supersedes 83852-12G10i202106-202208
main83852-1EF00i202209-202409
DECONTENT PACKAGE; SOUTH AFRICA SPEC&DECONTENT PACKAGE 2&ACTIVE SAFETY PACKAGE-WITHOUT&MULTI INFORMATION DISPLAY-4.2 INCH
main83852-16760i202209-202409
HIGH GRADE PACKAGE&MULTI INFORMATION DISPLAY-12.3 INCH; MULTI INFORMATION DISPLAY-12.3 INCH
9356755020
main93567-55020

3 parts on this diagram · 3 diagrams in section

METER for Toyota COROLLA SED (JPP)

This section contains 9 genuine Toyota parts for the METER system of the Toyota COROLLA SED (JPP). Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, WIRE, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
