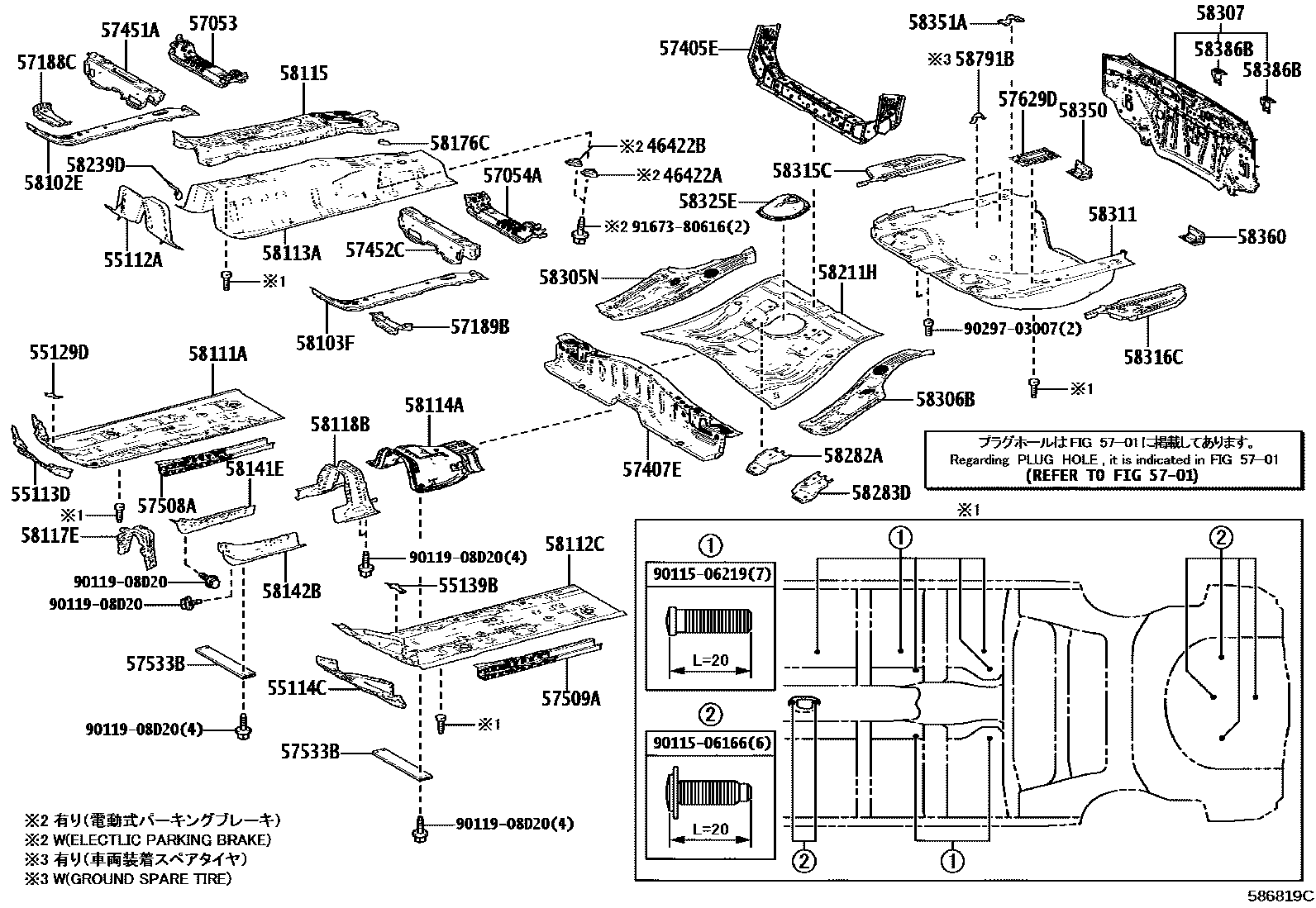

Toyota COROLLA SED (JPP) — FLOOR PAN & LOWER BACK PANEL
46422ACAP, PARKING BRAKE CABLE, CASING
46422BCAP, PARKING BRAKE CABLE, CASING
55112APANEL, DASH, NO.2
55113DPANEL, DASH, LOWER RH
55114CPANEL, DASH, LOWER LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701HOLE PLUG
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
PLANT NO. A41-A42
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58117EPANEL, FRONT FLOOR SUB COVER
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58239DBRACKET, CABLE CLAMP
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351ABRACKET, SPARE WHEEL CARRIER
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011908D20
main90119-08D20
9029703007
main90297-03007
9167380616
main91673-80616
53 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA SED (JPP)
This section contains 57 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA SED (JPP). Key components include: CAP, PARKING BRAKE CABLE, CASING, PANEL, DASH, NO.2, PANEL, DASH, LOWER RH, PANEL, DASH, LOWER LH.
