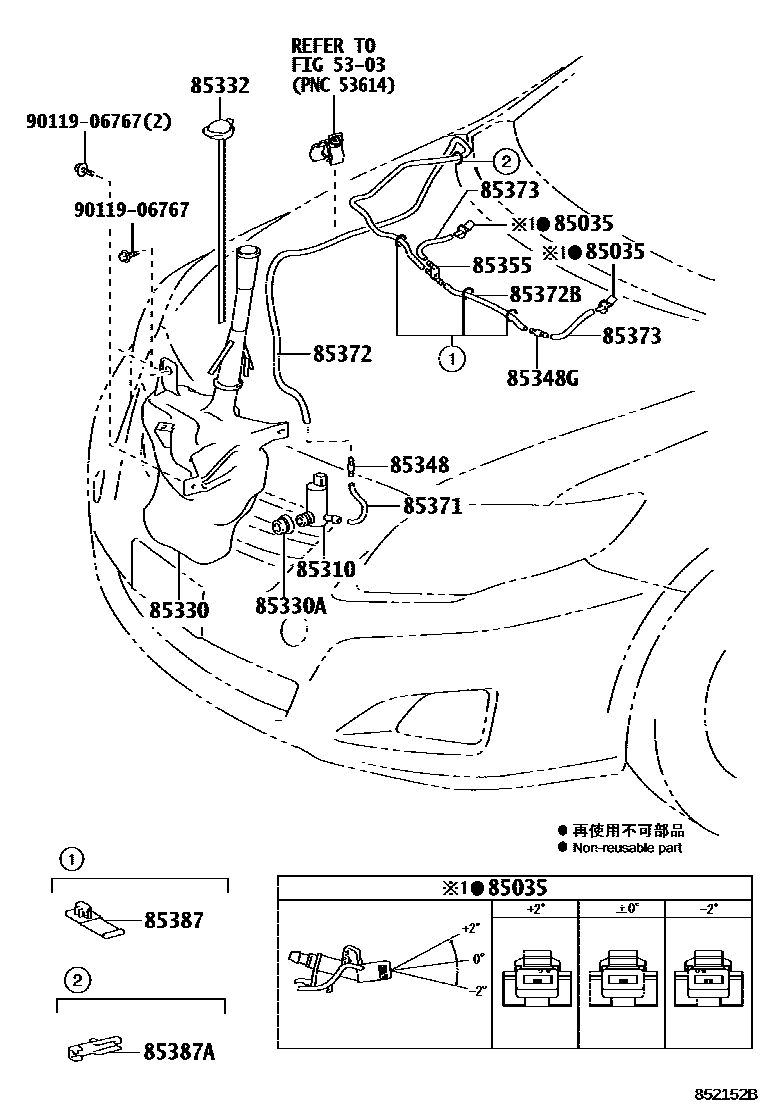

Toyota COROLLA (S.AMERICA) — WINDSHIELD WASHER

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200803

ANGLE 0

main85381-12310×2i200803-201003

ANGLE -2

main85381-12320×2i201103

ANGLE +2,ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030i201103-201108

main85330-02060i201108

85330JAR ASSY, WINDSHIELD WASHER

main85315-02370i200803-201103

main85355-02100i201103-201411

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02370i200803

main90069-20005i200803-201003

85332CAP, WINDSHIELD WASHER JAR

main85316-02370i201103-201411

main85356-02100i200803-201105

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i200803-201003

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-05050i200803-201003

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02350i200803-201003

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85374-0W010i200803-201003

L=80

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-0W010i200803-201003

L=80

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46048i200803-201003

L=510

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200803-201003

L=1450(*H,L=190)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-3A540×3i200803-201003

85387ACLAMP, WASHER, NO.2

main85387-02350i200803-201003

9011906767

main90119-06767

16 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA (S.AMERICA)

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA (S.AMERICA). Key components include: HOOD LOCK & HINGE, SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
