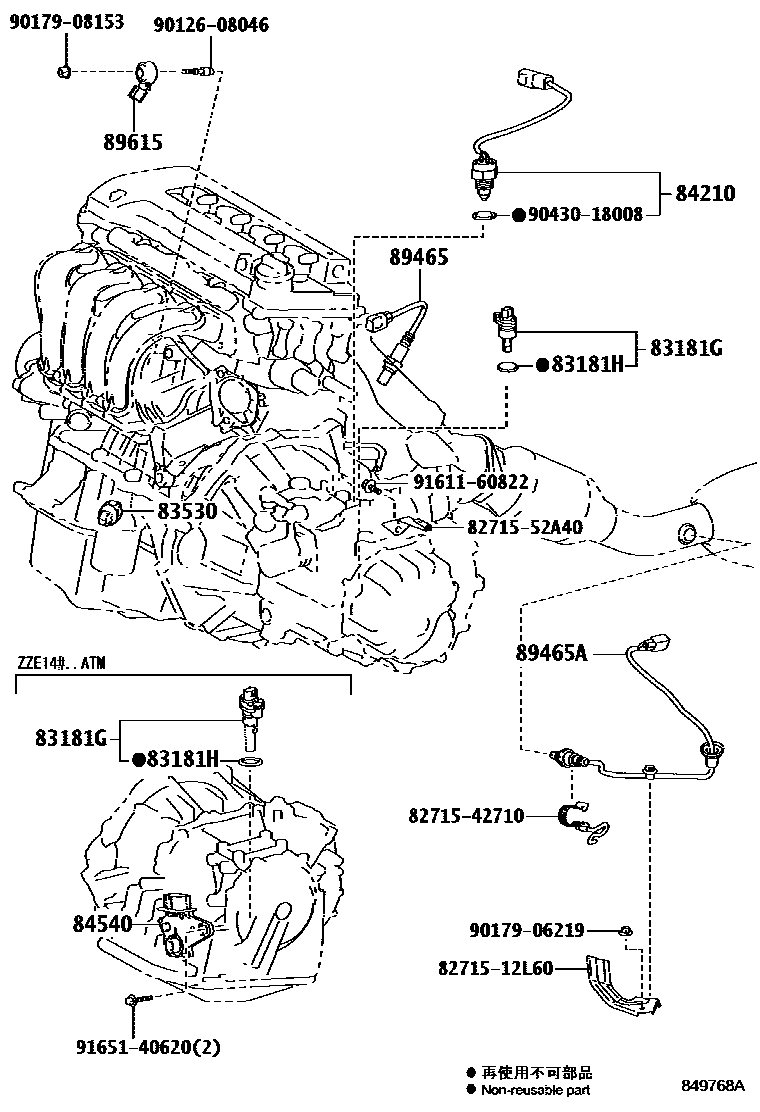

Toyota COROLLA (S.AMERICA) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 2/2 0006 1COWL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR,ROOF,FLOOR & LUGGAGE

83181GSENSOR, SPEEDOMETER

main83181-12020supersedes 83181-12020iZZE14#..MTM..(CE,XLI)200803-201103

ABS-WITHOUT

main83181-12040supersedes 83181-12040iZZE14#..ATM..(CE,XLI)200803-201103

ABS-WITHOUT

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018supersedes 96711-24018iZZE14#..ATM..(CE,XLI)200803

ABS-WITHOUT

main96711-24030supersedes 96711-24030iZZE14#..MTM..(CE,XLI)200803

ABS-WITHOUT

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iZZE142..SEG..HTWCF200803-201003

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZRE142..MTM201103-201204

main84210-52010iZZE14#..MTM200803-201105

main84210-52050iZRE142..MTM201205-201403

84540SWITCH ASSY, NEUTRAL START

main84540-42010iZRE143201103-201403

main84540-46010iZZE14#..ATM200803-201105

89465SENSOR, OXYGEN

main89465-02360iZZE142..SEG..HTWCF200803-201003

main89465-12A30iZRE143201003-201103

main89467-12030iZRE142..MTM..XEI;ZRE142..ATM..(SEG,XEI)201103-201403

COLOMBIA SPEC

main89467-12100iZZE142201105

main89467-52060iZRE142..SEG,XEI201103-201403

89465ASENSOR, OXYGEN NO.2

main89465-02200iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE14#;ZZE142..CNG201103

8271512L60BRACKET,WIRING HARNESS CLAMP

main82715-12L60

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

9012608046

main90126-08046

9017906219

main90179-06219

9017908153

main90179-08153

9043018008

main90430-18008

9161160822

main91611-60822

9165140620

main91651-40620

17 parts on this diagram · 10 diagrams in section
