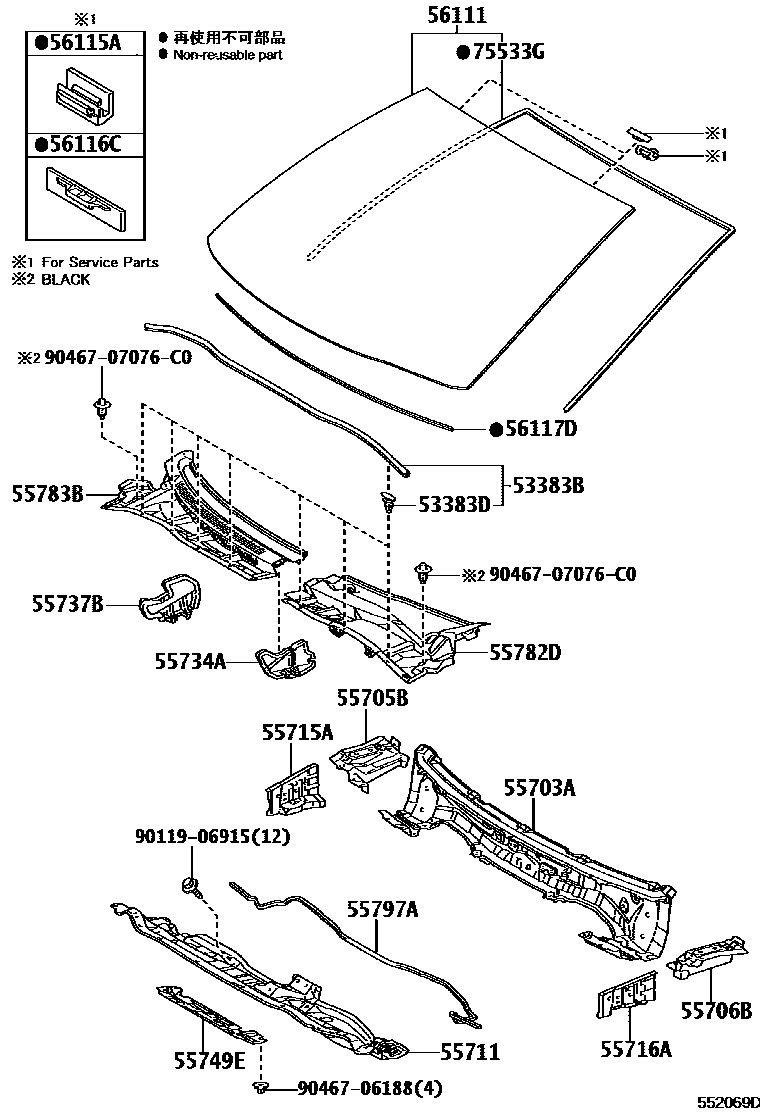

Toyota COROLLA (S.AMERICA) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02170i200803-201103

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7i200803-201003

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-02320i200803-201003

main55703-02440i201201

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02100i200803-201003

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02100i200803-201003

55711PANEL, COWL TOP, OUTER

main55701-02290i200803-201003

55715ABRACE, COWL TOP TO APRON, RH

main55715-02050i200803-201003

55716ABRACE, COWL TOP TO APRON, LH

main55716-02050i200803-201003

55734APLATE, WATER GUARD, RH

main55734-02150i200803-201003

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02090i200803-201003

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02070i200803

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02350i200803-201003

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-02490i200803-201103

55797ASEAL, COWL WATER EXTRACT

main55797-02100i200803-201103

56111GLASS, WINDSHIELD

main56101-02590i200803

*LAM,T=4.66,GREEN

main56101-02591i201206

*LAM,T=4.66,GREEN

main56101-02600i200803

*LAM,T=4.66,GREEN

main56101-02601i201206-201403

*LAM,T=4.66,GREEN

main56101-02610i201105-201206

*LAM,T=4.66,GREEN

main56101-02620i200803-201103

*LAM,T=4.66,GREEN

main56101-02621i201303-201403

*LAM,T=4.66,GREEN

main56101-02670i200809-201105

*LAM,T=4.66,GREEN

main56101-02A50i201103-201205

*LAM,T=4.66,GREEN

main56101-02A51i201206-201403

*LAM,T=4.66,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2i200803-201105

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200803

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300i200803-201003

L=1303

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02170i200803-201003

9011906915

main90119-06915

9046706188

main90467-06188

9046707076C0

main90467-07076C0

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA (S.AMERICA)

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA (S.AMERICA). Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL TOP, INNER, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
