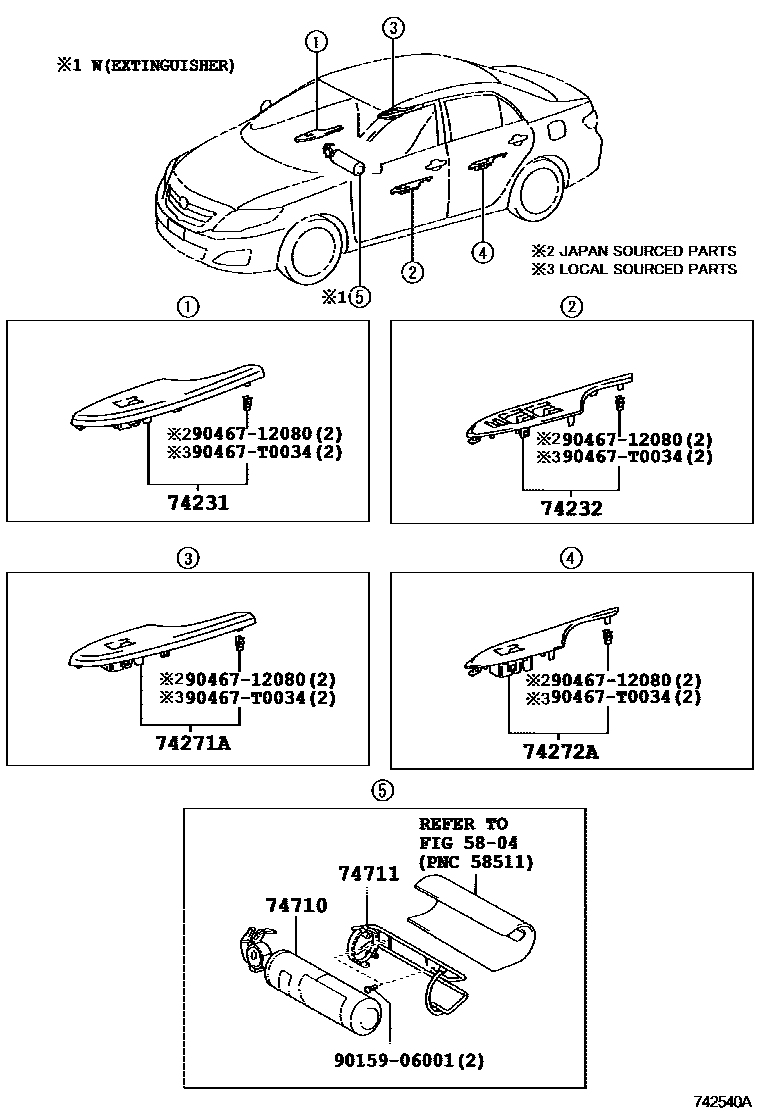

Toyota COROLLA (S.AMERICA) — ARMREST & VISOR

5804MAT & CARPET

→ Go to FIG 58-04

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02880-E0i200803-201103

BROWN,TRIM4#

main74231-02A10-B0i200803-201105

GRAY,TRIM1#

main74231-02A10-E0i200803

GREGE,TRIM4#

main74231-02A20-B0i200803-201105

SILVER,TRIM1#

main74231-02A20-B2i201103-201411

ORNAMENT SILVER,TRIM1#

main74231-02C00-E0i201103-201403

DARK BROWN,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02A20-B0i201103-201403

GRAY,TRIM1#; LOW GRADE PACKAGE,GRAY,TRIM1#

main74232-02A20-E0i200803

GREGE,TRIM4#

main74232-02A50-B0i200803-201105

SILVER,TRIM1#

main74232-02A50-B2i201103-201411

ORNAMENT SILVER,TRIM1#

main74232-02A60-E0i200803-201103

BROWN,TRIM4#

main74232-02A60-E1i201103-201403

DARK BROWN,TRIM4#

main74232-02A70-B0i200809

GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02380-E0i200803-201103

BROWN,TRIM4#

main74271-02410-B0i200803

GRAY,TRIM1#; LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),GRAY,TRIM1#

main74271-02410-E0i200803

GREGE,TRIM4#

main74271-02420-B0i200803-201105

SILVER,TRIM1#

main74271-02420-B2i201103-201411

ORNAMENT SILVER,TRIM1#

main74271-02510-E0i201103-201403

DARK BROWN,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02370-E0i200803-201003

BROWN,TRIM4#

main74272-02400-B0i200803-201105

GRAY,TRIM1#

main74272-02400-E0i200803

GREGE,TRIM4#

main74272-02410-B0i200803

SILVER,TRIM1#

main74272-02410-B2i201103-201411

ORNAMENT SILVER,TRIM1#

main74272-02510-E0i201103-201403

DARK BROWN,TRIM4#

74710EXTINGUISHER ASSY

main74710-02010i200803-201003

LATIN AMERICA SPEC

74711BRACKET SUB-ASSY, EXTINGUISHER

main74702-02020i200803-201003

LATIN AMERICA SPEC

9015906001

main90159-06001

9046712080

main90467-12080

90467T0034

main90467-T0034

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA (S.AMERICA)

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA (S.AMERICA). Key components include: MAT & CARPET, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
