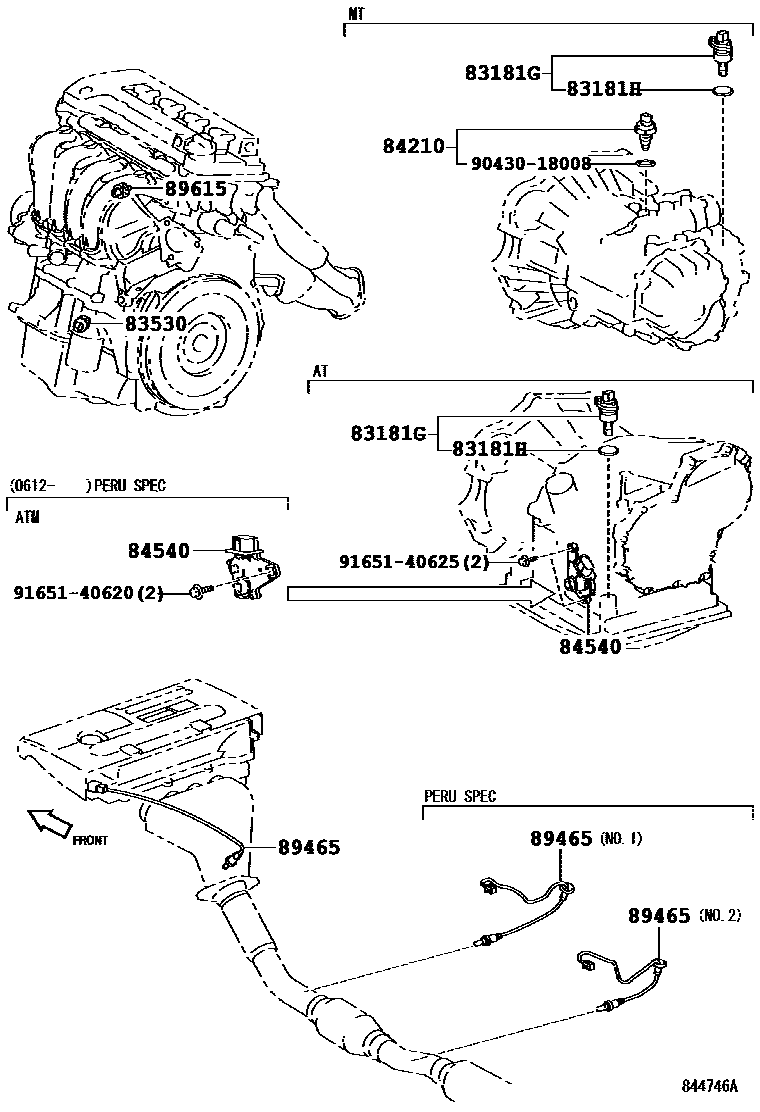

Toyota COROLLA (S.AMERICA) — SWITCH & RELAY & COMPUTER

83181GSENSOR, SPEEDOMETER

main83181-12020i200205-200508

main83181-12040i200612-200803

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018i200612-200803

main96711-24030i200205-200508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010i200205-200408

DENSO

main83530-28020i200205-200408

DENSO

main83530-60010i200205-200408

YAZAKI

main83530-60020i200205-200705

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i200408-200809

84540SWITCH ASSY, NEUTRAL START

main84540-32110i200205-200406

main84540-46010i200612-200803

PERU SPEC

main84540-48010i200406-200705

89465SENSOR, OXYGEN

main89465-02130i200205-200508

main89465-02360i200705

main89465-12620i200704-200803

PERU SPEC,NO.1

main89465-12640i200612-200803

PERU SPEC,NO.1

main89465-12700i200704-200803

PERU SPEC,NO.2

89615SENSOR, KNOCK CONTROL

main89615-12120i200205-200408

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

10 parts on this diagram · 8 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA (S.AMERICA)

This section contains 108 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA (S.AMERICA). Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, STEERING COLUMN & SHAFT, FLASHER ASSY, TURN SIGNAL.
