Toyota COROLLA (S.AMERICA) — PARTIAL ENGINE ASSEMBLY

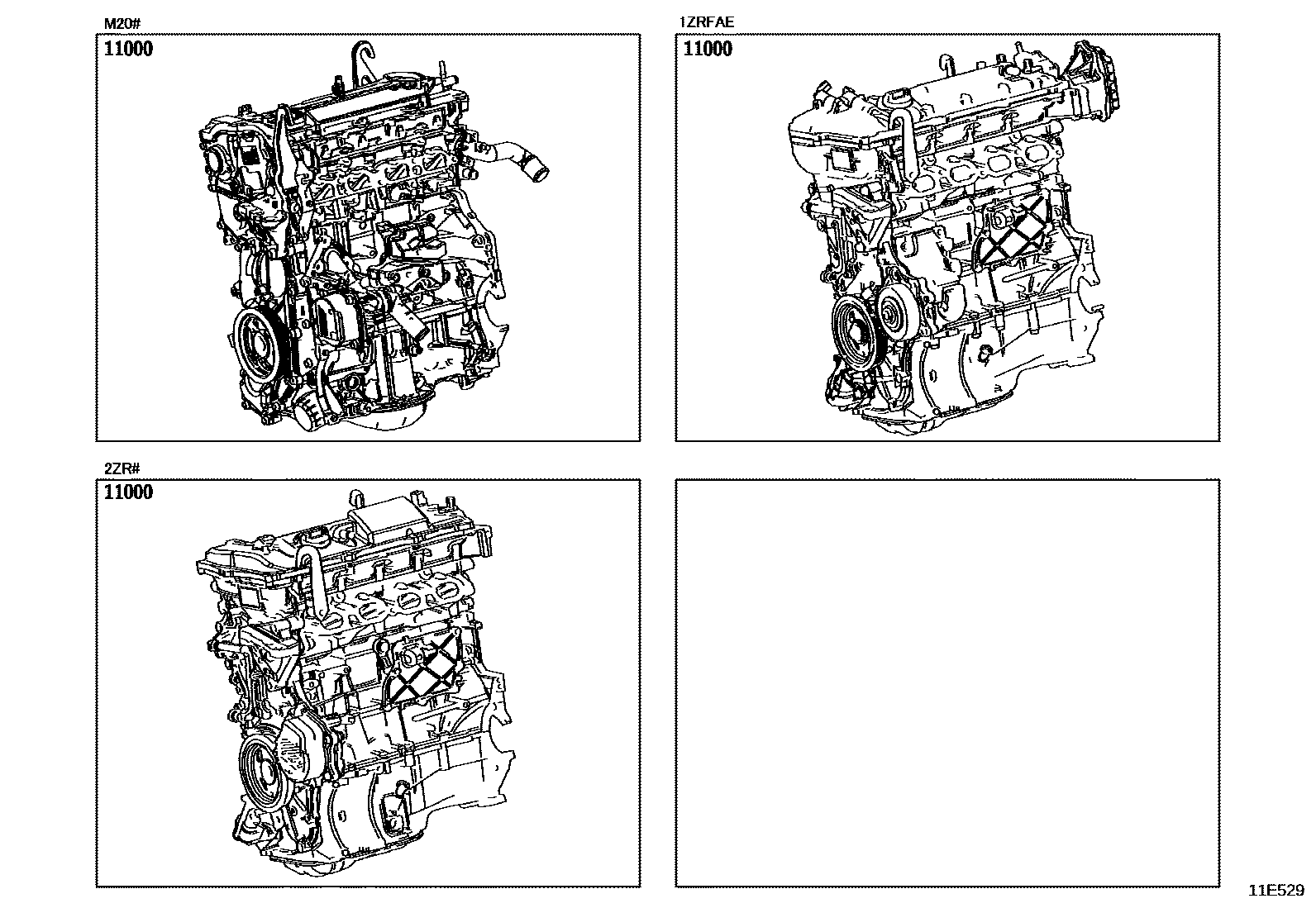

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-37800i201909-202110
sub16281-37190
sub25601-37060
main19000-37890i201909-202201
main19000-37A40i201909-202110
main19000-37B00i202412
main19000-37B40i202110-202201
main19000-F2040i201909-202201
main19000-F2050i202201-202309
main19000-F2330i202309-202412
main19000-F2340i202309-202412
main19000-F2390i202412
main19000-F2400i202412

1 parts on this diagram · 1 diagram in section
