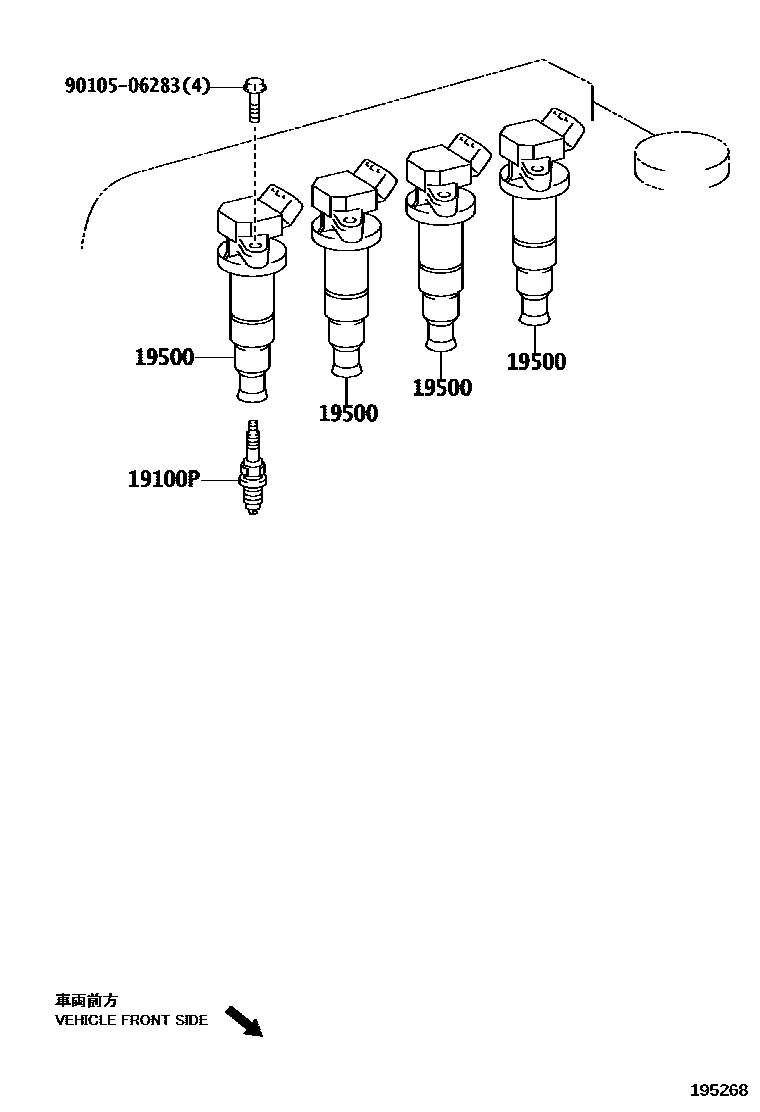

Toyota COROLLA (S.AMERICA) — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90080-91217×4i200803-200908

BKR5EYA11

main90080-91219×4i200803-200812

BKR6EYA11

main90080-91227×4i200812-200903

DIFR6B11

main90080-91246×4i200903-201003

DIFR6B11D

main90080-91247×4i200908-201004

IFR5A11D

main90080-91248×4i201105

IFR5A8D

main90919-01164×4i200803

K16R-U11

main90919-01253×4i201103-201403

SC20HR11

main90919-01256×4i201103-201403

FC22HR9

19500COIL ASSY, IGNITION

main90080-19015×4i200803-201003

(L),MARK 90080-19015

main90080-19019×4i200803-201010

(L),MARK 90080-19019

main90919-02239×4i200803-201010

(J),MARK 90919-02239

main90919-02252×4i201003-201007

main90919-02258×4i201103-201403

main90919-02262×4i201010

(J),MARK 90919-02262

main90919-T2002×4i200803-201003

(L),MARK 90919-T2002

main90919-T2006×4i201103

(L),MARK 90919-T2006

9010506283

main90105-06283

3 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA (S.AMERICA)

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA (S.AMERICA). Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
