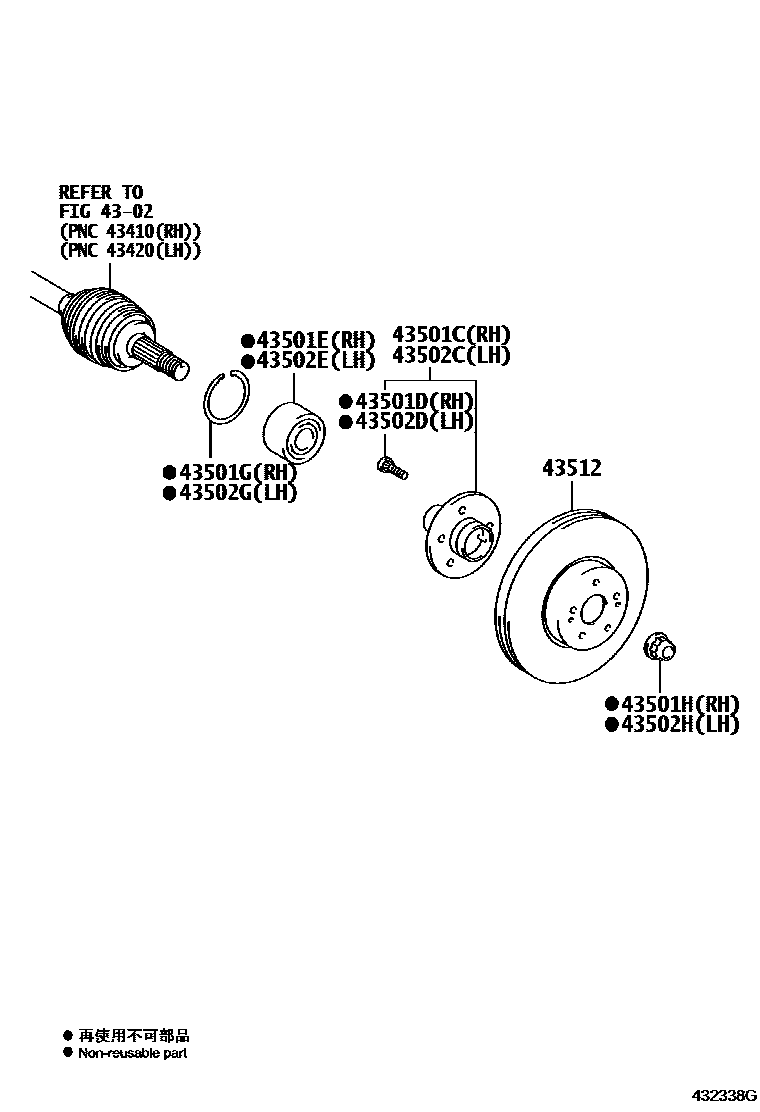

Toyota COROLLA (S.AMERICA) — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02100i200803-201003

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02082×5i200803-201003

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36149i200803-201003

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200803-201003

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200803-201003

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02100i200803-201003

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02082×5i200803-201003

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36149i200803-201003

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200803-201003

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200803-201003

43512DISC, FRONT

main43512-02290×2i200803-201105

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA (S.AMERICA)

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA (S.AMERICA). Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
