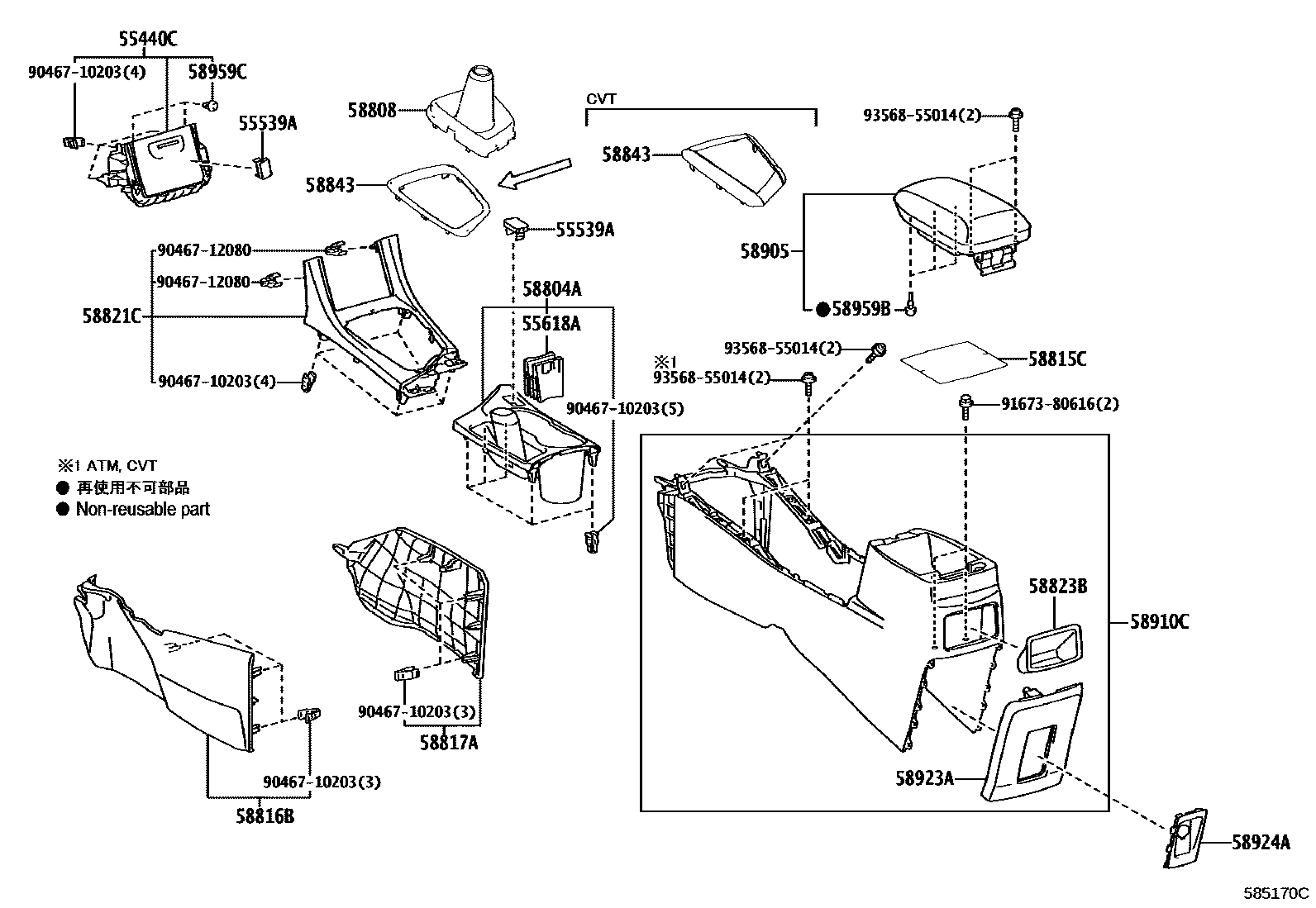

Toyota COROLLA (S.AMERICA) — CONSOLE BOX & BRACKET
55440CBOX ASSY, INSTRUMENT PANEL
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-C0iZRE17#; ZRE172..6F..E; ZRE172..CVT..N..LA; ZRE172..CVT..N;ZRE172..6F..N..LA; ZRE172..N;ZRE173..VEN201403-201701
AUDIO-AVN & 6SPEAKER,BLACK; BLACK; BLACK,TRIM0#; BLACK,TRIM1#; UP GRADE PACKAGE,BLACK,TRIM1#
AUDIO-AVN & 6SPEAKER,BLACK; BLACK,TRIM0#; UP GRADE PACKAGE,BLACK,TRIM1#
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM0#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM1#
BLACK,TRIM0#
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
58815CCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#
58823BBOX, CONSOLE COMPARTMENT
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58843BEZEL, SHIFTING HOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,TRIM1#
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
9046710203
main90467-10203
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
21 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota COROLLA (S.AMERICA)
This section contains 21 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA (S.AMERICA). Key components include: BOX ASSY, INSTRUMENT PANEL, COVER, SPARE SWITCH HOLE, HOLDER, CONSOLE BOX CUP, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE.
