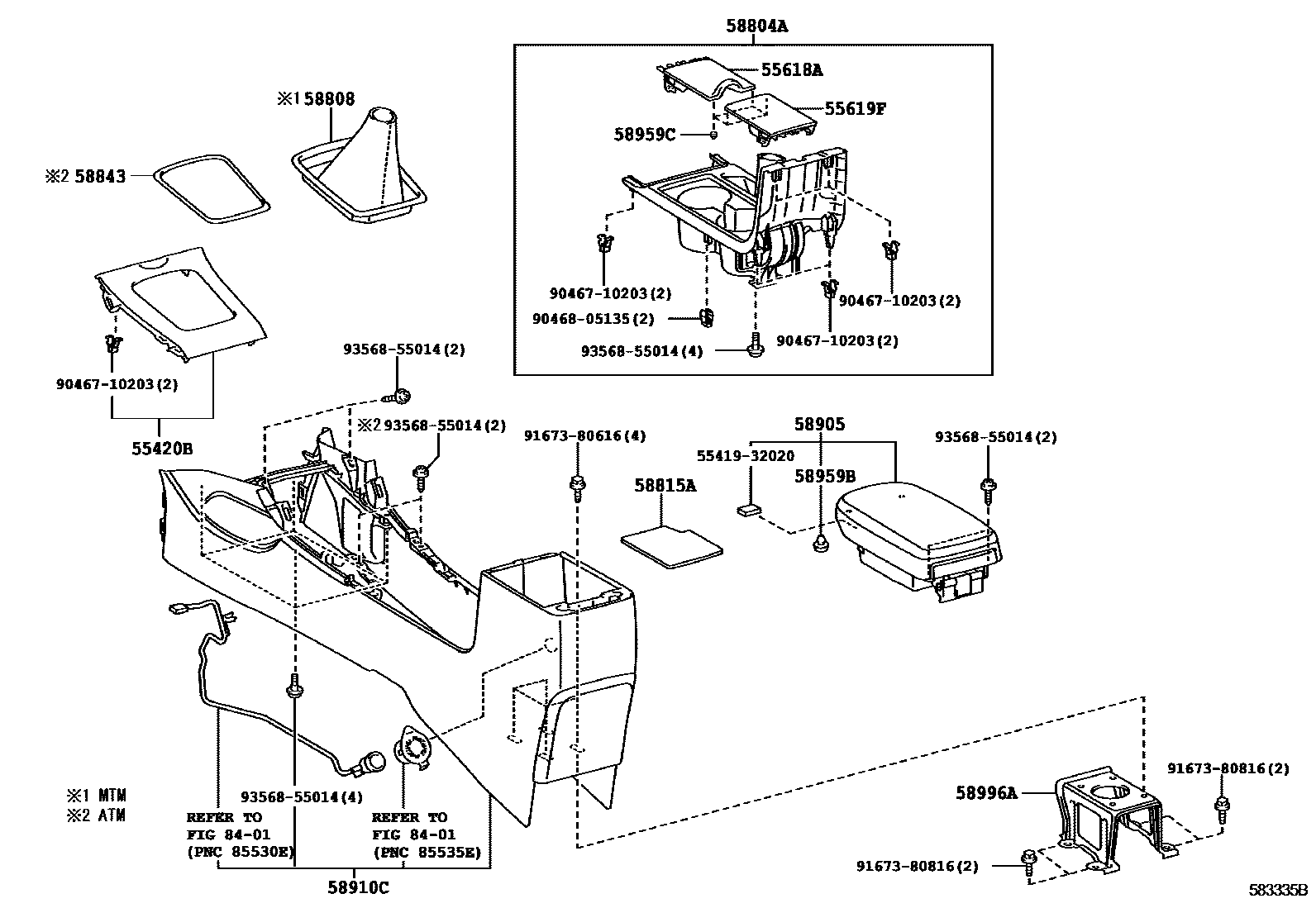

Toyota COROLLA (S.AMERICA) — CONSOLE BOX & BRACKET
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
SILVER,TRIM1#
main55420-02540-B0iZZE141;ZZE142..XEI..HTWC..VEN; ZZE142..MXC; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803
DARK GRAY,TRIM1#; DARK GRAY,TRIM1#,4#; LOW GRADE PACKAGE&ABS-WITHOUT,DARK GRAY,TRIM1#
55618AHOLDER, CONSOLE BOX CUP
GRAY,TRIM1#
GREGE,TRIM4#
SPORT PACKAGE,DK.GRAY,TRIM1#
55619FHOLDER, CONSOLE BOX CUP, NO.2
GRAY,TRIM1#
GREGE,TRIM4#
SPORT PACKAGE,DK.GRAY,TRIM1#
58804APANEL SUB-ASSY, CONSOLE, UPPER
GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#
SPORT PACKAGE,DK.GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
SPORT PACKAGE,DK.GRAY,TRIM1#
58815ACARPET, CONSOLE BOX
58843BEZEL, SHIFTING HOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,TRIM1#
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM13; SPORT PACKAGE,DK.GRAY,TRIM13; UP GRADE PACKAGE,DK.GRAY,TRIM13
GREGE,TRIM4#
58910CBOX ASSY, CONSOLE, REAR
GRAY,TRIM12
DK.GRAY,TRIM13
GREGE,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8401SWITCH & RELAY & COMPUTER
5541932020PLATE, SAFETY PAD
main55419-32020
9046710203
main90467-10203
9046805135
main90468-05135
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
19 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota COROLLA (S.AMERICA)
This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA (S.AMERICA). Key components include: PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1, HOLDER, CONSOLE BOX CUP, HOLDER, CONSOLE BOX CUP, NO.2, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE.
