Toyota COROLLA (S.AMERICA) — ARMREST & VISOR

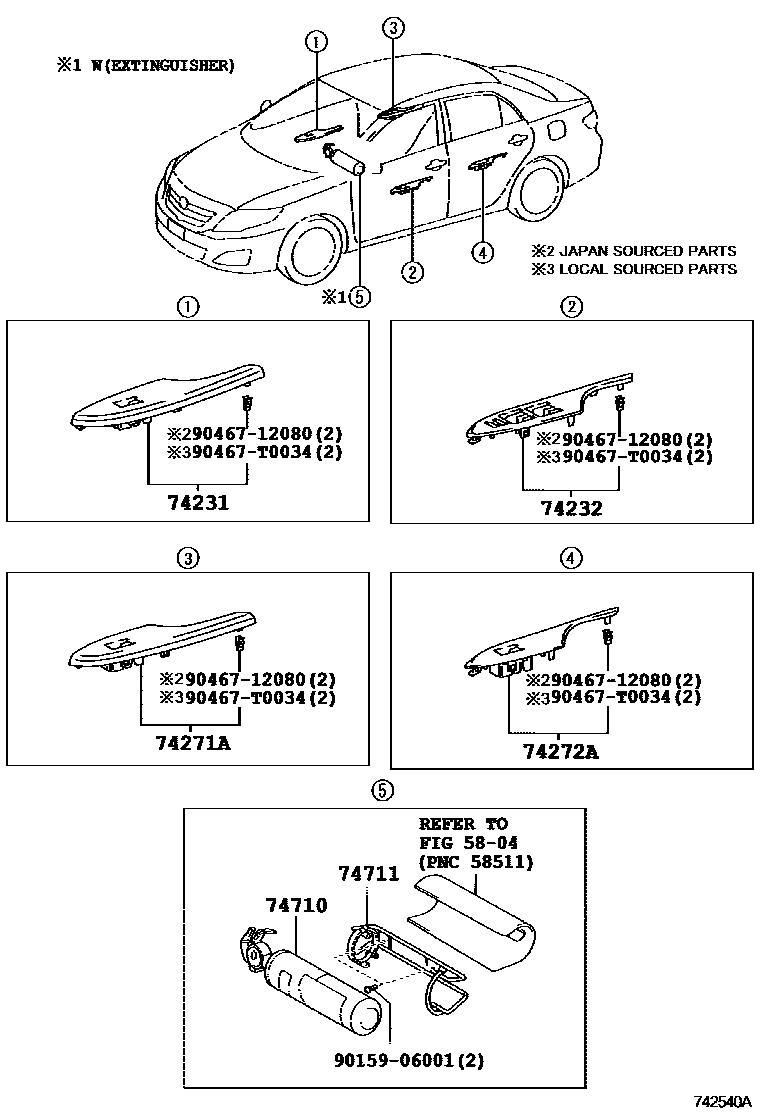

Parts diagram
5804MAT & CARPET
→ Go to FIG 58-04
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02880-E0i200803-201103
BROWN,TRIM4#
main74231-02A10-B0i200803-201105
GRAY,TRIM1#
main74231-02A10-E0i200803
GREGE,TRIM4#
main74231-02A20-B0i200803-201105
SILVER,TRIM1#
main74231-02A20-B2i201103-201411
ORNAMENT SILVER,TRIM1#
main74231-02C00-E0i201103-201403
DARK BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02A20-B0i201103-201403
GRAY,TRIM1#; LOW GRADE PACKAGE,GRAY,TRIM1#
main74232-02A20-E0i200803
GREGE,TRIM4#
main74232-02A50-B0i200803-201105
SILVER,TRIM1#
main74232-02A50-B2i201103-201411
ORNAMENT SILVER,TRIM1#
main74232-02A60-E0i200803-201103
BROWN,TRIM4#
main74232-02A60-E1i201103-201403
DARK BROWN,TRIM4#
main74232-02A70-B0i200809
GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02380-E0i200803-201103
BROWN,TRIM4#
main74271-02410-B0i200803
GRAY,TRIM1#; LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER),GRAY,TRIM1#
main74271-02410-E0i200803
GREGE,TRIM4#
main74271-02420-B0i200803-201105
SILVER,TRIM1#
main74271-02420-B2i201103-201411
ORNAMENT SILVER,TRIM1#
main74271-02510-E0i201103-201403
DARK BROWN,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02370-E0i200803-201003
BROWN,TRIM4#
main74272-02400-B0i200803-201105
GRAY,TRIM1#
main74272-02400-E0i200803
GREGE,TRIM4#
main74272-02410-B0i200803
SILVER,TRIM1#
main74272-02410-B2i201103-201411
ORNAMENT SILVER,TRIM1#
main74272-02510-E0i201103-201403
DARK BROWN,TRIM4#
74710EXTINGUISHER ASSY
main74710-02010i200803-201003
LATIN AMERICA SPEC
74711BRACKET SUB-ASSY, EXTINGUISHER
main74702-02020i200803-201003
LATIN AMERICA SPEC
9015906001
main90159-06001
9046712080
main90467-12080
90467T0034
main90467-T0034

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA (S.AMERICA)

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA (S.AMERICA). Key components include: MAT & CARPET, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
