Toyota COROLLA (S.AMERICA) — ARMREST & VISOR

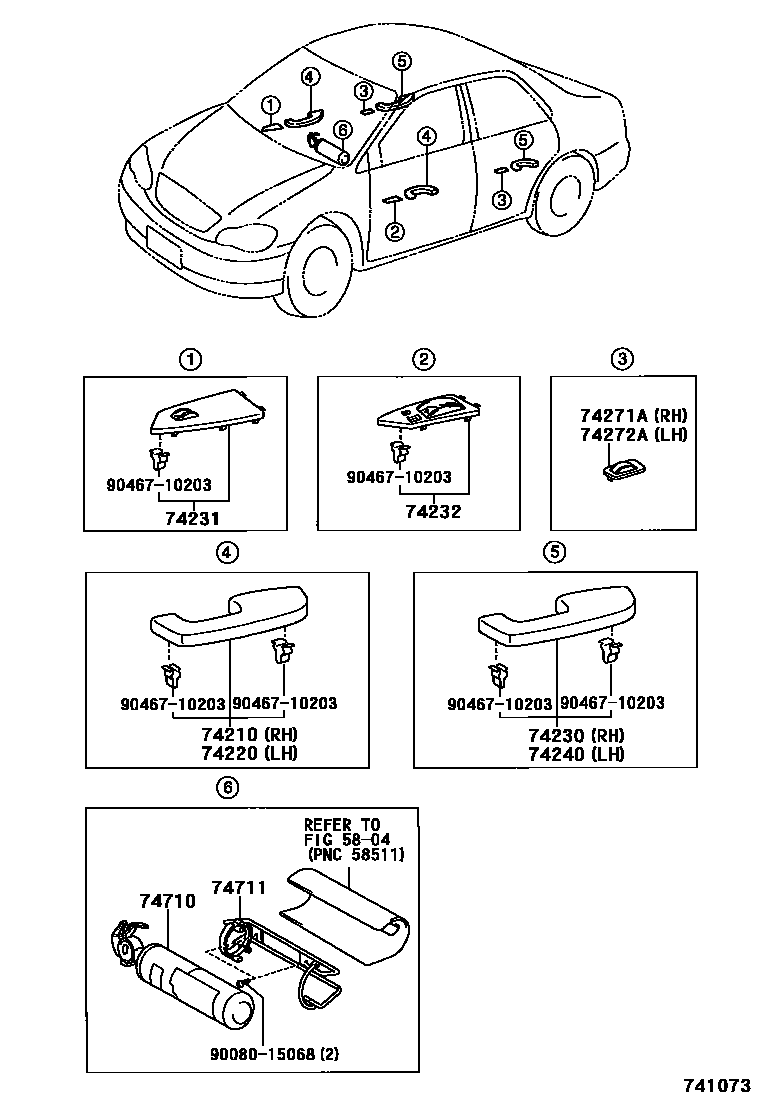

Parts diagram
5804MAT & CARPET
→ Go to FIG 58-04
74210ARMREST ASSY, FRONT, RH
main74210-02150-B0i200408
STONE,TRIM1#
74220ARMREST ASSY, FRONT, LH
main74220-02120-B0i200205-200705
STONE,TRIM1#
74230ARMREST ASSY, REAR, RH
main74210-02150-B0i200205-200705
STONE,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02380-B0i200205-200705
STONE,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02380-B0i200205-200705
STONE,TRIM1#
74240ARMREST ASSY, REAR, LH
main74220-02120-B0i200205-200705
STONE,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02090-B0i200205-200705
STONE,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74271-02090-B0i200205-200705
STONE,TRIM1#
74710EXTINGUISHER ASSY
main74710-02010i200205-200408
74711BRACKET SUB-ASSY, EXTINGUISHER
main74702-02010i200205-200408
9008015068
main90080-15068
9046710203
main90467-10203

13 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA (S.AMERICA)

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA (S.AMERICA). Key components include: MAT & CARPET, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
