Toyota COROLLA (S.AMERICA) — ACCELERATOR LINK

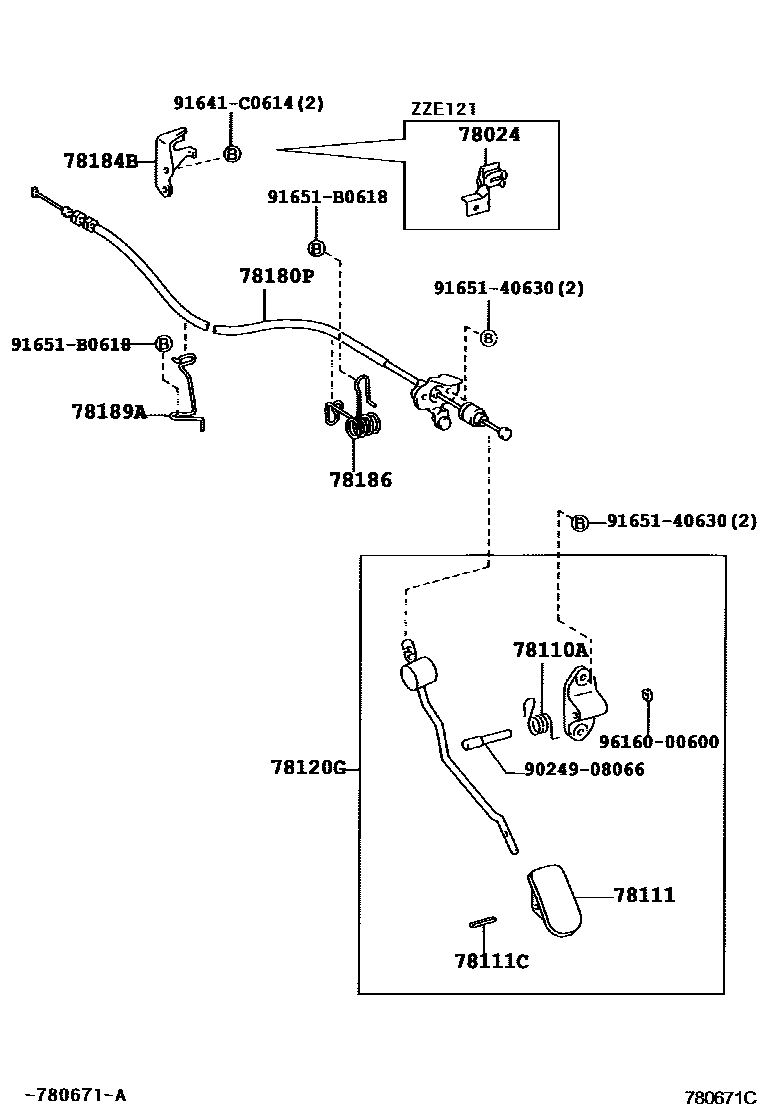

Parts diagram

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-12090i200205-200508

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26036i200205-200408

78111PEDAL, ACCELERATOR

main78111-20060i200205-200408

main78111-35030i200408-200803

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200311-200408

78120GROD ASSY, ACCELERATOR PEDAL

main78120-02110i200205-200705

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-12A30i200705

main78180-12A80i200705-200803

main78180-13020i200408-200509

main78180-13021i200510

main78180-1A800i200408-200509

main78180-1A801i200510-200705

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360i200205-200408

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12380i200205-200508

main78186-12450i200705

main78186-13040i200408-200705

TYPE A:REFER ILLUST.,TYPE B:REFER ILLUST.

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100i200205-200408

main78189-12180i200705

9024908066

main90249-08066

91641C0614

main91641-C0614

9165140630

main91651-40630

91651B0618

main91651-B0618

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota COROLLA (S.AMERICA)

This section contains 17 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA (S.AMERICA). Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL).
