Toyota COROLLA (S.AFRICA) — V-BELT

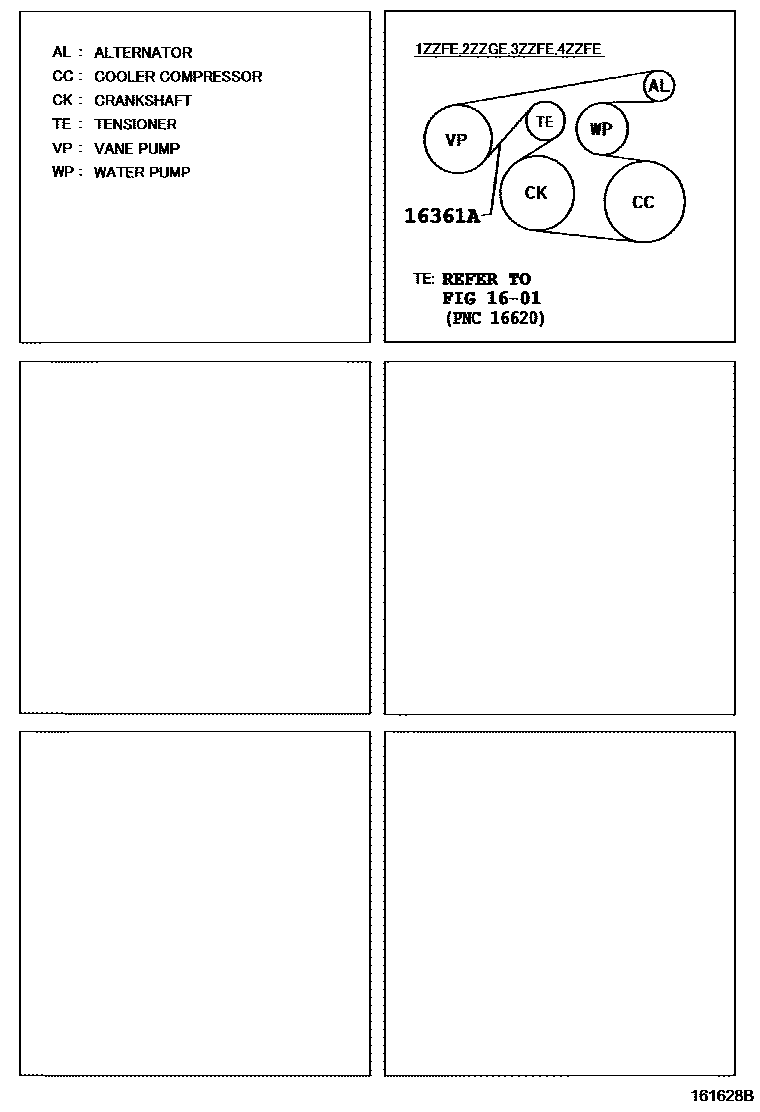

Parts diagram
1601WATER PUMP
→ Go to FIG 16-01
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02469i200208-200408
main90916-02504i200406-200408
main90916-02544i200408-200707
W(AIR CONDITIONER)

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA (S.AFRICA)

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA (S.AFRICA). Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
