Toyota COROLLA (S.AFRICA) — CONSOLE BOX & BRACKET

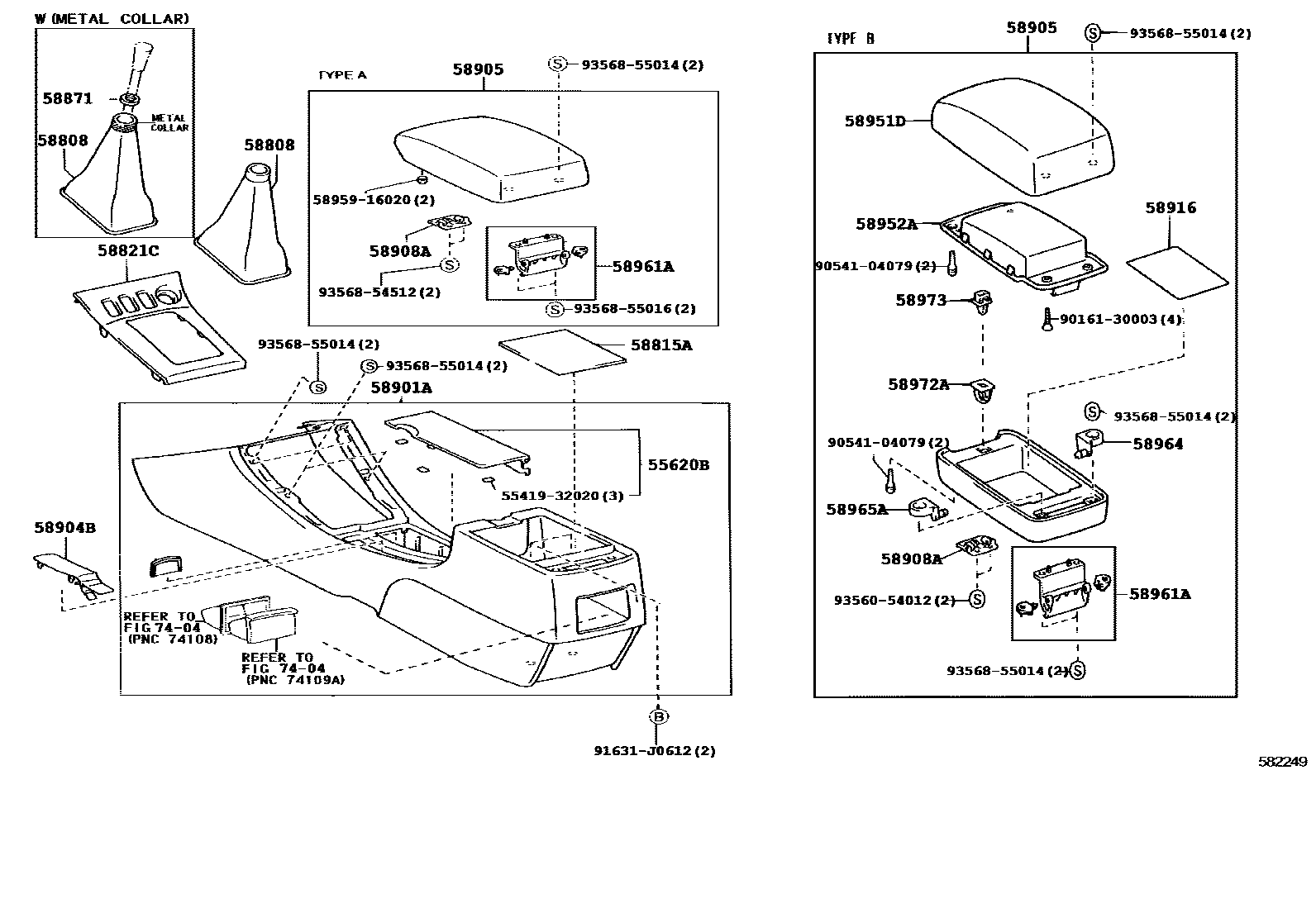

Parts diagram
55620BHOLDER, INSTRUMENT PANEL CUP
main55620-02080-A0i200208-200408
IVORY,TRIM0#
main55620-02080-B0i200408-200707
DK.GRAY,TRIM1#
main55620-02080-B1i200408-200707
MD.GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-02050-B0i200408-200707
DK.GRAY,TRIM1#
main58808-02060-B0i200408-200707
DK.GRAY,TRIM1#
main58808-02070-B0i200208-200408
W(METAL COLLAR) REFER TO ILLUSTRATION,DK.GRAY,TRIM0#,1#; W(METAL COLLAR) REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
58815ACARPET, CONSOLE BOX
main58815-02060i200408-200707
58821CPANEL, CONSOLE, UPPER
main58821-12100-B0i200303-200408
DARK GRAY,TRIM0#
main58821-12100-E0i200210-200408
SILVER,TRIM1#
main58821-12110-A0i200208-200408
IVORY,TRIM0#,1#
main58821-12110-B0i200408-200707
GRAY,TRIM1#
main58821-12110-B1i200408-200707
GRAPHIC CARBON,TRIM1#
58871CUSHION, CONSOLE BOX
main58871-20060i200208-200408
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-02090-A0i200303-200408
IVORY,TRIM0#
main58901-02090-B0i200208-200408
DK.GRAY,TRIM1#
main58901-02090-B1i200408-200707
MD.GRAY,TRIM1#
main58901-02160-A0i200208-200408
IVORY,TRIM0#
main58901-02160-B0i200208-200408
DK.GRAY,TRIM1#
main58901-02160-B1i200408-200707
MD.GRAY,TRIM1#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-02080-A0i200208-200408
IVORY,TRIM0#
main58904-02080-B0i200208-200408
DK.GRAY,TRIM1#
main58904-02080-B1i200408-200707
MD.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-02270-A0i200303-200408
IVORY,TRIM0#
main58905-02270-B0i200408-200707
TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
main58905-02270-B5i200408-200707
TYPE A:REFER TO ILLUSTRATION,MD.GRAY,TRIM1#
main58905-12570-B0i200408-200510
TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i200208-200408
58916MAT, BOX BOTTOM
main58916-12080i200408-200510
58951DDOOR, CONSOLE COMPARTMENT, OUTER
main58951-12440-B0i200408-200510
DARK GRAY,TRIM1#
58952ADOOR, CONSOLE COMPARTMENT, INNER
main58952-12060-B6i200408-200510
DK.GRAY,TRIM1#
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
main58907-12050i200208-200408
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-20040i200408-200510
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58965-20050i200408-200510
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
main58972-34010i200408-200510
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
main58973-34010i200408-200510
7404ASH RECEPTACLE
→ Go to FIG 74-04
5541932020PLATE, SAFETY PAD
main55419-32020
5895916020ROD, REAR LOCK, HANDLE LATCH
main58959-16020
9016130003
main90161-30003
9054104079
main90541-04079
91631J0612
main91631-J0612
9356054012
main93560-54012
9356854512
main93568-54512
9356855014
main93568-55014
9356855016
main93568-55016

27 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA (S.AFRICA)

This section contains 27 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA (S.AFRICA). Key components include: HOLDER, INSTRUMENT PANEL CUP, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, CUSHION, CONSOLE BOX.
