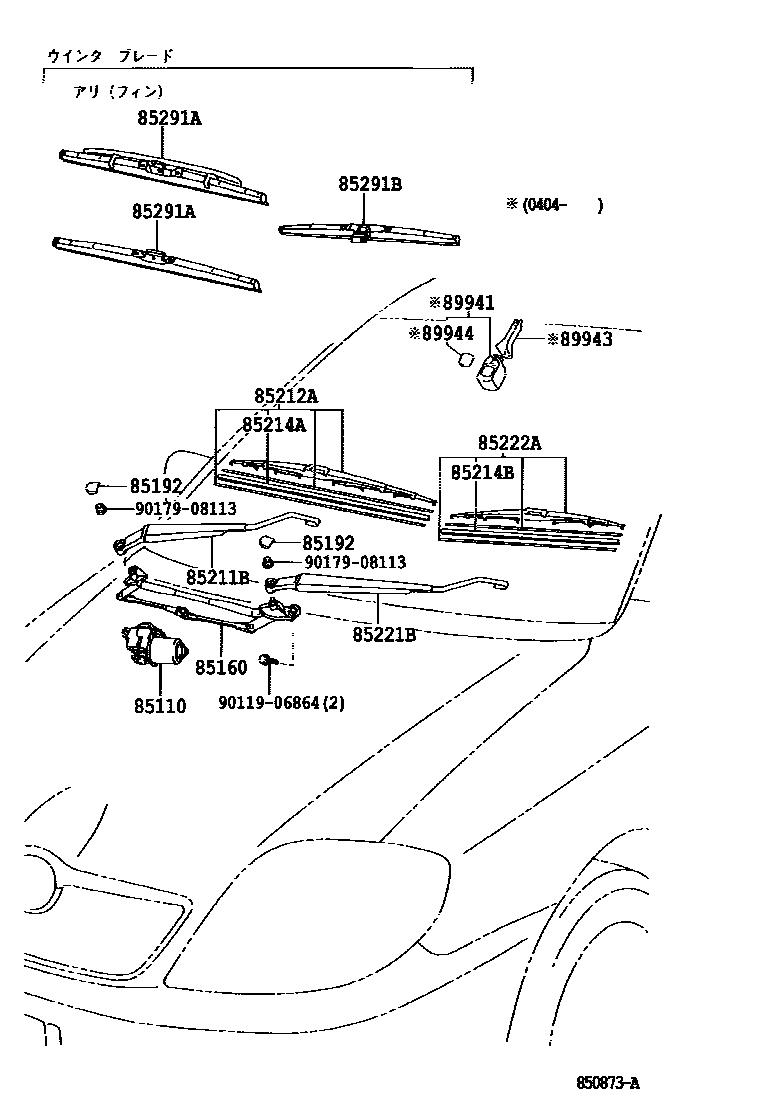

Toyota COROLLA RUNX/ALLEX — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A030i200101-200209

main85110-1A050i200209-200404

85160LINK ASSY, WINDSHIELD WIPER

main85150-1A020i200404-200609

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2i200404-200609

85211BARM, FRONT WIPER, RH

main85211-12370i200101-200209

main85211-12460i200404-200609

85212ABLADE, FR WIPER, RH

main85212-12350i200101-200209

main85212-30370i200404-200609

85214ARUBBER, WIPER, RH

main85214-50100i200310-200404

main85214-50120i200101-200209

85214BRUBBER, WIPER, LH

main85214-50060i200310-200404

main85214-50061i200608-200609

main85214-50130i200209-200310

85221BARM, FRONT WIPER, LH

main85221-12340i200209-200404

main85221-12400i200404-200609

85222ABLADE, FR WIPER, LH

main85222-12760i200101-200209

main85222-12800i200404-200607

main85222-12801i200608-200609

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090i200209-200404

main85291-24100i200209-200404

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-60070i200101-200209

89941SENSOR, RAIN

main89941-33010i200404-200609

89943COVER, RAIN SENSOR

main89943-12010i200404-200609

89944TAPE, RAIN SENSOR

main89944-33010i200404-200609

9011906864

main90119-06864

9017908113

main90179-08113

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA RUNX/ALLEX

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA RUNX/ALLEX. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
