Toyota COROLLA RUNX/ALLEX — SWITCH & RELAY & COMPUTER

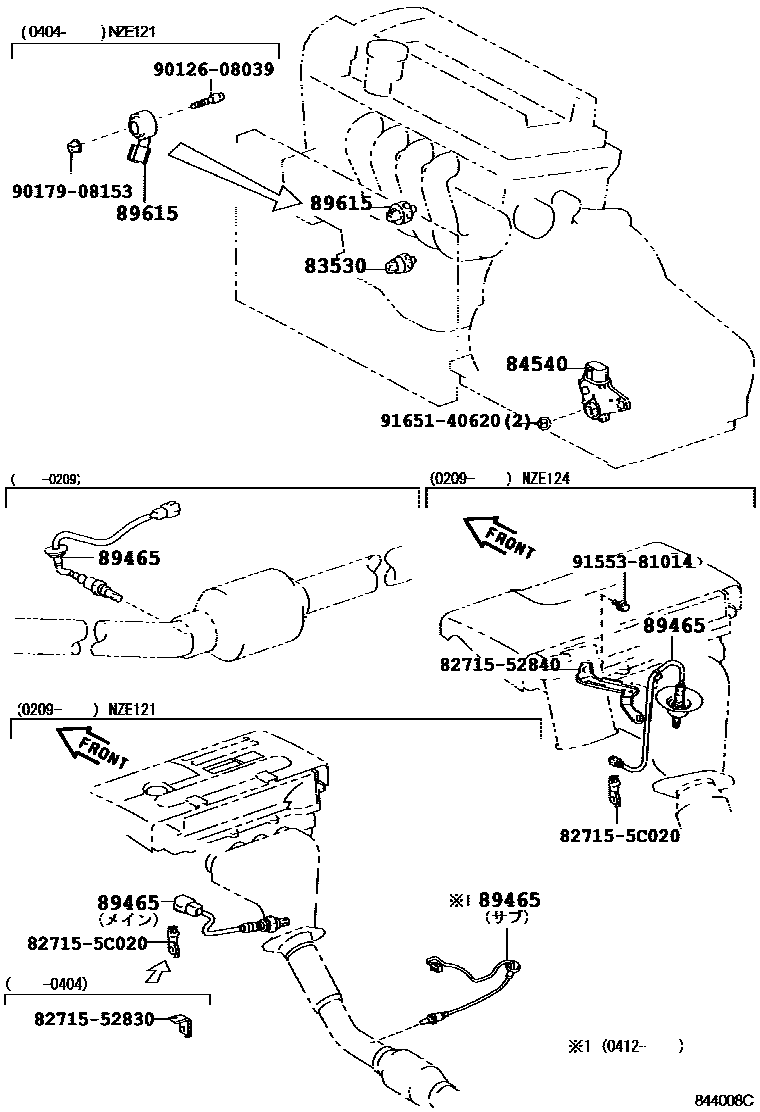

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200101-200209

main83530-60020i200209-200404

84540SWITCH ASSY, NEUTRAL START

main84540-32110i200209-200404

main84540-46010i200404-200609

main84540-48010i200404-200609

main84540-52010i200209-200404

main84540-52050i200209-200404

89465SENSOR, OXYGEN

main89465-12600i200101-200209

main89465-12610i200101-200209

main89465-12690i200404-200609

main89465-12710i200209-200404

main89465-12780i200412-200609

main89465-13030i200404-200609

main89465-20810i200404-200609

main89465-52210i200212-200404

main89465-52240i200209-200212

89615SENSOR, KNOCK CONTROL

main89615-12090i200404-200609

main89615-20090i200209-200404

main89615-52030i200309-200404

main89615-52040i200101-200209

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 10 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA RUNX/ALLEX

This section contains 126 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA RUNX/ALLEX. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
