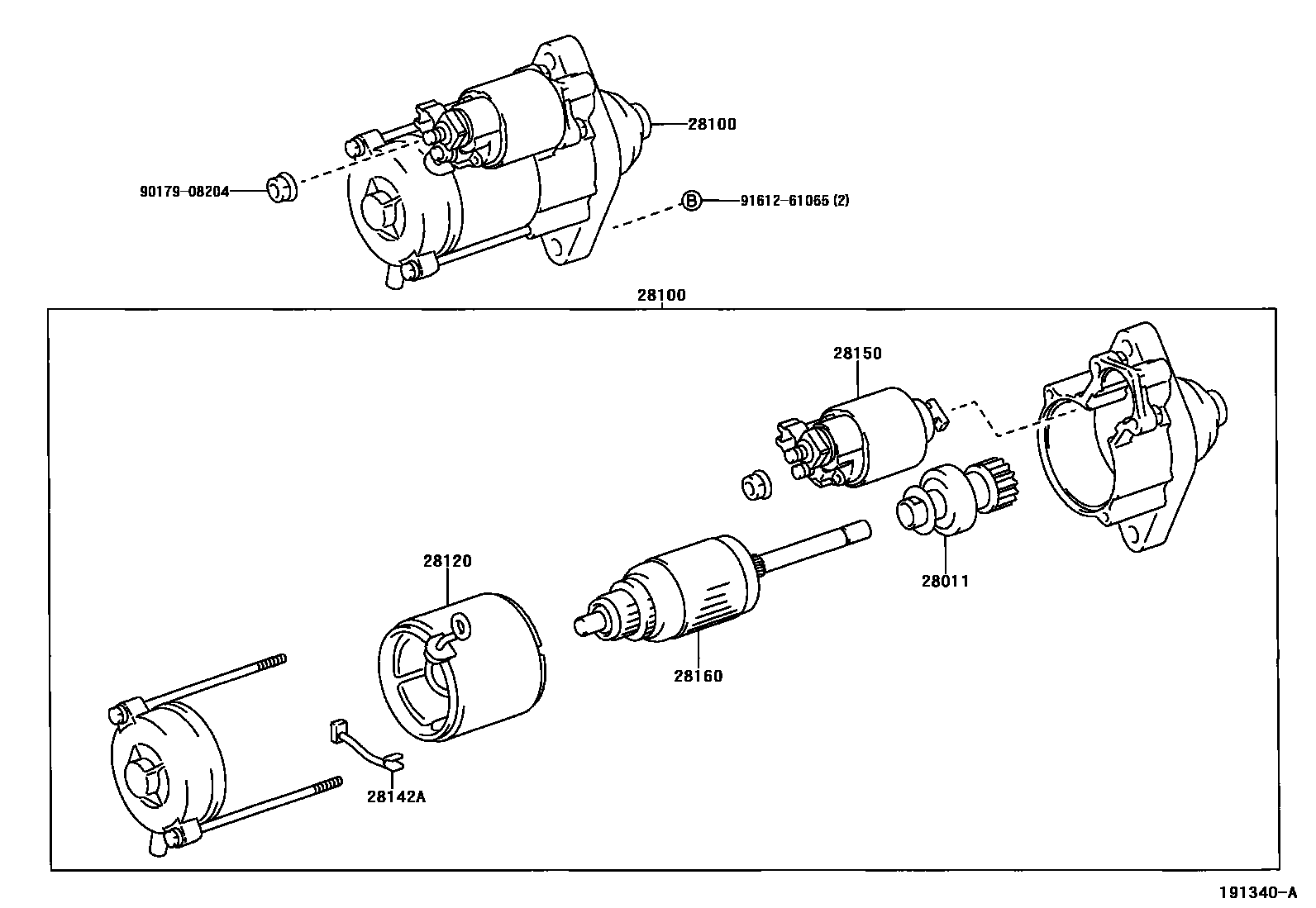

Toyota COROLLA RUNX/ALLEX — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-21050i200101-200208

12V 0.8KW

main28011-70020i200101-200209

12V 1.0KW

28100STARTER ASSY

main28100-21020i200209-200404

main28100-21030i200404-200609

main28100-21050i200101-200208

main28100-22030i200101-200209

main28100-22040i200101-200209

28120YOKE ASSY, STARTER

main28120-23020i200101-200208

12V 0.8KW

main28120-70020i200101-200209

12V 0.8KW

main28120-70050i200101-200209

12V 1.0KW

28142ASTARTER KIT

main28142-10020×4i200101-200208

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i200101-200209

main28150-70030i200209-200404

28160ARMATURE ASSY, STARTER

main28160-21050i200101-200208

12V 0.8KW

main28160-70021i200101-200209

12V 0.8KW

main28160-70050i200404-200609

12V 1.0KW

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 4 diagrams in section

STARTER for Toyota COROLLA RUNX/ALLEX

This section contains 9 genuine Toyota parts for the STARTER system of the Toyota COROLLA RUNX/ALLEX. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, STARTER KIT.
