Toyota COROLLA RUNX/ALLEX — PARTIAL ENGINE ASSEMBLY

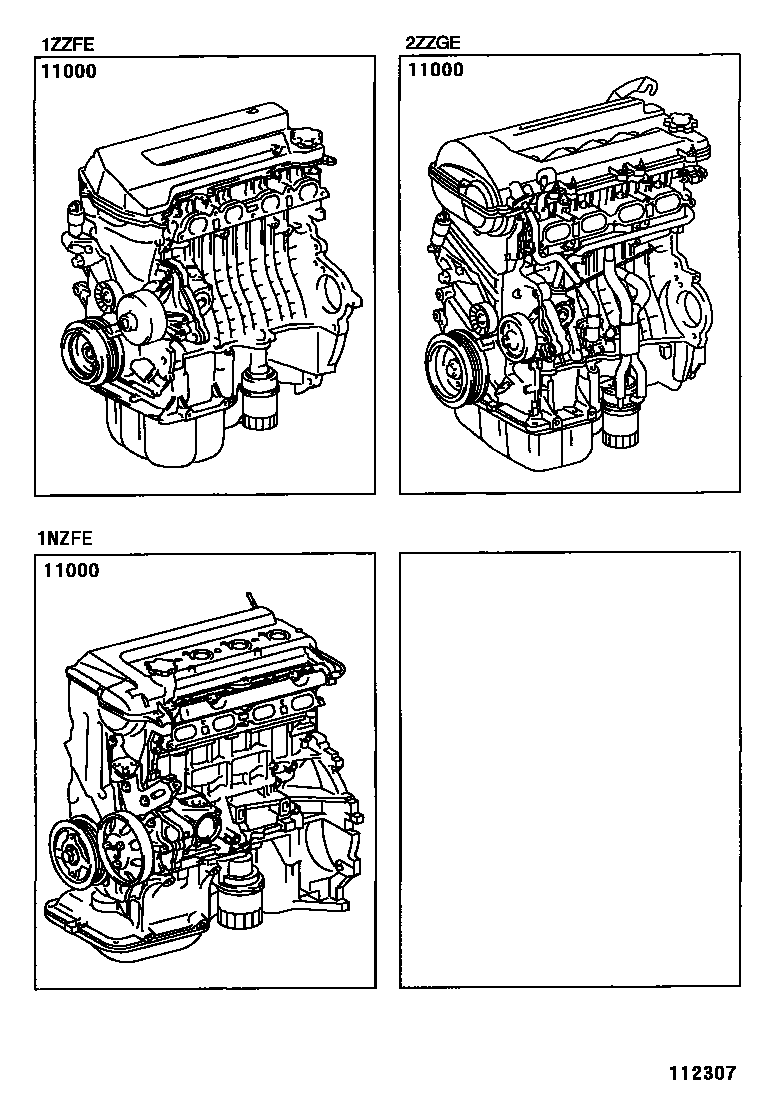

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21121i200101-200311
sub19000-21122
sub12204-21011
main19000-21122i200311-200404
main19000-21131i200101-200209
sub19000-21132
sub12204-21011
main19000-21200i200209-200609
sub19000-21631
sub12204-21011
main19000-21A20i200404-200609
sub19000-21C41
sub90919-01247
main19000-22310i200209-200609
sub19000-22311
sub16258-28030
sub16268-22101
main19000-22340i200209-200609
sub19000-22342
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22341i200301-200404
sub19000-22340
main19000-88704i200101-200303
sub19000-88716
sub17141-88601
sub17167-22110
sub17173-88601
main19000-88716i200303-200609

1 parts on this diagram · 1 diagram in section
