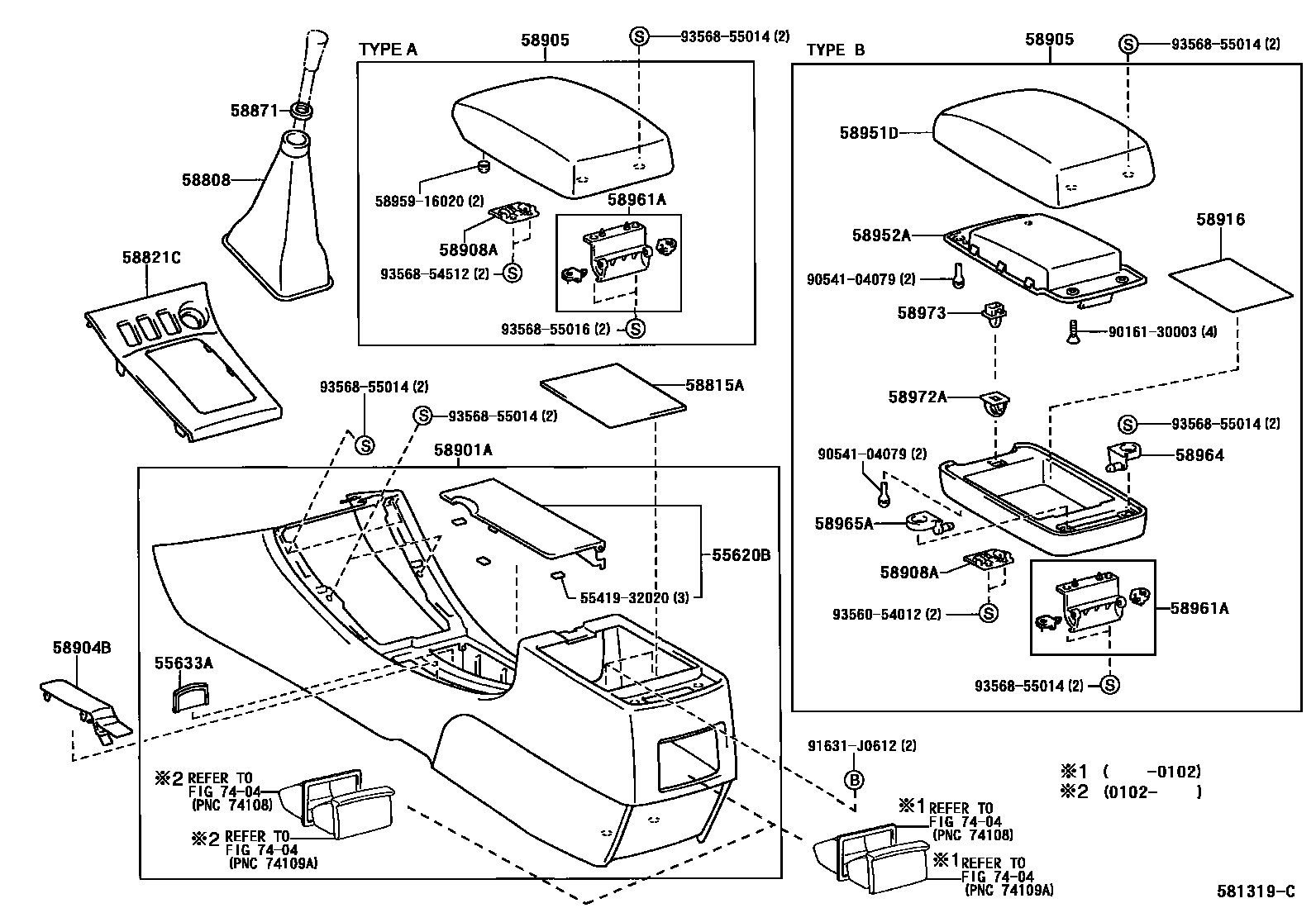

Toyota COROLLA RUNX/ALLEX — CONSOLE BOX & BRACKET
55620BHOLDER, INSTRUMENT PANEL CUP
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM16
MD.GRAY,TRIM14
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM16
MD.GRAY,TRIM14
58808COVER SUB-ASSY, SHIFTING HOLE
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
DARK GRAY,TRIM0#,1#; DARK GRAY,TRIM18
21SV26,TRIM0#,14,16
METALLIC BLACK,TRIM0#,1#
SILVER,TRIM18
GRAY,TRIM1#
LIGHT BROWN,TRIM0#
58871CUSHION, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
IVORY,TRIM0#
DK.GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM16
MD.GRAY,TRIM14
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM16
MD.GRAY,TRIM14
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58951DDOOR, CONSOLE COMPARTMENT, OUTER
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
DK.GRAY,TRIM1#; DK.GRAY,TRIM16
IVORY,TRIM0#
58952ADOOR, CONSOLE COMPARTMENT, INNER
IVORY,TRIM0#
DK.GRAY,TRIM1#
MD.GRAY,TRIM14
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
7404ASH RECEPTACLE
5541932020PLATE, SAFETY PAD
main55419-32020
5895916020ROD, REAR LOCK, HANDLE LATCH
main58959-16020
9016130003
main90161-30003
9054104079
main90541-04079
91631J0612
main91631-J0612
9356054012
main93560-54012
9356854512
main93568-54512
9356855014
main93568-55014
9356855016
main93568-55016
28 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota COROLLA RUNX/ALLEX
This section contains 28 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA RUNX/ALLEX. Key components include: HOLDER, INSTRUMENT PANEL CUP, SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER.
