Toyota COROLLA RUMION — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52270supersedes 85110-52261i200710-200801

main85110-60370supersedes 85110-52261i200802-200912

85160LINK ASSY, WINDSHIELD WIPER

main85150-12B00i200912

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200710-200912

85211BARM, FRONT WIPER, RH

main85211-12590i200710-200912

85212ABLADE, FR WIPER, RH

main85212-12460i200710-200912

85214ARUBBER, WIPER, RH

main85214-53080i200710-200912

85214BRUBBER, WIPER, LH

main85214-53090i200710-200912

85221BARM, FRONT WIPER, LH

main85221-12530i200710-200912

85222ABLADE, FR WIPER, LH

main85222-12880i200710-200912

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-35060i200710-200912

main85291-53050i200912

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060i200912

9011906864

main90119-06864

9018210006

main90182-10006

13 parts on this diagram · 1 diagram in section

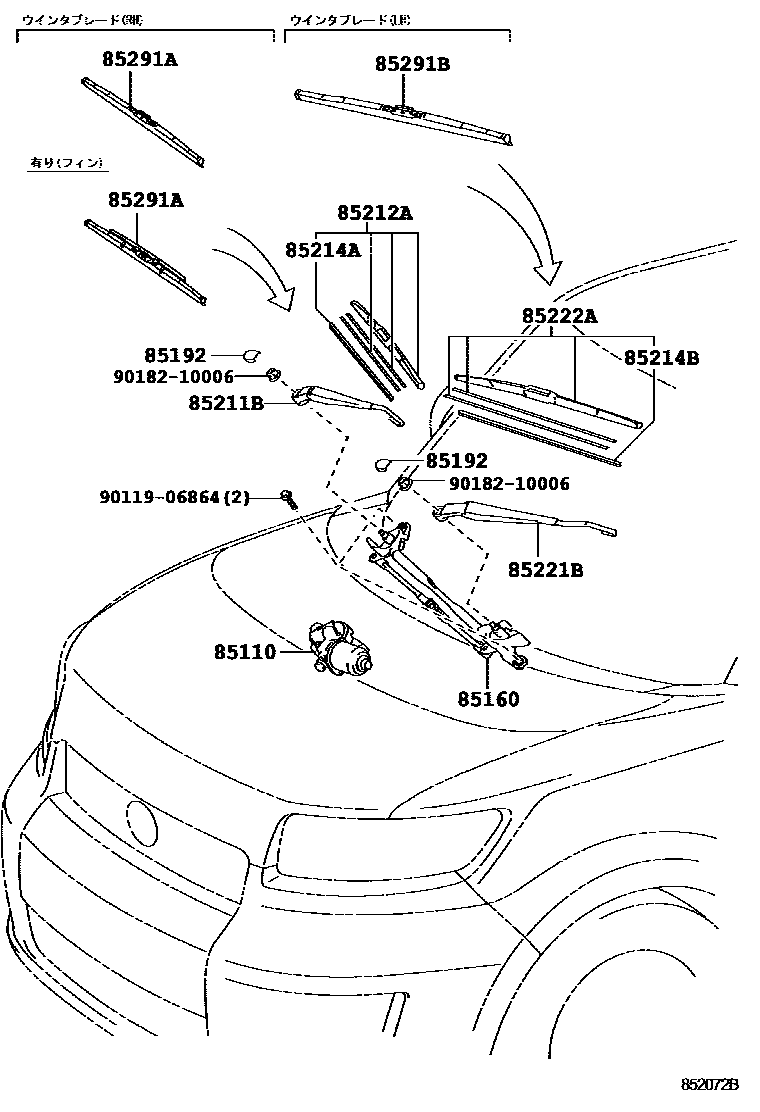

WINDSHIELD WIPER for Toyota COROLLA RUMION

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA RUMION. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
