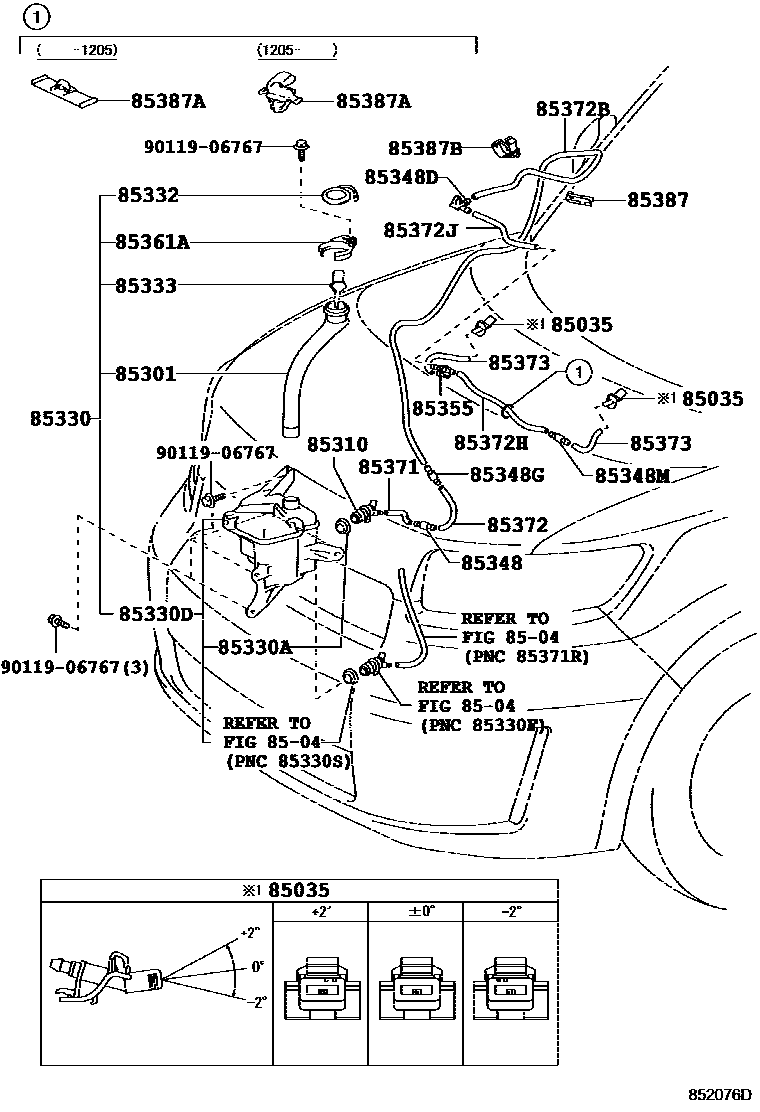

Toyota COROLLA RUMION — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200710-200912

main85381-12310×2i200710-200912

main85381-12320×2i200710-200912

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85319-12630i200710-200912

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200710-200912

85330JAR ASSY, WINDSHIELD WASHER

main85315-12620i200710-200912

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200710-200912

85330DJAR ASSY, WASHER

main85315-12530i200710-200912

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200710-200912

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i200710-200912

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200710-200912

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-10250i200710-200912

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200912

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200710-200912

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200710-200912

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060i200710-200912

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200710-200912

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200710-200912

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200710-200912

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200710-200912

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i200710-200912

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200710-200912

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840i200710-200912

85387ACLAMP, WASHER, NO.2

main82711-1E020i200710-200912

main85371-12040i201205

85387BCLAMP, WASHER, NO.3

main82711-3F230i200710-200912

9011906767

main90119-06767

25 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA RUMION

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA RUMION. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
