Toyota COROLLA RUMION — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1�������� 0006 1�������� �������� 0007 1��� 0008 1������������ 0009 1������� 0010 1���,���,��� & �������

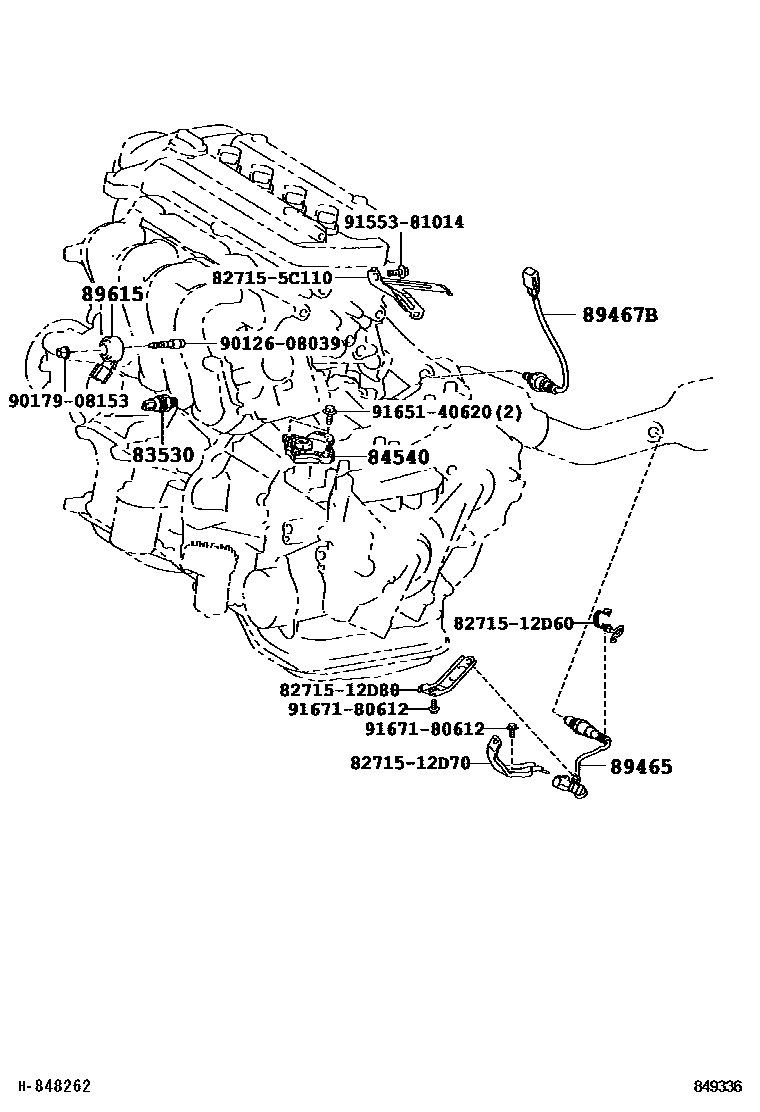

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE15#..CBU201310-201402

sub83530-12060

main83530-28020iNZE151..CBU200912-201512

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNZE151,ZRE15#200710-200912

89465SENSOR, OXYGEN

main89465-12790iNZE151..CBU200912-201301

main89465-12800iZRE152200710-200912

main89465-12810iZRE154200710-200912

main89465-12A40iZRE152..CBU201301-201512

main89465-12B00iNZE151..CBU201301-201512

main89465-12B30iZRE154..CBU201301-201512

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRE152200710-200912

main89467-12110iZRE154..CBU200912-201301

main89467-12120iNZE151..CBU200912-201301

main89467-12150iNZE151200710-200912

main89467-12160iNZE151..CBU201301-201512

main89467-12250iZRE154..CBU201301-201512

main89467-52060iZRE152..CBU201301-201512

89615SENSOR, KNOCK CONTROL

main89615-20090iNZE151,ZRE15#200710-200912

8271512D60BRACKET,WIRING HARNESS CLAMP

main82715-12D60

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271512D80BRACKET,WIRING HARNESS CLAMP

main82715-12D80

827155C110BRACKET,WIRING HARNESS CLAMP

main82715-5C110

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

9167180612

main91671-80612

14 parts on this diagram · 10 diagrams in section
