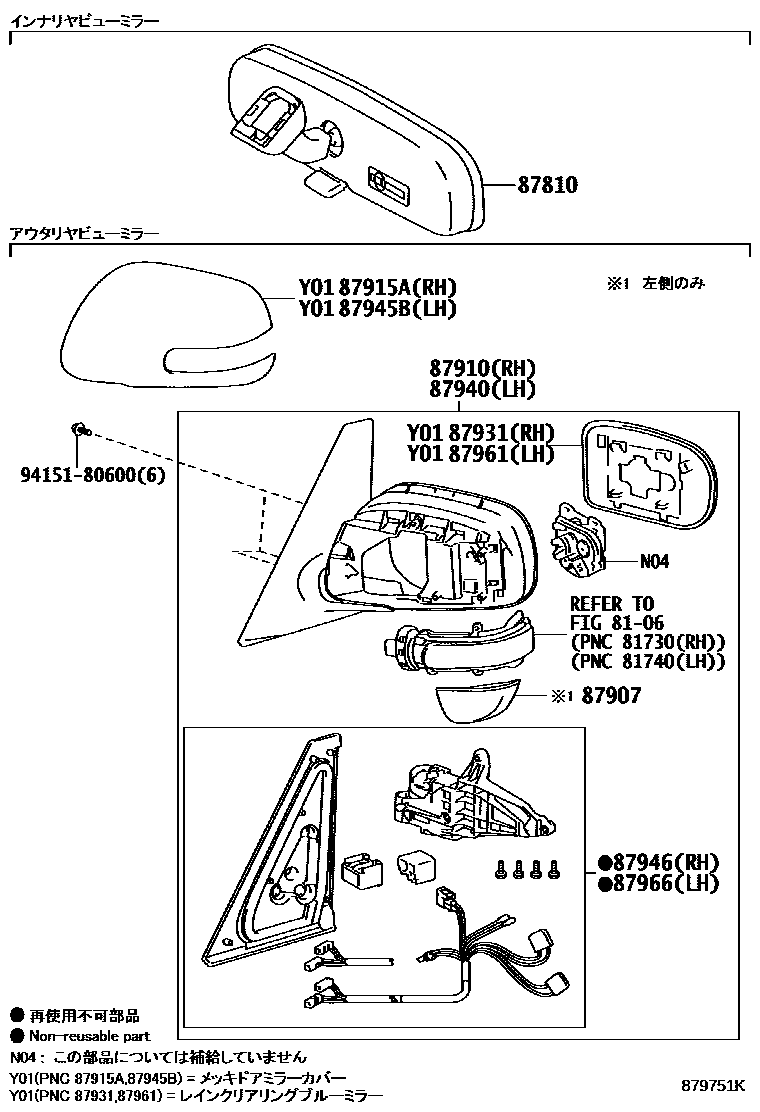

Toyota COROLLA RUMION — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
GINGER RED M.M.,3R6
DK.BLUE MC.,8S6
BLUE ME.,8T4
COOL SODA ME.,8V7
DK.VIOLET M.M.,9AF
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
SUPER RED 5,3P0
GINGER RED M.M.,3R6
DK.BLUE MC.,8S6
BLUE ME.,8T4
COOL SODA ME.,8V7
DK.VIOLET M.M.,9AF
DEEP AMETHYST M.M.,9AH
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9415180600
main94151-80600
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA RUMION
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA RUMION. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER UNDER VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
