Toyota COROLLA RUMION — METER

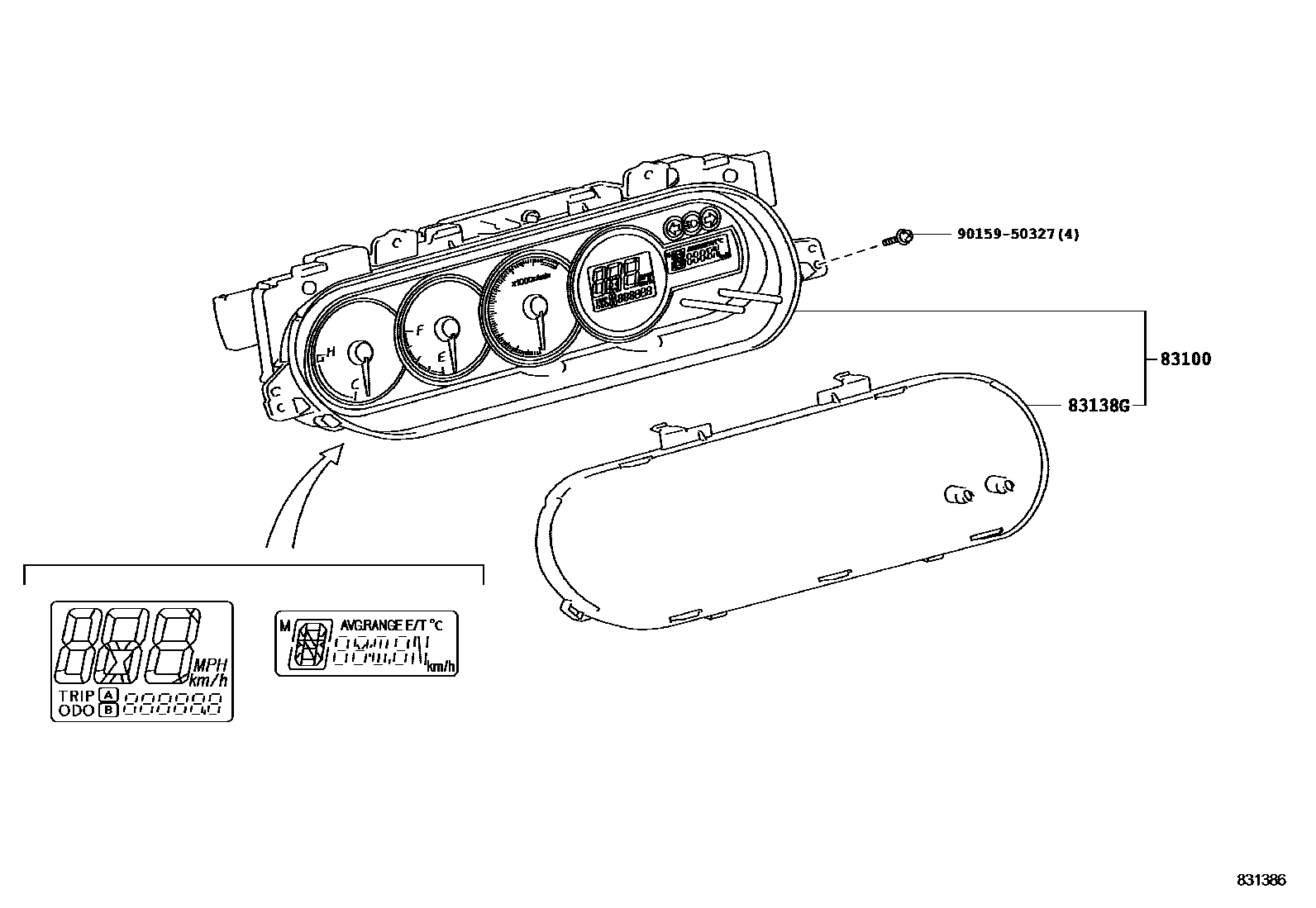

Parts diagram

83100METER ASSY, COMBINATION

main83800-12L80i200710-200912

main83800-12Q10i200912-201301

main83800-12Q60i200912-201301

main83800-12X60i201301

main83800-12M00supersedes 83800-12N80i200710-200912

main83800-12P00supersedes 83800-12L90i200805-200808

main83800-12P10i200805-200808

main83800-12P20i200805-200808

main83800-12Q30i200912-201301

main83800-12Q50i200912-201301

main83800-12X20i201106-201205

main83800-12X30i201106-201205

main83800-12X80supersedes 83800-12X90i201301

main83800-12Y30supersedes 83800-12X90i201301

main83800-12Y40supersedes 83800-12X70i201301

83138GGLASS, COMBINATION METER

main83852-12L80i200710-200912

main83852-12X30i201205

9015950327

main90159-50327

3 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA RUMION

This section contains 3 genuine Toyota parts for the METER system of the Toyota COROLLA RUMION. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
