Toyota COROLLA RUMION — CONSOLE BOX & BRACKET

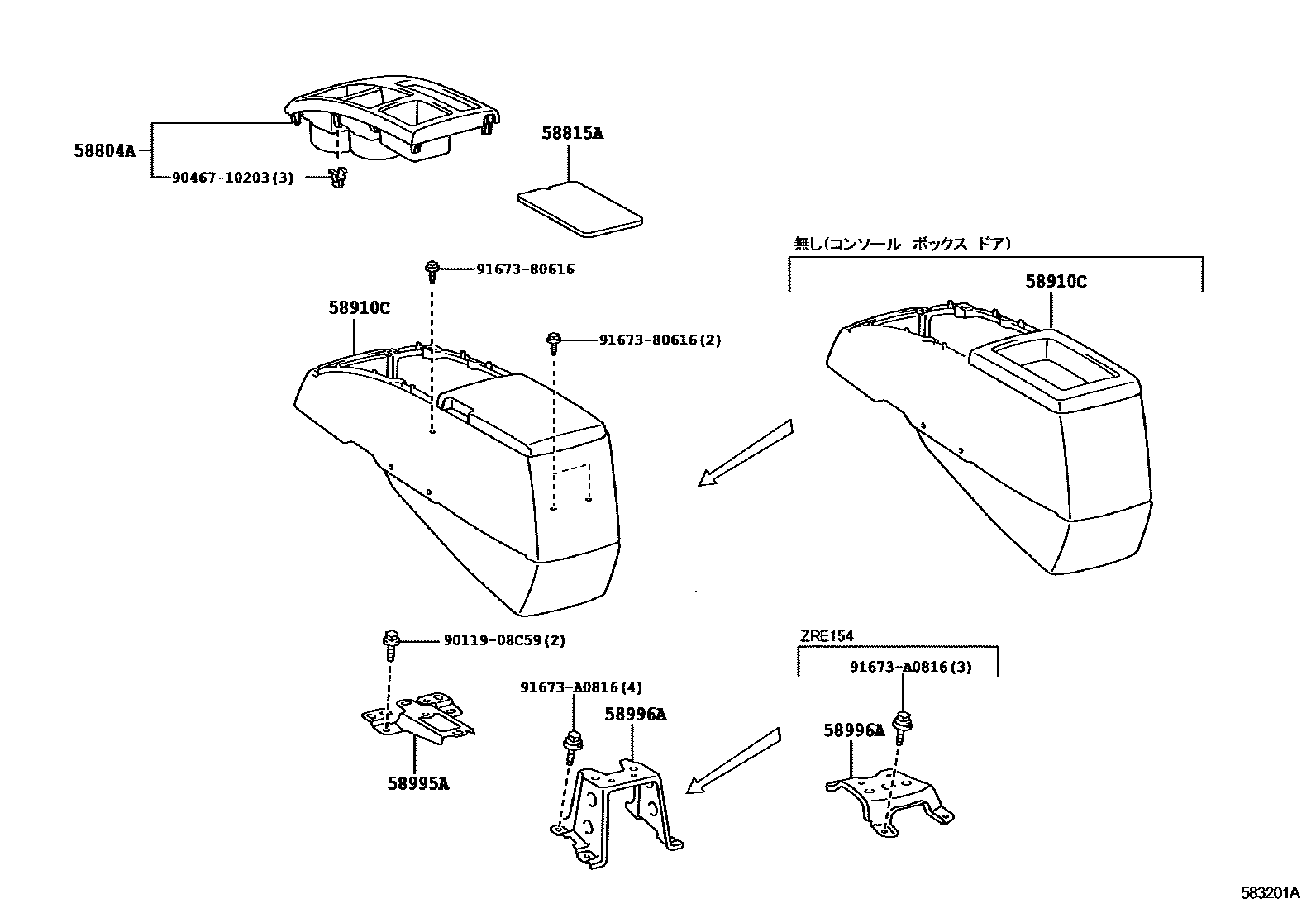

Parts diagram

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12090-B0i200710-200805

DK.GRAY,TRIM1#

main58804-12091-B0i200805-201512

DK.GRAY,TRIM1#

main58804-12091-B0i200912-201512

main58804-12091-B0i200912-201512

main58804-12100-B0i200912-201512

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-12170i200710-200912

main58815-12170i200912

main58815-12170i200912

58910CBOX ASSY, CONSOLE, REAR

main58910-12570-B0i200710-201512

DK.GRAY,TRIM1#

main58910-12570-B0i200912-201512

main58910-12570-B0i200912-201512

main58910-12580-B0i200710-200912

DK.GRAY,TRIM1#

main58910-12590-B0i200710-200912

DK.GRAY,TRIM1#

main58910-12680-B0i201108-201512

DK.GRAY,TRIM1#

main58910-12690-B0i201108-201512

DK.GRAY,TRIM1#

main58910-12800-B0i200912-201301

DK.GRAY,TRIM1#

main58910-12820-B0i200912-201107

DK.GRAY,TRIM1#

main58910-12830-B0i200912-201107

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12110i200710-200912

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12180i200912

main58996-12180i200710-200912

main58996-12180i200912

main58996-12190i200710-201301

main58996-12210i200912

main58996-12220i200912

9011908C59

main90119-08C59

9046710203

main90467-10203

9167380616

main91673-80616

91673A0816

main91673-A0816

9 parts on this diagram · 3 diagrams in section

CONSOLE BOX & BRACKET for Toyota COROLLA RUMION

This section contains 20 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA RUMION. Key components include: COVER, SPARE SWITCH HOLE, REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5, PANEL SUB-ASSY, CONSOLE, UPPER, CLIP(FOR CONSOLE BOX), CARPET, CONSOLE BOX.
