Toyota COROLLA RUMION — ARMREST & VISOR

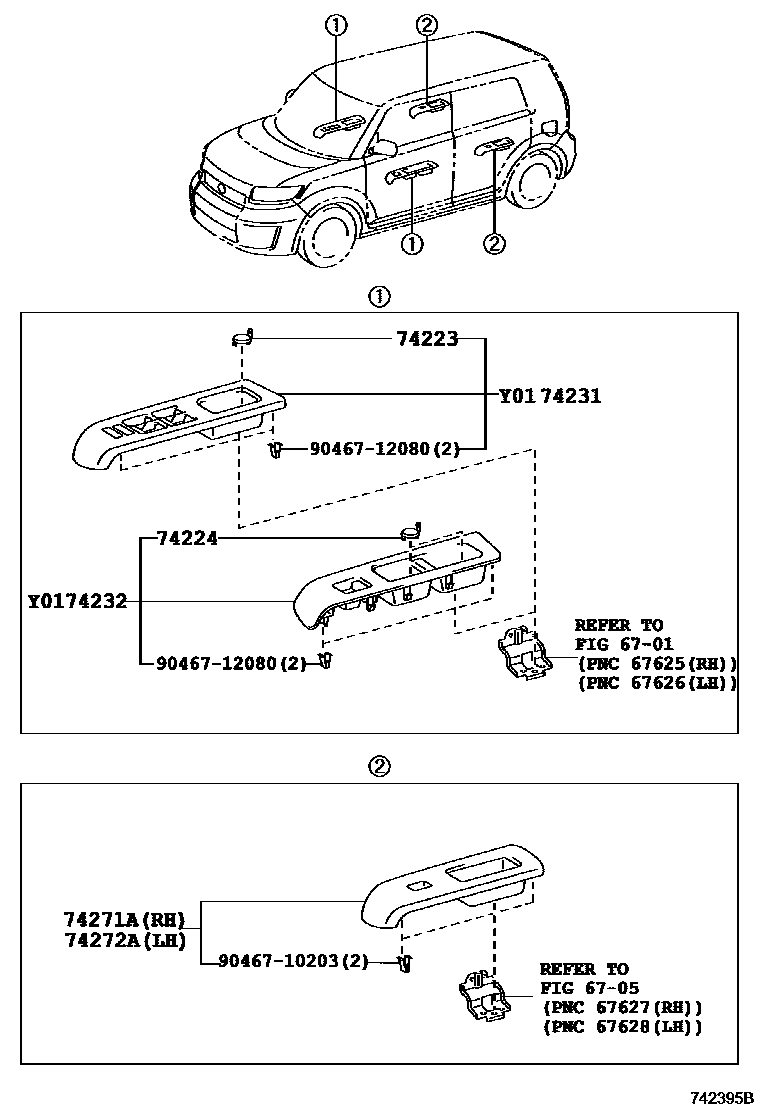

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

74223CAP, DOOR ARMREST, RH

main74223-12130-B0i200710-200912

DK.GRAY,TRIM1#

main74223-12130-B2i200710-200912

LT.GRAY,TRIM1#

74224CAP, DOOR ARMREST, LH

main74223-12130-B0×2i200710-200912

DK.GRAY,TRIM1#

main74223-12130-B2×2i200912-201512

LT.GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12A50i200710-200912

main74231-12A70i200710-200912

main74231-12B90-B1i200912-201512

SILVER/LT.GRAY,TRIM1#

main74231-12B20i200805-200808

main74231-12C00-C0i200912-201512

main74231-12E40-C0i201106-201205

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12740i200710-200912

main74232-12760i200710-200912

main74232-12870-B1i200912-201512

SILVER/LT.GRAY,TRIM1#

main74232-12810i200805-200808

main74232-12880-C0i200912-201512

main74232-12C10-C0i201205-201512

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12320i200710-200912

main74271-12330i200710-200912

main74271-12400-B0i200912-201512

SILVER,TRIM1#

main74271-12380i200805-200808

main74271-12410-C0i200912-201512

main74271-12530-C0i201106-201205

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12320i200710-200912

main74272-12330i200710-200912

main74272-12410-B0i200912-201512

SILVER,TRIM1#

main74272-12380i200805-200808

main74272-12420-C0i200912-201512

main74272-12560-C0i201106-201205

9046710203

main90467-10203

9046712080

main90467-12080

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA RUMION

This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA RUMION. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH.

Toyota COROLLA RUMION ARMREST & VISOR — Parts Diagram | EPC Data
