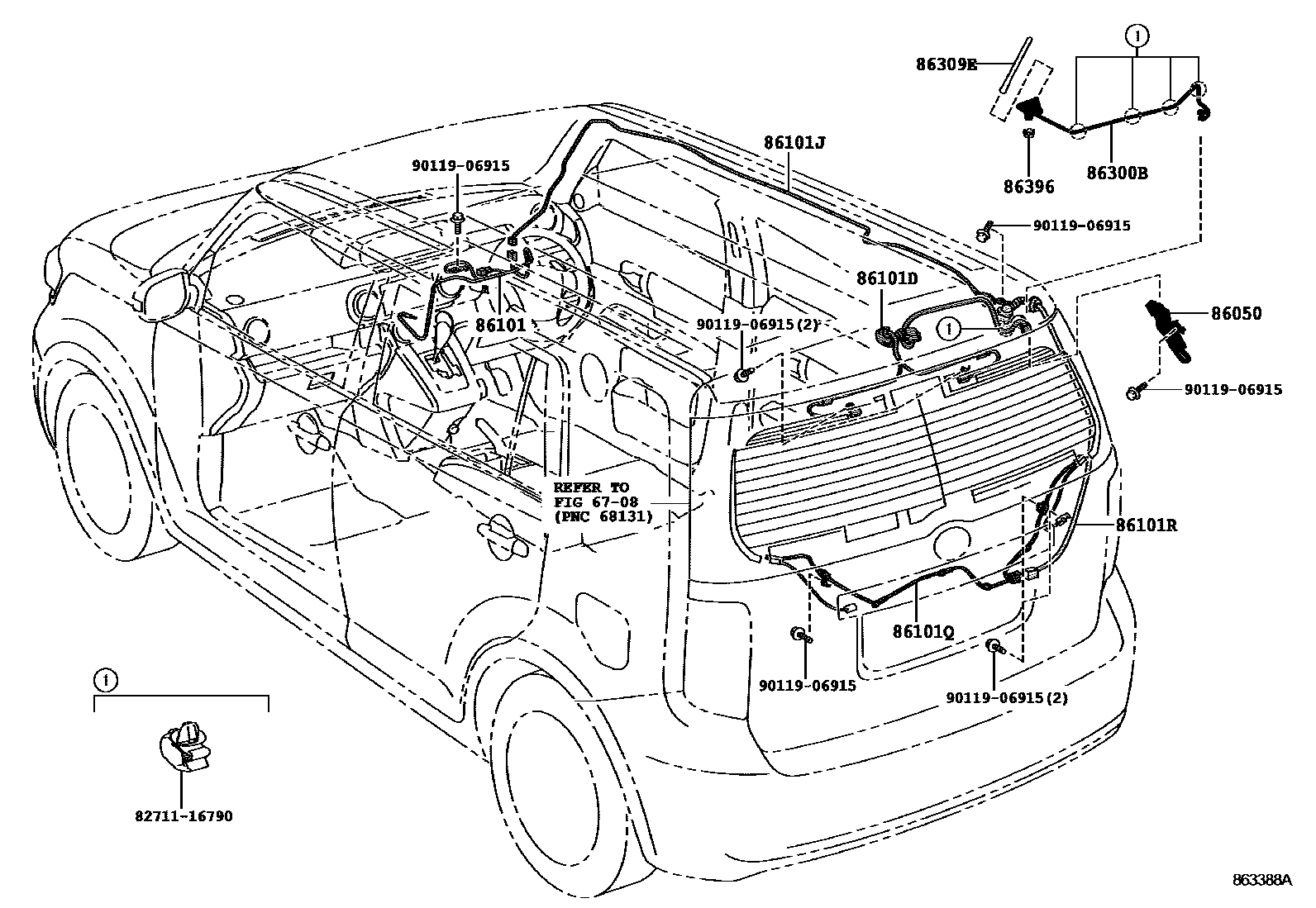

Toyota COROLLA RUMION — ANTENNA

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

86050ANTENNA ASSY, TELEVISION

main86050-12070i200710-200912

86101CORD SUB-ASSY, ANTENNA

main86101-12720i200912

main86101-12730i200710-200912

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-12670i200710-200912

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12700i200710-200912

main86101-12710i200710-200912

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-12680i200710-200912

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-12690i200710-200912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12A10i200710-200912

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310i200710-200912

86396NUT, ANTENNA

main86396-20040i200710-200912

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906915

main90119-06915

12 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA RUMION

This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA RUMION. Key components include: BACK DOOR PANEL & GLASS, ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2.
