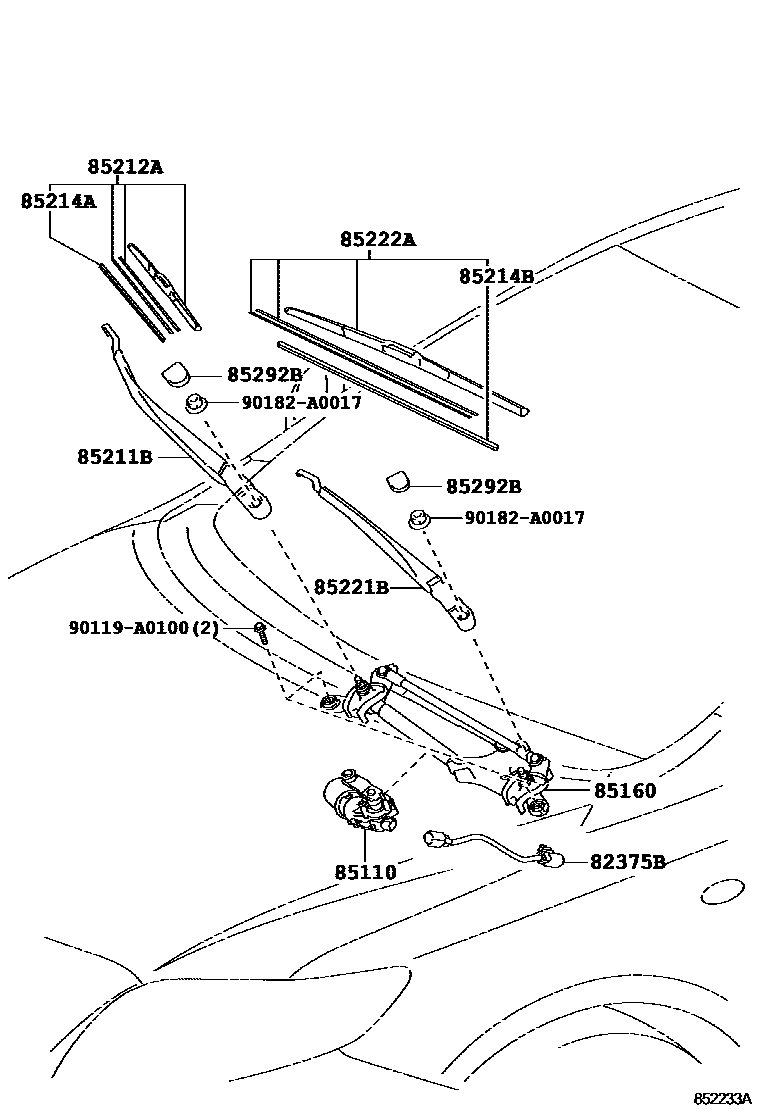

Toyota COROLLA NAP — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12310i200801-200905

main82375-12311i200906-201012

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02270i200801-200902

main85110-02271i200903-201012

85160LINK ASSY, WINDSHIELD WIPER

main85150-02240i200801-201012

85211BARM, FRONT WIPER, RH

main85211-02260i200801-201012

85212ABLADE, FR WIPER, RH

main85212-02230i201012

main85212-28170i200801-201011

85214ARUBBER, WIPER, RH

main85214-28090i200801-201012

85214BRUBBER, WIPER, LH

main85214-68020i200801-201012

85221BARM, FRONT WIPER, LH

main85221-02270i200801-201012

85222ABLADE, FR WIPER, LH

main85222-02250i201012

main85222-12830i200801-201011

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2i200801-201012

90119A0100

main90119-A0100

90182A0017

main90182-A0017

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA NAP

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA NAP. Key components include: WIRE, WIPER MOTOR, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
