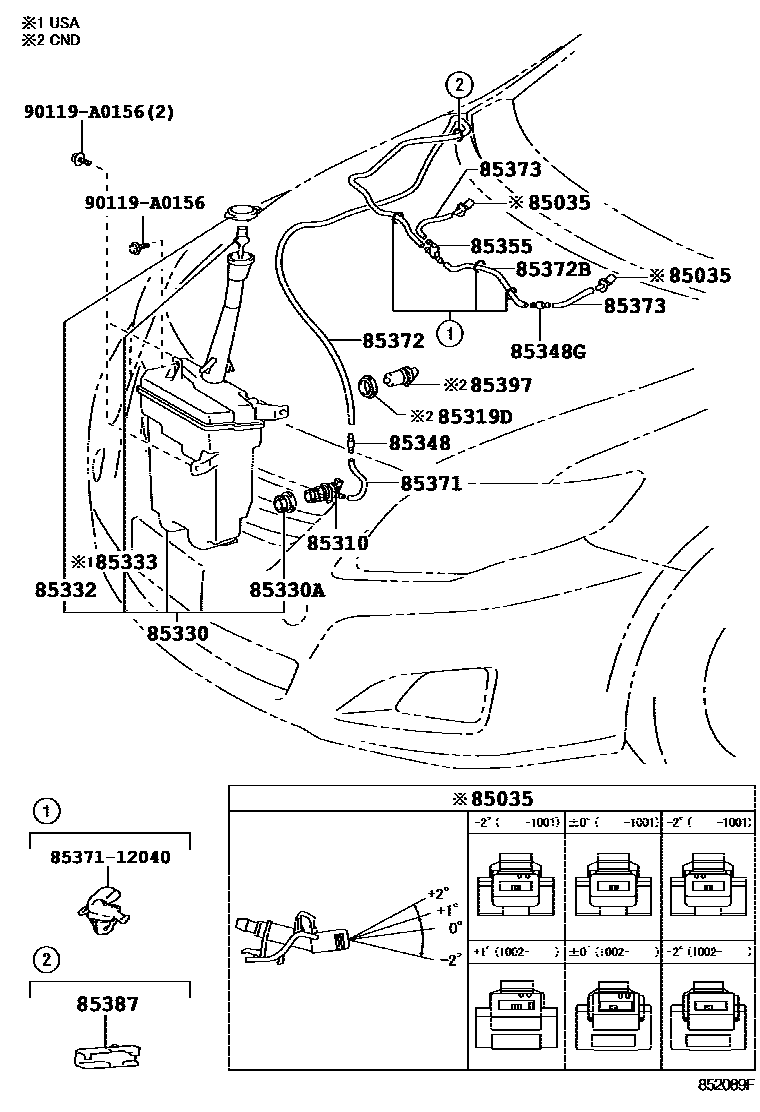

Toyota COROLLA NAP — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200801-201001

ANGLE 0

main85381-12310×2i200801-201001

ANGLE -2

main85381-12320×2i200801-201001

ANGLE +2

main85381-12350×2i201012

ANGLE +1

main85381-30110×2i201002-201012

ANGLE -2

main85381-30150×2i201012

ANGLE +2,ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200801-201012

85319DPACKING, FRONT WASHER

main85319-AA020i201012

85330JAR ASSY, WINDSHIELD WASHER

main85315-02320i201012

main85315-02330i200801-201012

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200801-201012

85332CAP, WINDSHIELD WASHER JAR

main85316-02300i201012

main85386-0C010i201012

85333FILTER, WINDSHIELD WASHER JAR

main85312-02030i200801-201012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-02300i200801-201012

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-02300i200801-201012

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200801-201012

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33032i200801-201012

L=80

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33072i200801-201012

L=1930

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33068i200801-201012

L=510

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-45004×2i200801-201012

L=190

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-02260i200801-201012

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i200801-201012

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

90119A0156

main90119-A0156

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA NAP

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA NAP. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
