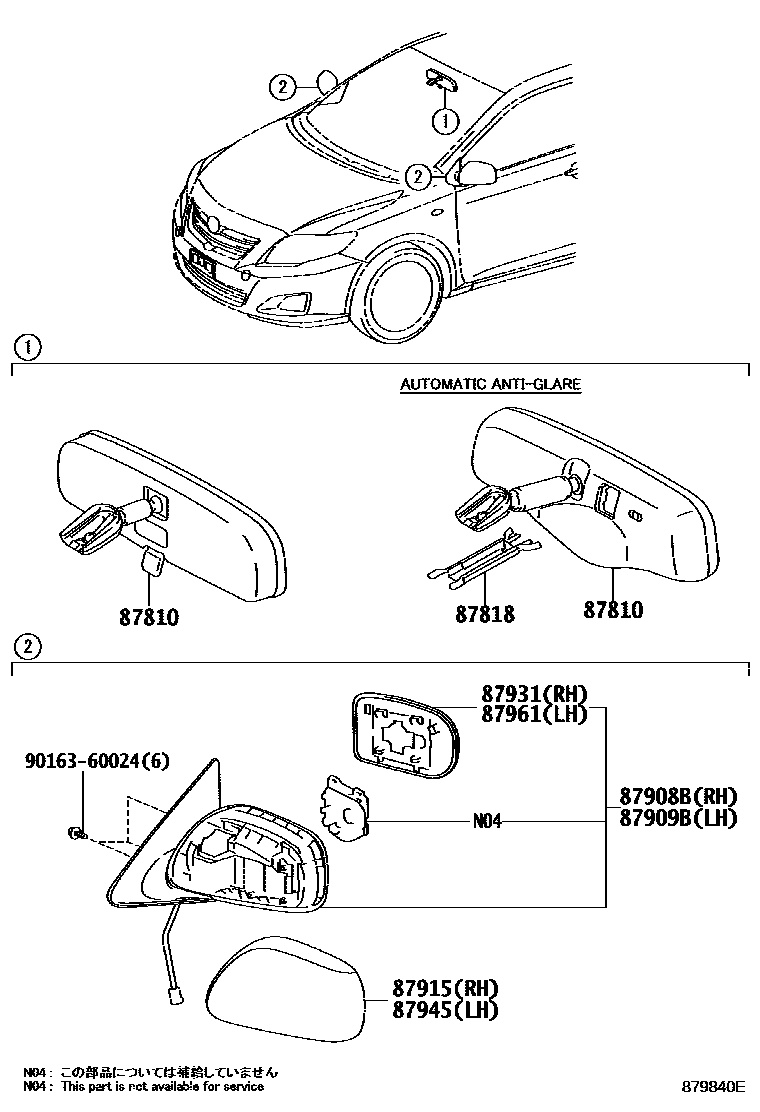

Toyota COROLLA NAP — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
87818COVER, INNER RR VIEW MIRROR
87908BMIRROR SUB-ASSY, RH
main87908-02B01supersedes 87908-02B50iAZE141,ZRE142..NAP..CND; ZRE142..NAP..4FC..STD;AZE141,ZRE142..NAP..(LE,S,XRS)..USA; ZRE142..NAP..STD200801-201012
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
HAWAII SPEC; PUERTO RICO SPEC
87909BMIRROR SUB-ASSY, LH
main87909-02A81supersedes 87909-02B40iAZE141,ZRE142..NAP..CND; ZRE142..NAP..4FC..STD;AZE141,ZRE142..NAP..(LE,S,XRS)..USA; ZRE142..NAP..STD200801-201012
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH,SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,GRAY ME.,1G3
BLACK MC.,209; WIRELESS DOOR LOCK-WITH,BLACK MC.,209
RED M.M.,3R3; WIRELESS DOOR LOCK-WITH,RED M.M.,3R3
BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,BEIGE M. M.,4Q2
BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH,BEIGE ME.,4T8
ORANGE ME.,4R8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE M.M.,779; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,TURQUOISE M.M.,779; TURQUOISE M.M.,779
BLUE ME.,8T7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,BLUE ME.,8T7
DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH,DK.BLUE MC.,8S6
main87915-02230-J3iZRE142..NAP..4FC..S..USA;AZE141,ZRE142..NAP..(CE,LE,XRS); ZRE142..NAP..STD201012-201308
BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH,BLUE ME.,8U6
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87945COVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SUPER WHITE 2,040; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SUPER WHITE 2,040; SUPER WHITE 2,040
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),SILVER ME.,1F7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,GRAY ME.,1G3
BLACK MC.,209; WIRELESS DOOR LOCK-WITH,BLACK MC.,209
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),RED M.M.,3R3; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,RED M.M.,3R3; RED M.M.,3R3
BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BEIGE M. M.,4Q2; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,BEIGE M. M.,4Q2
BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH,BEIGE ME.,4T8
ORANGE ME.,4R8
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),TURQUOISE M.M.,779; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,TURQUOISE M.M.,779; TURQUOISE M.M.,779
BLUE ME.,8T7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED),BLUE ME.,8T7; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER,BLUE ME.,8T7
DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH,DK.BLUE MC.,8S6
main87945-02220-J3iZRE142..NAP..4FC..S..USA;AZE141,ZRE142..NAP..(CE,LE,XRS); ZRE142..NAP..STD201012-201308
BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH,BLUE ME.,8U6
DEEP AMETHYST M.M.,9AH
87961MIRROR OUTER, LH
HAWAII SPEC; PUERTO RICO SPEC
main87961-02A80supersedes 87961-02870iAZE141,ZRE142..NAP..CND; ZRE142..NAP..4FC..STD;AZE141,ZRE142..NAP..(LE,S,XRS)..USA; ZRE142..NAP..STD200801-201012
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER; OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA NAP
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota COROLLA NAP. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH, COVER, OUTER MIRROR, RH.
